Kitchen Fume & Oil Smoke Control
Overview Cabinet centrifugal fan for commercial-kitchen fume exhaust and ventilation. Typical Applications Typical applications include commercial-kitchen fume exhaust and ventilation. Selection Notes Confirm the exhaust duty,…
Overview

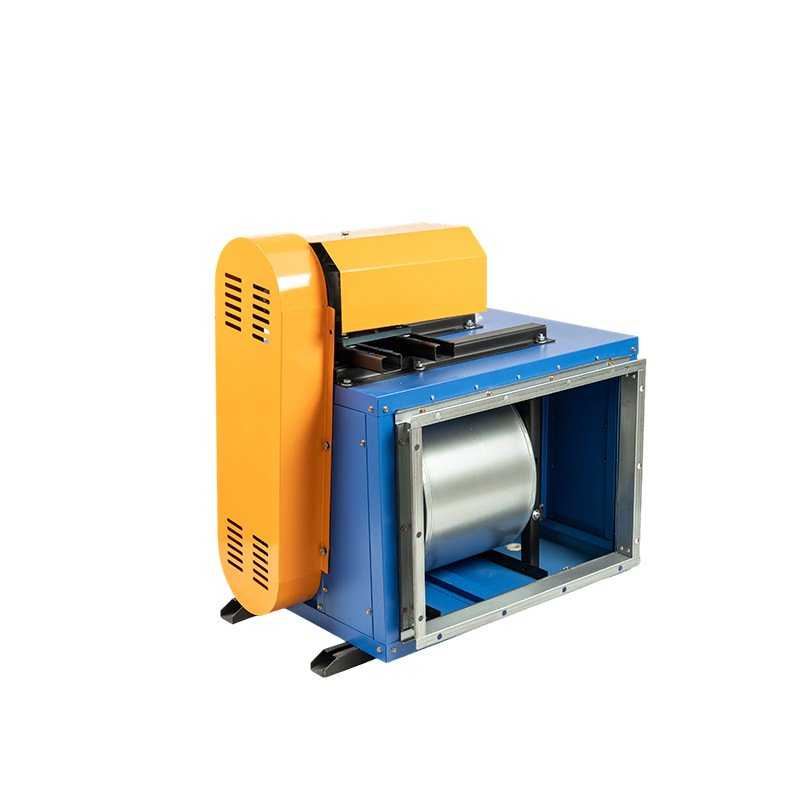

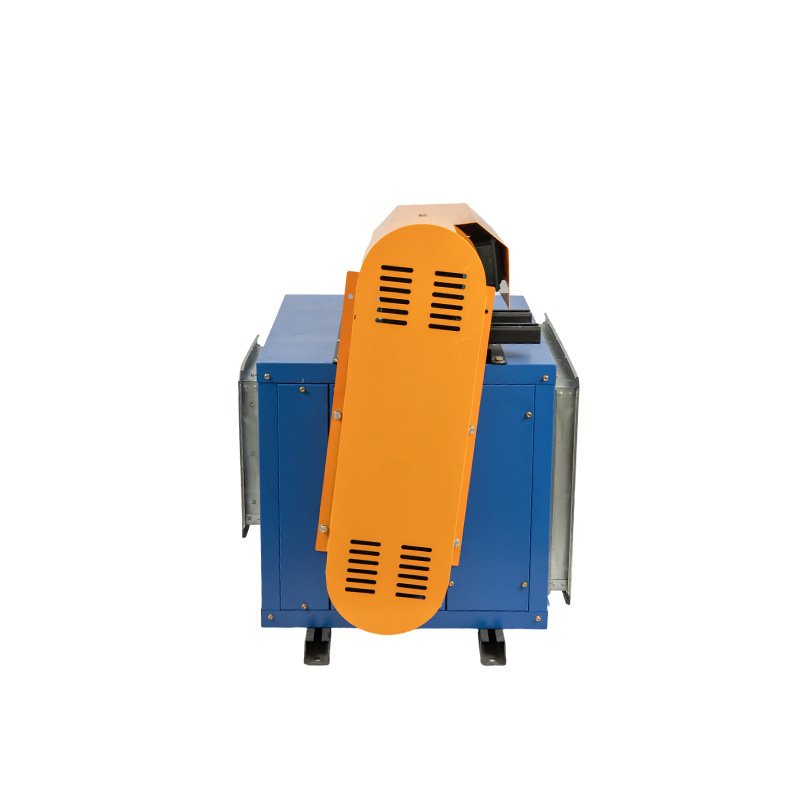

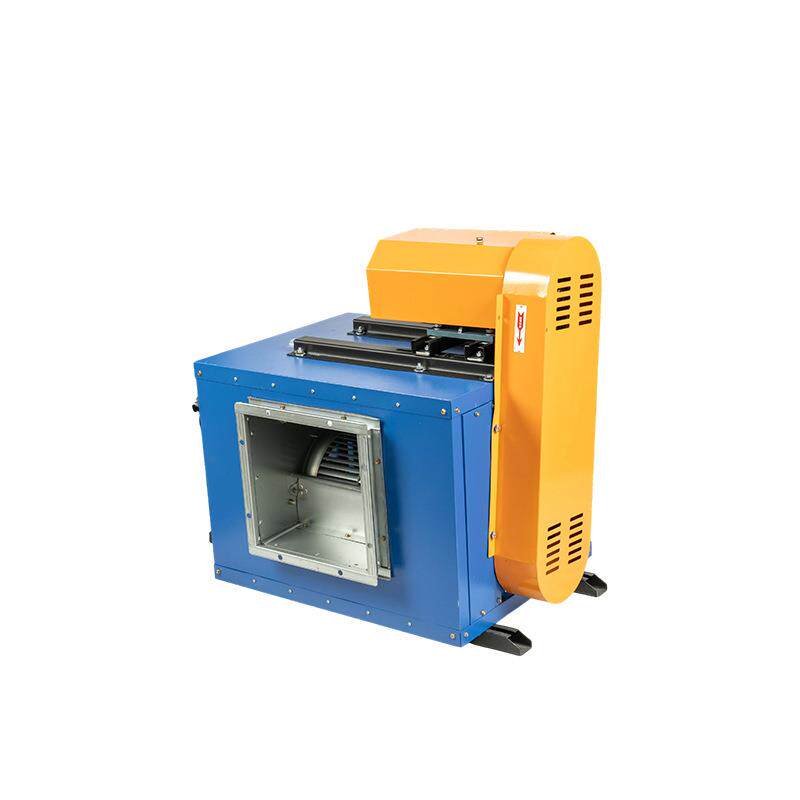

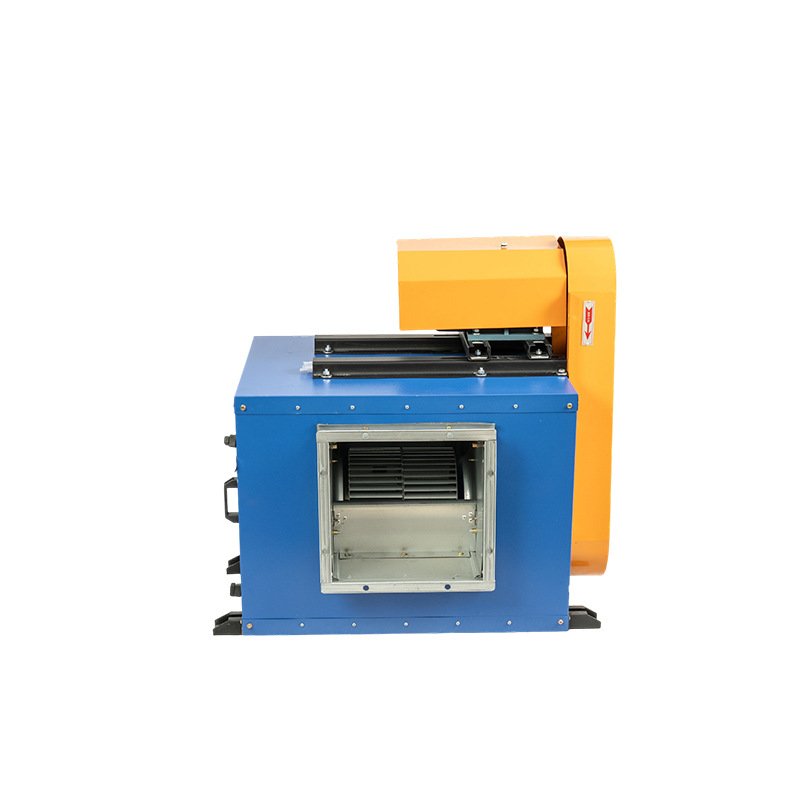

Overview Cabinet centrifugal fan for commercial-kitchen fume exhaust and ventilation. Typical Applications Typical applications include commercial-kitchen fume exhaust and ventilation. Selection Notes Confirm the exhaust duty, duct route and applicable kitchen ventilation requirements before selection.
Technical Parameters
| Model(Nº) | Power(kW) | Rotation(r/min) | Volume(m³/h) | Pressure(Pa) | Static pressure(Pa) |
|---|---|---|---|---|---|
| JDT-10″ | 0.75 | 900 | 2543~4560 | 230~151 | 198~126 |
| JDT-10″ | 1.1 | 1000 | 2826~5067 | 284~186 | 245~154 |
| JDT-10″ | 1.5 | 1200 | 3391~6081 | 409~268 | 353~180 |
| JDT-10″ | 2.2 | 1400 | 3956~7094 | 557~365 | 480~245 |
| JDT-10″ | 3 | 1630 | 4606~8259 | 755~495 | 651~332 |
| JDT-12″ | 1.1 | 800 | 3382~6326 | 276~195 | 256~135 |
| JDT-12″ | 1.5 | 900 | 3804~7116 | 350~246 | 324~184 |
| JDT-12″ | 2.2 | 1050 | 4469~8303 | 476~335 | 441~251 |
| JDT-12″ | 3 | 1250 | 5284~9884 | 675~475 | 625~275 |
| JDT-12″ | 4 | 1430 | 6045~11307 | 883~622 | 818~360 |
| JDT-15″ | 1.5 | 700 | 5047~9639 | 323~234 | 296~214 |
| JDT-15″ | 2.2 | 820 | 5912~10121 | 443~321 | 407~294 |
| JDT-15″ | 3 | 950 | 6849~11725 | 595~431 | 546~395 |
| JDT-15″ | 4 | 1080 | 7786~13329 | 769~557 | 706~511 |
| JDT-15″ | 5.5 | 1280 | 9228~15789 | 1080~703 | 991~562 |
| JDT-18″ | 2.2 | 600 | 7181~12782 | 283~203 | 240~109 |
| JDT-18″ | 3 | 720 | 8618~15338 | 389~278 | 332~149 |
| JDT-18″ | 4 | 820 | 9814~17469 | 517~272 | 440~200 |
| JDT-18″ | 5.5 | 930 | 11131~19812 | 657~471 | 560~252 |
| JDT-18″ | 7.5 | 1100 | 12328~21942 | 925~582 | 856~303 |
| JDT-20″ | 3 | 560 | 7041~16578 | 383~301 | 360~230 |
| JDT-20″ | 4 | 610 | 7670~18058 | 454~358 | 427~273 |
| JDT-20″ | 5.5 | 720 | 9053~21315 | 633~499 | 595~381 |
| JDT-20″ | 7.5 | 800 | 10059~23683 | 782~616 | 735~470 |
| JDT-20″ | 11 | 930 | 11693~27532 | 1056~833 | 993~635 |
| JDT-20″ | 15 | 980 | 12300~29012 | 1173~925 | 1103~705 |
| JDT-22″ | 4 | 550 | 9789~21319 | 450~354 | 409~245 |
| JDT-22″ | 5.5 | 650 | 11569~25195 | 629~494 | 571~342 |
| JDT-22″ | 7.5 | 720 | 12815~27908 | 772~607 | 700~402 |
| JDT-22″ | 11 | 770 | 13705~29846 | 883~694 | 801~481 |
| JDT-22″ | 15 | 820 | 14595~31784 | 1001~787 | 908~545 |
| JDT-22″ | 18.5 | 930 | 16553~36048 | 1288~1012 | 1168~701 |
| JDT-25″ | 5.5 | 520 | 14985~25130 | 507~432 | 456~358 |
| JDT-25″ | 7.5 | 580 | 16714~28029 | 631~538 | 567~445 |
| JDT-25″ | 11 | 650 | 18731~31412 | 792~675 | 712~559 |
| JDT-25″ | 15 | 720 | 20748~34795 | 972~829 | 874~686 |
| JDT-25″ | 18.5 | 800 | 23054~38661 | 1200~1023 | 1079~847 |
| JDT-25″ | 22 | 870 | 25071~42044 | 1419~1210 | 1276~1002 |
