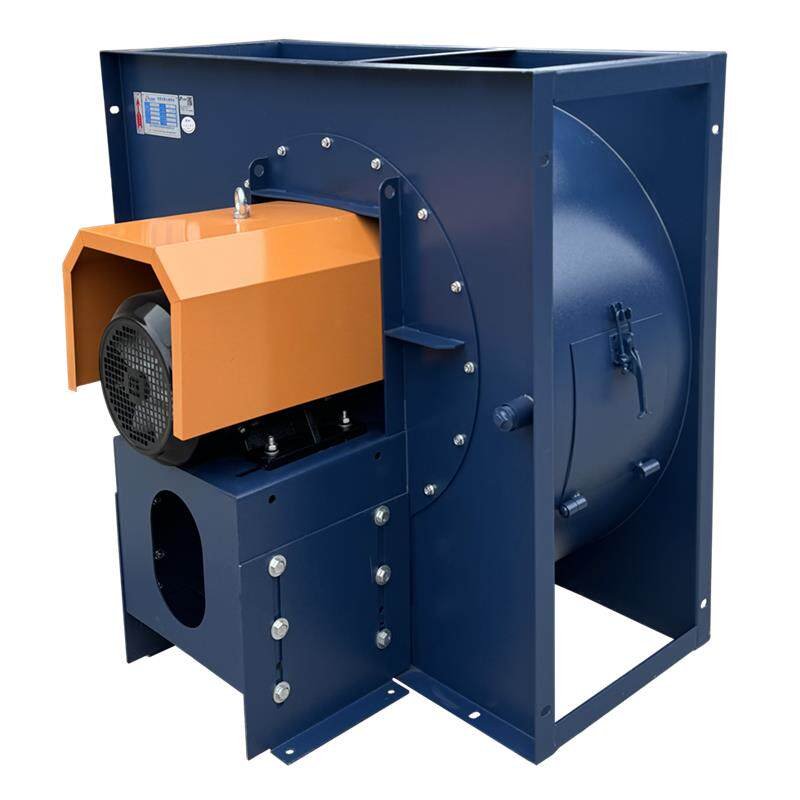

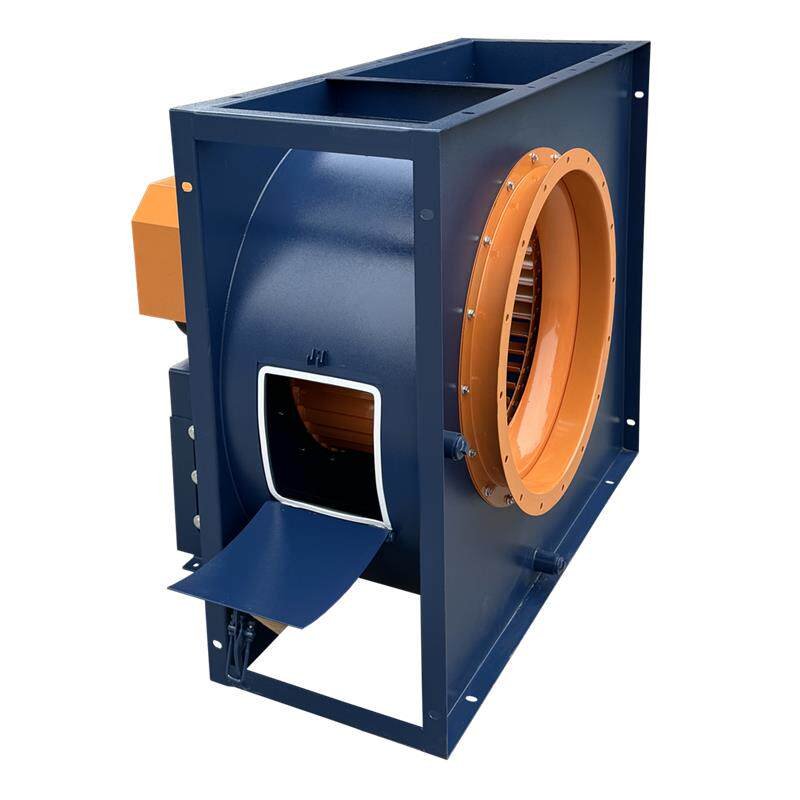

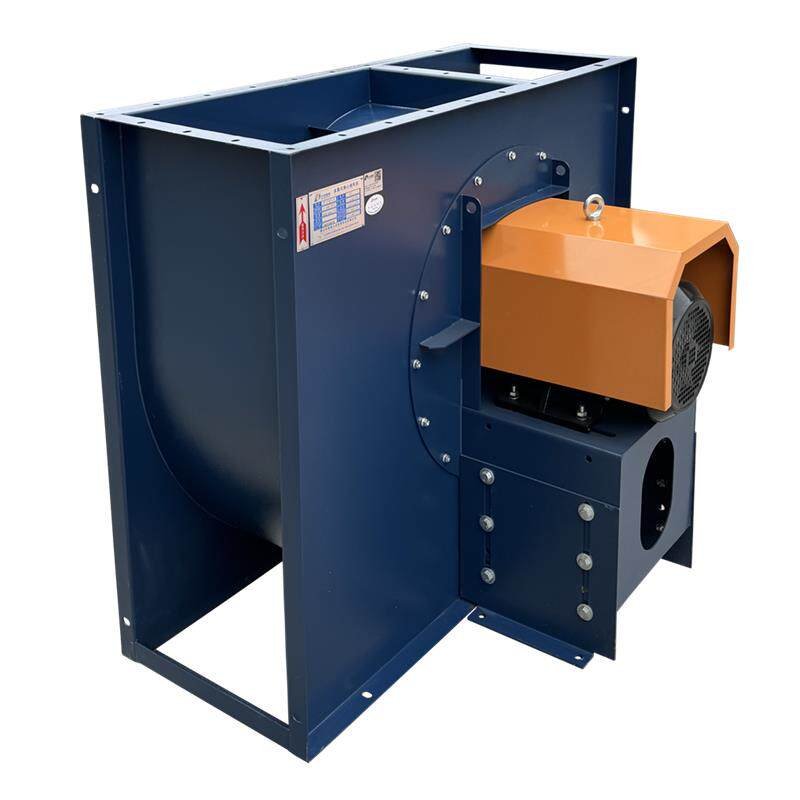

VF multi-wings centrifugal fan is a high-performance industrial ventilation unit manufactured by POPULA, a professional 100% direct source manufacturer. Specifically engineered for the B2B global market, this series integrates advanced permanent magnet technology with a specialized structure to solve the most challenging kitchen smoke exhaust problems. Advanced Technology of VF multi-wings centrifugal fan Sourcing the VF multi-wings centrifugal fan directly from our manufacturing facility ensures your project benefits from a refined design based on years of industrial expertise. This fan utilizes the advanced XBF-C blade structure, specifically modified to address the common industry issue of grease and oil accumulation on impellers in commercial kitchen environments. Smart Drive Integration: Every VF multi-wings centrifugal fan is equipped with a high-efficiency permanent magnet motor plus a dedicated inverter, allowing for precision control and significant energy savings. Maintenance-Friendly Housing: The fan housing is standard-equipped with dedicated clean windows, allowing for easy inspection and removal of oil dirt without extensive disassembly. Aerodynamic Blade Design: Based on the XBF-C structure, the multi-wings impeller is engineered for high static pressure and stable airflow, perfect for long-distance ductwork in large public buildings. Public Venue Applications: Widely applicable to unit canteens, hotels, and restaurants for reliable smoke extraction and general air transmission. Industrial Technical Standards: Designed for non-viscous gases at temperatures up to 80°C, with a dust and particle concentration not exceeding 150mg/m³. With its combination of permanent magnet efficiency and an easy-clean design, the VF multi-wings centrifugal fan stands as a premier solution for facility managers who prioritize low maintenance and high performance. Trust POPULA for factory-direct technical parameters and competitive wholesale pricing for your ventilation projects.

Technical Parameters

Model (N°) Power (kW) Voltage (V) Rotation (r/min) Volume (m³/h) Pressure (Pa) Static Pressure (Pa)
5A 3 380 800 4705~10897 634~607 600~416
5A 4 380 900 5311~12300 803~768 758~526
5A 5.5 380 1000 5876~12691 984~920 929~731
5A 7.5 380 1100 6534~14112 1193~1180 1127~928
5.6A 5.5 380 800 9642~16520 880~719 774~463
5.6A 7.5 380 1000 10450~15043 1396~1234 1284~1022
5.6A 11 380 1100 9411~18667 1530~1388 1406~1152
6.3A 7.5 380 750 10698~17534 887~875 810~731
6.3A 11 380 900 13715~19271 1458~1438 1333~1201
6.3A 15 380 1000 14034~23224 1775~1600 1650~1341
7.1A 11 380 750 14968~26000 1190~1150 1042~752
7.1A 15 380 800 12643~26904 1214~1410 1192~1086
7.1A 18.5 380 800 25126~33849 1480~1221 1196~794
8A 15 380 600 12604~31058 1080~1240 988~926
8A 18.5 380 750 13957~33202 1290~1410 1203~1195
8A 22 380 750 14285~36028 1330~1590 1240~1205

Note: This series of fans is equipped with permanent magnet motors (PMM) and dedicated inverters (VFDs).

Dimensions

Model Power Inlet Dimensions Outlet Dimensions
kW D1 D2 D3 n-Ød1 A1 Ny×y=A2 A3 B1 Nx×x=B2 B3 n-d2 E F G H I C C1 C2 C3 L L1 N N1 N2 N3 M M1 n-d3 n-d4
5A 3kW Ø500 Ø550 Ø570 16-Ø12 555 119×5=595 640 315 89×4=356 395 18-Ø10 870 980 570 480 250 165 135 75 115 738 225 641 60 130 355 343 303 2-Ø14 12-12×18
5A 4kW Ø500 Ø550 Ø570 16-Ø12 555 119×5=595 640 315 89×4=356 395 18-Ø10 870 980 570 480 250 165 135 75 115 738 225 641 60 130 355 343 303 2-Ø14 12-12×18
5A 5.5kW Ø500 Ø550 Ø570 16-Ø12 555 119×5=595 640 315 89×4=356 395 18-Ø10 870 980 570 480 250 165 135 75 115 738 225 641 60 130 355 343 303 2-Ø14 12-12×18
5A 7.5kW Ø500 Ø550 Ø570 16-Ø12 555 119×5=595 640 315 89×4=356 395 18-Ø10 870 980 570 480 250 165 135 75 115 770 225 640 60 160 355 416 376 2-Ø14 12-12×18
5.6A 5.5kW Ø560 Ø610 Ø640 16-Ø10 625 111×6=666 710 355 99×4=396 435 20-Ø10 970 1090 634 535 279 170 140 75 115 810 245 722 60 200 395 416 376 2-Ø14 14-14×20
5.6A 7.5kW Ø560 Ø610 Ø640 16-Ø10 625 111×6=666 710 355 99×4=396 435 20-Ø10 970 1090 634 535 279 170 140 75 115 810 245 722 60 200 395 416 376 2-Ø14 14-14×20
5.6A 11kW Ø560 Ø610 Ø640 16-Ø10 625 111×6=666 710 355 99×4=396 435 20-Ø10 970 1090 634 535 279 170 140 75 115 850 245 722 60 200 395 416 376 2-Ø14 14-14×20
6.3A 7.5kW Ø630 Ø680 Ø710 16-Ø10 704 125×6=750 794 400 112×4=448 486 20-Ø10 1090 1230 710 600 313 200 150 80 130 874 268 770 60 200 446 416 376 2-Ø14 14-14×20
6.3A 11kW Ø630 Ø680 Ø710 16-Ø10 704 125×6=750 794 400 112×4=448 486 20-Ø10 1090 1230 710 600 313 200 150 80 130 906 268 770 60 200 446 416 376 2-Ø14 14-14×20
6.3A 15kW Ø630 Ø680 Ø710 16-Ø10 704 125×6=750 794 400 112×4=448 486 20-Ø10 1090 1230 710 600 313 200 150 80 130 970 268 830 60 260 446 438 398 2-Ø14 14-14×20
7.1A 11kW Ø700 Ø750 Ø780 16-Ø10 640 115×6=690 724 460 102×5=510 544 22-10×13 1290 1515 897 735 535 270 180 80 145 955 297 830 60 200 500 416 376 2-Ø14 14-14×20
7.1A 15kW Ø700 Ø750 Ø780 16-Ø10 640 115×6=690 724 460 102×5=510 544 22-10×13 1290 1515 897 735 535 270 180 80 145 1025 297 890 60 260 500 438 398 2-Ø14 14-14×20
7.1A 18.5kW Ø700 Ø750 Ø780 16-Ø10 640 115×6=690 724 460 102×5=510 544 22-10×13 1290 1515 897 735 535 270 180 80 145 1115 297 930 60 300 500 468 428 2-Ø14 14-14×20
8A 15kW Ø650 Ø700 Ø740 16-Ø10 716 128×6=768 804 520 115×5=575 608 22-10×14 1425 1700 1004 830 602 300 200 80 160 1105 344 952 60 260 564 470 430 2-Ø14 14-14×25
8A 18.5kW Ø650 Ø700 Ø740 16-Ø10 716 128×6=768 804 520 115×5=575 608 22-10×14 1425 1700 1004 830 602 300 200 80 160 1200 344 992 60 300 564 700 750 2-Ø14 14-14×25
8A 22kW Ø650 Ø700 Ø740 16-Ø10 716 128×6=768 804 520 115×5=575 608 22-10×14 1425 1700 1004 830 602 300 200 80 160 1200 344 992 60 300 564 700 750 2-Ø14 14-14×25

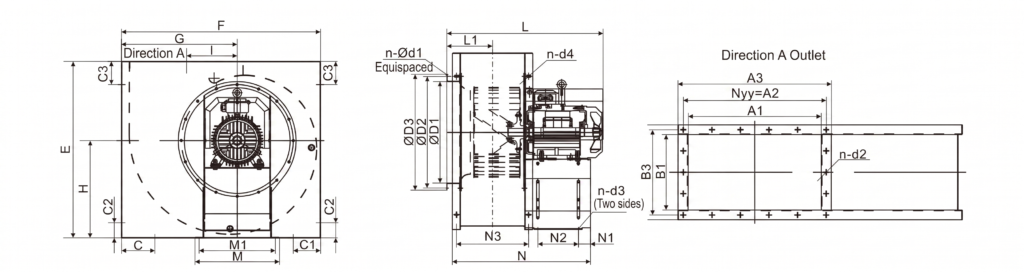

Technical Illustration

Technical illustration 1
