Kitchen Fume & Oil Smoke Control
Overview Electrostatic oil-smoke purification equipment for hotel and restaurant kitchens. It is not intended for flammable, explosive, volatile or corrosive gases. Typical Applications Typical applications include…
Overview

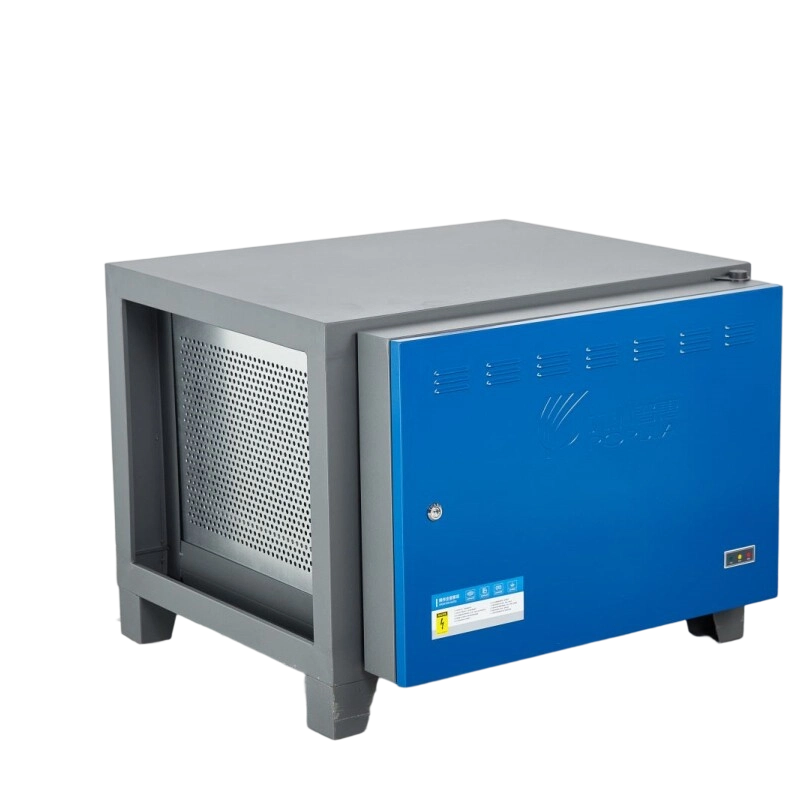

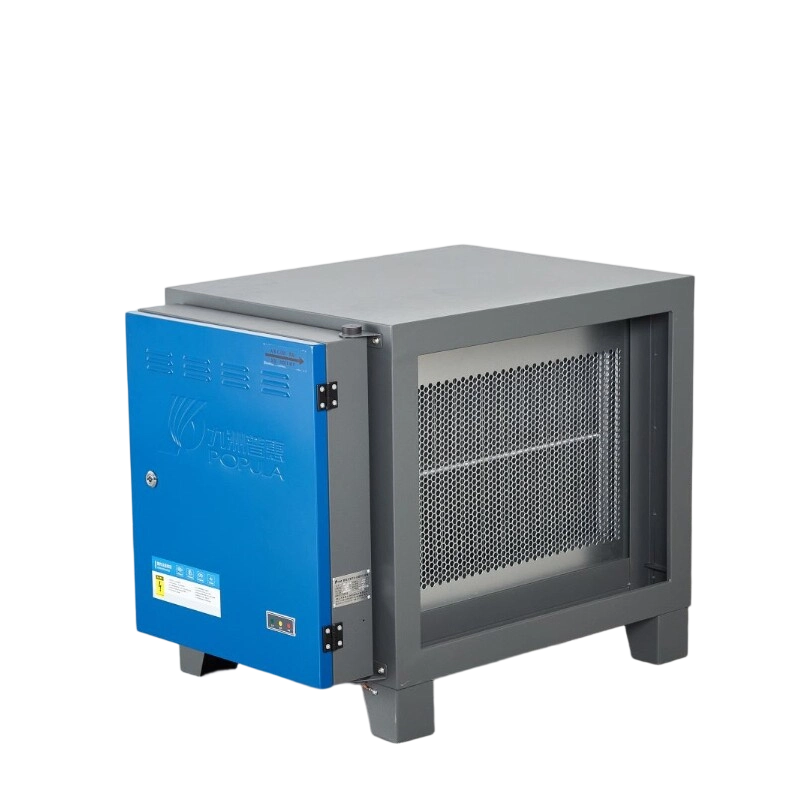

OverviewElectrostatic oil-smoke purification equipment for hotel and restaurant kitchens. It is not intended for flammable, explosive, volatile or corrosive gases.Typical ApplicationsTypical applications include hotel and restaurant kitchens.Selection NotesConfirm the exhaust duty, duct route and applicable kitchen ventilation requirements before selection.
Technical Parameters
| Model | Power(W) | Voltage(V) | Airflow(m³/h) | Drag(Pa) | Purification Efficiency | Inlet/Outlet Inner Size(W×H) | Dimensions(L×W×H) |
|---|---|---|---|---|---|---|---|
| PF-JD-4 | 68 | 220 | 4000 | <150 | 90% | 590×455 | 840×510×663 |
| PF-JD-6 | 102 | 220 | 6000 | <150 | 90% | 400×455 | 650×785×663 |
| PF-JD-8 | 136 | 220 | 8000 | <150 | 90% | 590×455 | 840×785×663 |
| PF-JD-10 | 180 | 220 | 10000 | <150 | 90% | 740×455 | 990×785×663 |
| PF-JD-12 | 204 | 220 | 12000 | <150 | 90% | 950×455 | 1200×785×663 |
| PF-JD-16 | 272 | 220 | 16000 | <150 | 90% | 590×1010 | 840×785×1220 |
| PF-JD-20 | 360 | 220 | 20000 | <150 | 90% | 740×1010 | 990×785×1220 |
| PF-JD-24 | 408 | 220 | 24000 | <150 | 90% | 910×1010 | 1155×785×1220 |
| PF-JD-32 | 544 | 220 | 32000 | <150 | 90% | 1290×1010 | 1540×785×1220 |
| PF-JD-40 | 675 | 220 | 40000 | <150 | 90% | 1800×1010 | 2045×785×1220 |
| PF-JD-48 | 816 | 220 | 48000 | <150 | 90% | 1990×1010 | 2235×785×1220 |
| PF-JD-4S | 102 | 220 | 4000 | <150 | 95% | 400×455 | 650×785×663 |
| PF-JD-6S | 136 | 220 | 6000 | <150 | 95% | 590×455 | 840×785×663 |
| PF-JD-8S | 180 | 220 | 8000 | <150 | 95% | 740×455 | 990×785×663 |
| PF-JD-9S | 204 | 220 | 9000 | <150 | 95% | 950×455 | 1200×785×663 |
| PF-JD-12S | 272 | 220 | 12000 | <150 | 95% | 590×1010 | 840×785×1220 |
| PF-JD-16S | 360 | 220 | 16000 | <150 | 95% | 740×1010 | 990×785×1220 |
| PF-JD-18S | 408 | 220 | 18000 | <150 | 95% | 910×1010 | 1155×785×1220 |
| PF-JD-24S | 544 | 220 | 24000 | <150 | 95% | 1290×1010 | 1540×785×1220 |
| PF-JD-30S | 675 | 220 | 30000 | <150 | 95% | 1800×1010 | 2045×785×1220 |
| PF-JD-36S | 816 | 220 | 36000 | <150 | 95% | 1990×1010 | 2235×785×1220 |
| Model | Power(W) | Voltage(V) | Volume(m³/h) | Drag(Pa) | Efficiency | Inlet/Outlet Size(W×H) | Dimensions(L×W×H) |
|---|---|---|---|---|---|---|---|
| PF-JD-4S | 102 | 220 | 4000 | <150 | 95% | 400×455 | 650×785×663 |
| PF-JD-6S | 136 | 220 | 6000 | <150 | 95% | 590×455 | 840×785×663 |
| PF-JD-8S | 180 | 220 | 8000 | <150 | 95% | 740×455 | 990×785×663 |
| PF-JD-9S | 204 | 220 | 9000 | <150 | 95% | 950×455 | 1200×785×663 |
| PF-JD-12S | 272 | 220 | 12000 | <150 | 95% | 590×1010 | 840×785×1220 |
| PF-JD-16S | 360 | 220 | 16000 | <150 | 95% | 740×1010 | 990×785×1220 |
| PF-JD-18S | 408 | 220 | 18000 | <150 | 95% | 910×1010 | 1155×785×1220 |
| PF-JD-24S | 544 | 220 | 24000 | <150 | 95% | 1290×1010 | 1540×785×1220 |
| PF-JD-30S | 675 | 220 | 30000 | <150 | 95% | 1800×1010 | 2045×785×1220 |
| PF-JD-36S | 816 | 220 | 36000 | <150 | 95% | 1990×1010 | 2235×785×1220 |
