Kitchen Fume & Oil Smoke Control

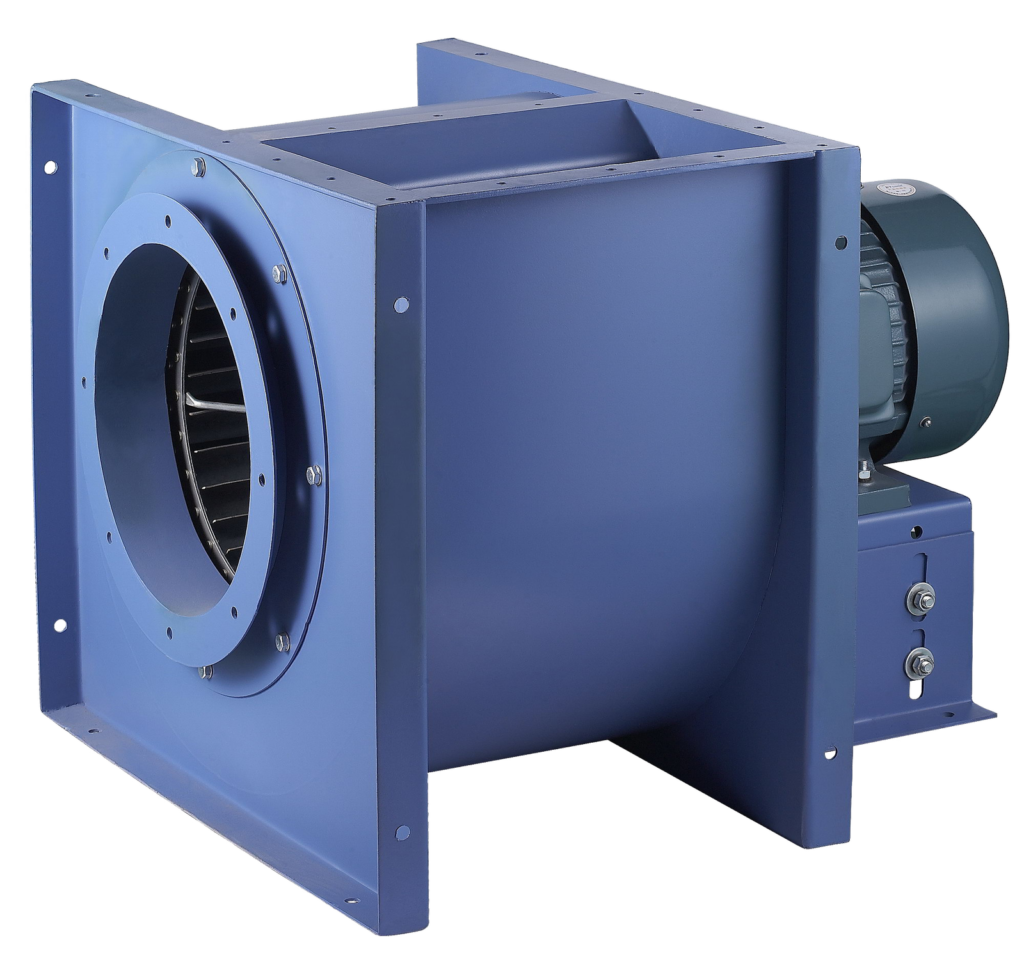

XBF multi-wings centrifugal fan for extraction smoke

Category: Kitchen Fume & Oil Smoke Control
Series: Kitchen Fume & Oil Smoke Control

Overview

OverviewMulti-wing centrifugal fan for kitchen smoke extraction and other fume-heavy exhaust applications.Typical ApplicationsTypical applications include kitchen smoke extraction and other fume-heavy exhaust applications.Selection NotesConfirm the exhaust duty, duct route and applicable kitchen ventilation requirements before selection.

Technical Parameters

XBF-A Type Series

Model(No)	Power(kW)	Voltage(V)	Rotation(r/min)	Volume(m³/h)	Pressure(Pa)	Static pressure(Pa)	Noise dB(A)
2.8A	1.1	220/380	1400	1388~3500	1000~642	569~478	≤74
3A	2.2	220	1420	2976~4500	800~650	710~580	≤78
3A	1.5	220/380	1400	2672~4118	835~796	759~617	≤77
3A	0.75	380	910	1769~3065	365~324	334~226	≤68
3.5A	3	220/380	1450	4187~5626	1100~1139	1006~1008	≤82
3.5A	1.1	220/380	910	2769~3724	483~499	442~443	≤74
4A	4	380	1450	5048~8050	1142~1020	1047~702	≤79
4A	5.5	380	1450	4941~8401	1252~1345	1167~1100	≤87
4A	2.2	380	960	4539~6947	613~315	544~156	≤80
4A	3	380	960	4250~8000	569~434	500~275	≤78
4.5A	4	380	960	4290~9528	750~857	709~653	≤75
4.5A	7.5	380	1450	7780~11078	1374~1025	1213~762	≤81
5A	5.5	380	960	7148~12000	976~1017	906~844	≤79
5A	7.5	380	960	12900~14388	980~937	750~652	≤84
5A	11	380	960	12238~18500	1337~1110	1225~858	≤79
6A	7.5	380	960	11015~16103	1204~950	1078~680	≤79
6A	5.5	380	720	9178~14982	753~558	693~389	≤73
6.5A	15	380	960	13024~21500	1595~1120	1488~850	≤80
6.5A	7.5	380	720	9768~17858	898~672	842~469	≤75
7A	11	380	720	13609~23912	1128~1114	1020~783	≤75

XBF-C Type Series

Model(No)	Power(kW)	Voltage(V)	Rotation(r/min)	Volume(m³/h)	Pressure(Pa)	Static pressure(Pa)	Noise dB(A)
4C	4	380	1250	4743~7900	975~998	879~765	≤78
4C	5.5	380	1350	5123~9482	1137~1142	1025~756	≤80
4C	7.5	380	1450	5502~11163	1312~1278	1183~743	≤82
4.5C	4	380	950	4508~10504	777~732	727~505	≤76
4.5C	5.5	380	1100	5314~10315	1029~1038	963~787	≤80
5C	3	380	750	4411~10216	528~505	499~346	≤73
5C	4	380	860	5058~11714	694~663	655~455	≤76
5C	5.5	380	970	5705~12321	883~886	834~656	≤79
5C	7.5	380	1100	6469~13973	1136~1140	1073~884	≤79
5.6C	5.5	380	750	9011~16208	732~640	656~393	≤75
5.6C	7.5	380	930	10132~16043	1035~1083	962~863	≤80
5.6C	11	380	1100	8290~18168	1330~1562	1265~1252	≤84
6.3C	7.5	380	680	9470~19831	774~724	722~495	≤80
6.3C	11	380	780	10863~22748	1018~953	950~650	≤83
6.3C	11	380	880	12256~19864	1296~1297	1209~1066	≤86
6.3C	15	380	880	22364~25664	1250~1213	951~827	≤86
6.3C	15	380	930	12952~25056	1447~1385	1350~1018	≤87
6.3C	18.5	380	980	13649~25206	1608~1550	1499~1179	≤88
7.1C	11	380	600	14674~29508	828~942	725~523	≤80
7.1C	15	380	660	16141~32485	1002~1142	877~633	≤82
7.1C	15	380	700	9900~28320	903~1270	856~884	≤83
7.1C	18.5	380	700	31485~34426	1283~1285	806~713	≤83
8C	15	380	600	12004~33114	851~1208	803~842	≤80
8C	18.5	380	640	12805~35322	968~1375	914~958	≤84
8C	22	380	680	13605~37529	1093~1552	1032~1082	≤86

Dimensions

Model(No)	Inlet Dimensions				Outlet Dimensions
	D1	D2	D3	n-d1	A1	Ny×y=A2	A3	B1	Nx×x=B2	B3	n-d2
2.8A	Ø280	Ø306	Ø322	8-Ø10	315	115×3=345	375	190	110×2=220	250	10-Ø8.5
3A	Ø300	Ø340	Ø355	8-Ø10.5	340	123×3=369	400	200	115×2=230	260	10-8.5×12.5
3.5A	Ø360	Ø394	Ø414	8-Ø10.5	380	102.5×4=410	440	230	87×3=261	290	14-8.5×12.5
4A	Ø400	Ø440	Ø460	8-Ø12	450	122.5×4=490	530	260	100×3=300	340	14-8.5×12.5
4.5A	Ø450	Ø490	Ø510	16-Ø12	500	135×4=540	580	290	110×3=330	370	14-8.5×12.5
5A	Ø500	Ø550	Ø570	16-Ø10	560	120×5=600	640	315	118.3×3=355	395	16-10.5×14.5
6A	Ø600	Ø650	Ø675	16-Ø12	672	119×6=714	752	340	127×3=381	420	18-10.5×14.5
6.5A	Ø560	Ø600	Ø650	12-Ø12	728	110×7=770	808	340	127×3=381	420	20-10.5×14.5
7A	Ø600	Ø650	Ø705	12-Ø12	784	118×7=826	864	340	127×3=381	420	20-10.5×14.5

Model(No)	Outline Dimensions							Mounting Dimensions
	E	F	G	H	C	L	L1	N	N1	N2	M	M1	n-d3	n-d4
2.8A	560	510	235	327	50	516	151	445	40	130	260	230	2-Ø10	14-Ø10
3A	610	520	231	363	50	585 (2.2kW) 555 (1.5kW) 525 (0.75kW)	154	480	50	150	256	225	2-10×14	14-10×15
3.5A	700	600	266	417	50	610 (3kW) 575 (1.1kW)	171	515	50	150	317	277	2-10×14	14-10×15
4A	810	700	316	485	70	670 (2.2/3kW) 720 (4/5.5kW)	197	624	60	200	372	332	2-14×18	14-13×15
4.5A	900	780	351	532	70	791	212	656	60	200	378	338	2-14×18	14-13×15
5A	1000	890	407	596	70	805 (5.5kW) 890 (7.5kW)	225	721	60	240	416	376	2-14×18	14-13×20
6A	1160	1080	508	671	70	945 (11kW) 910 (7.5/5.5kW)	238	807	80	260	438	398	2-14×18	14-13×20
6.5A	1275	1160	545	746	70	1020 (15kW) 960 (7.5kW)	247	867	70	340	468	428	2-14×18	14-13×20
7A	1355	1230	572	792	70	1000	228	867	70	340	468	428	2-17×21	14-13×20

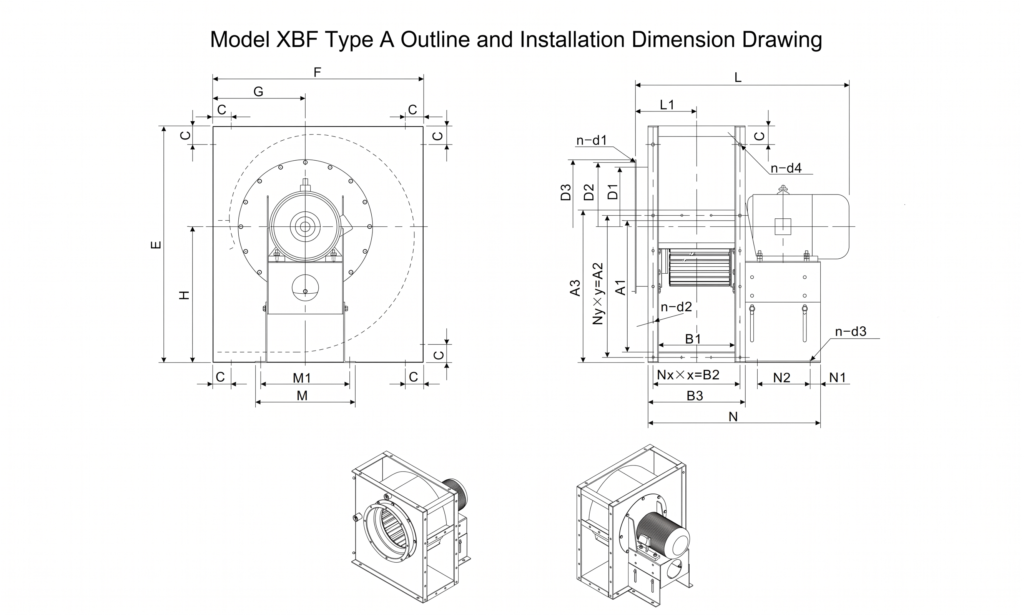

Technical Illustration
