Axial & General Ventilation Fans
Overview Low-noise axial fan for duct ventilation and workshop supply or exhaust service. Use only with non-corrosive, non-explosive air. Typical Applications Typical applications include duct ventilation…
Overview

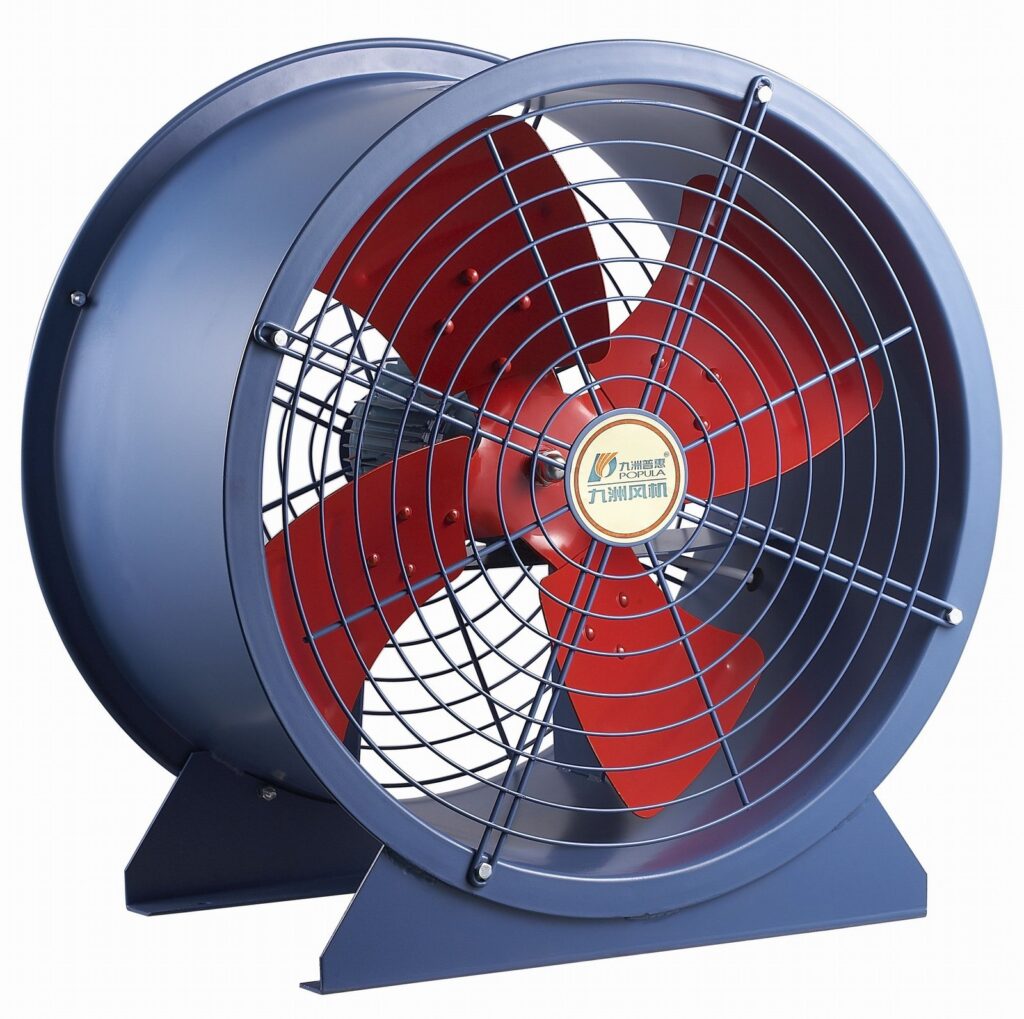

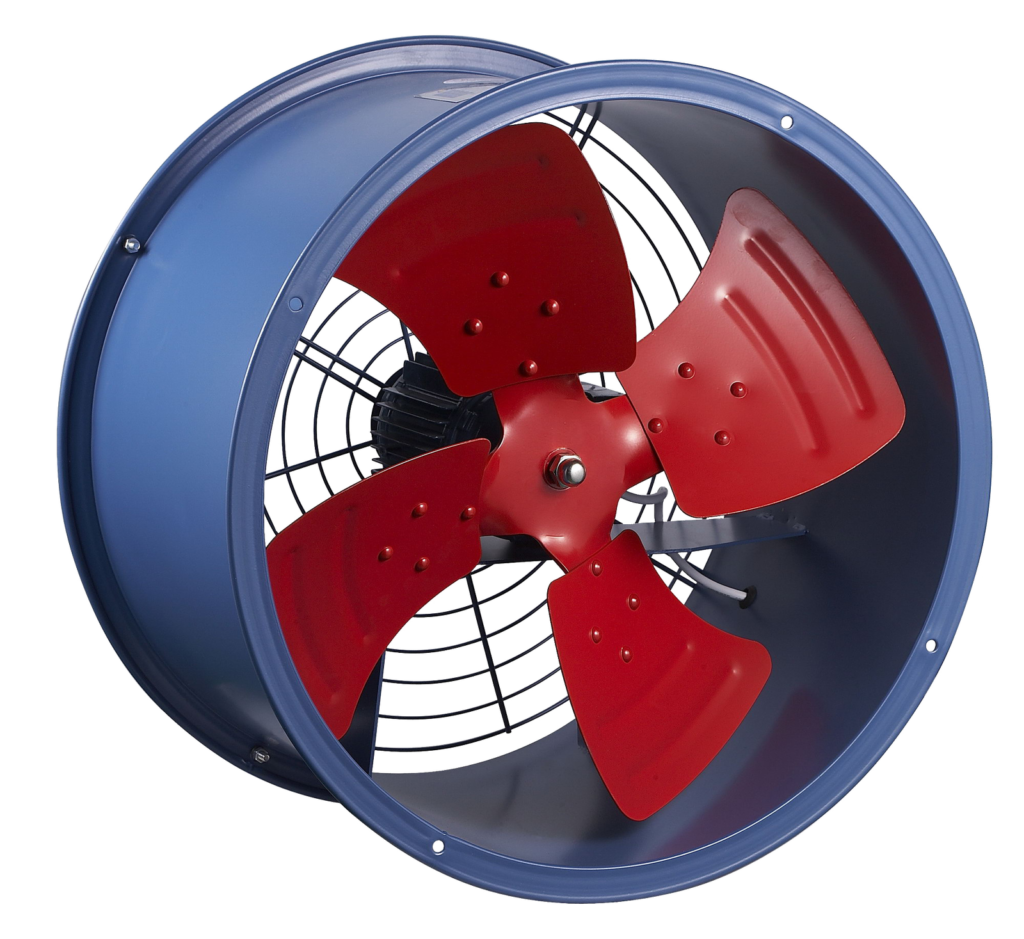

OverviewLow-noise axial fan for duct ventilation and workshop supply or exhaust service. Use only with non-corrosive, non-explosive air.Typical ApplicationsTypical applications include duct ventilation and workshop supply or exhaust service.Selection NotesConfirm the mounting position, duct connection, airflow direction and system resistance before selection.
Technical Parameters
| Model(Nº) | Power(kW) | Voltage(V) | Rotation(r/min) | Volume(m³/h) | Pressure(Pa) | Noise dB(A) |
|---|---|---|---|---|---|---|
| EG-2A-2 | 0.18 | 220/380 | 2800 | 600~940 | 80~60 | ≤68 |
| EG-2.5A-4 | 0.18 | 220/380 | 1400 | 790~1460 | 45~24 | ≤58 |
| EG-2.5A-2 | 0.25 | 220/380 | 2800 | 1200~1740 | 168~126 | ≤71 |
| EG-3A-4 | 0.205 | 220/380 | 1400 | 980~1988 | 54~27 | ≤62 |
| EG-3A-2 | 0.3 | 220/380 | 2800 | 2025~3552 | 208~144 | ≤73 |
| EG-3.5A-4 | 0.3 | 220/380 | 1400 | 1989~2980 | 92~25 | ≤63 |
| EG-3.5A-2 | 0.38 | 220/380 | 2800 | 3740~5029 | 271~175 | ≤80 |
| EG-4A-4 | 0.46 | 220/380 | 1400 | 2675~4970 | 150~98 | ≤66 |
| EG-4A-2 | 0.58 | 220/380 | 2800 | 5000~8000 | 352~131 | ≤83 |
| EG-5A-4 | 0.66 | 220/380 | 1400 | 3238~6198 | 159~95 | ≤74 |
| EG-5A-2 | 1.5 | 380 | 2800 | 5191~9346 | 413~218 | ≤85 |
| EG-5A-2 | 2.2 | 380 | 2800 | 7428~11053 | 417~306 | ≤86 |
| EG-5.6A-4 | 1.1 | 380 | 1400 | 6990~10950 | 284~129 | ≤80 |
| EG-6A-4 | 1.8 | 380 | 1420 | 11500~16780 | 288~171 | ≤82 |
| EG-6A-6 | 0.9 | 380 | 910 | 4680~8990 | 160~92 | ≤72 |
| EG-6A-2 | 3 | 380 | 2900 | 10791~15851 | 513~278 | ≤89 |
| EG-6A-2 | 4 | 380 | 2900 | 13259~18409 | 573~374 | ≤91 |
Dimensions
| Model | Motor Power | Ø1 | Ø2 | Ø3 | L | N-Ød | Weight(kg) |
|---|---|---|---|---|---|---|---|
| EG-2A | 0.18kW | 210 | 230 | 260 | 220 | 3-Ø8 | 7 |
| EG-2.5A | 0.25kW | 260 | 280 | 310 | 220 | 3-Ø8 | 8 |
| EG-2.5A | 0.18kW | 260 | 280 | 310 | 220 | 3-Ø8 | 8 |
| EG-3A | 0.3kW | 310 | 330 | 360 | 280 | 3-Ø8 | 12 |
| EG-3A | 0.205kW | 310 | 330 | 360 | 280 | 3-Ø8 | 12 |
| EG-3.5A | 0.38kW | 360 | 380 | 410 | 280 | 4-Ø8 | 16 |
| EG-3.5A | 0.3kW | 360 | 380 | 410 | 280 | 4-Ø8 | 13 |
| EG-4A | 0.58kW | 410 | 430 | 460 | 320 | 4-Ø8 | 18 |
| EG-4A | 0.46kW | 410 | 430 | 460 | 320 | 4-Ø8 | 18 |
| EG-5A | 1.5kW | 510 | 530 | 565 | 380 | 4-Ø8 | 30 |
| EG-5A | 2.2kW | 510 | 530 | 565 | 380 | 4-Ø8 | 37 |
| EG-5A | 0.66kW | 510 | 530 | 565 | 330 | 4-Ø8 | 22 |
| EG-5.6A | 1.1kW | 565 | 585 | 620 | 400 | 4-Ø8 | 38.5 |
| EG-6A | 3kW | 610 | 630 | 665 | 430 | 6-Ø8 | 50 |
| EG-6A | 4kW | 610 | 630 | 665 | 430 | 6-Ø8 | 59 |
| EG-6A | 1.8kW | 610 | 630 | 665 | 430 | 6-Ø8 | 48 |
| EG-6A | 0.9kW | 610 | 630 | 665 | 430 | 6-Ø8 | 44 |
Technical Illustration
