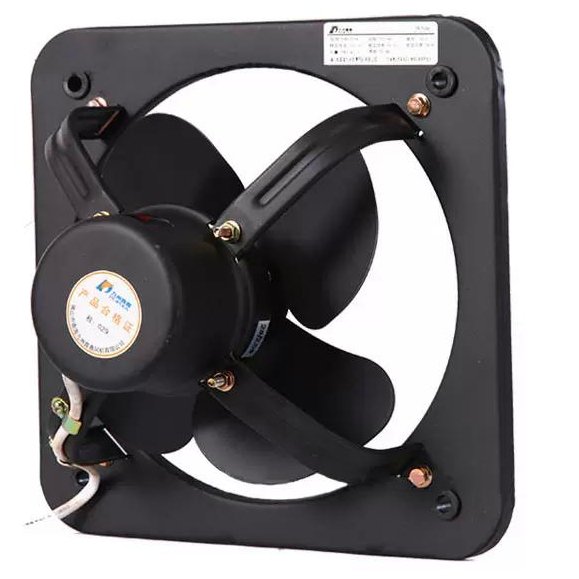

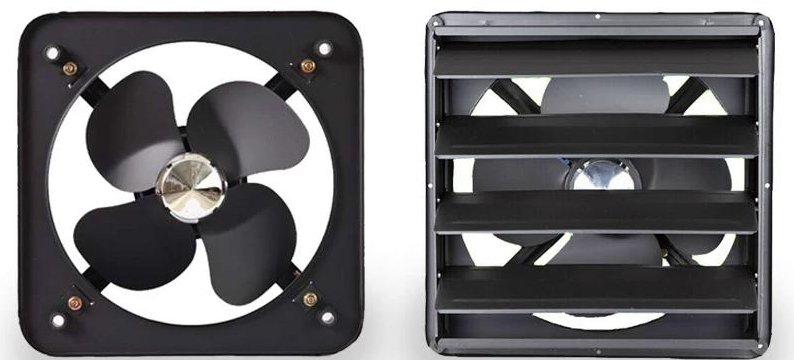

Overview Square exhaust fan for local or general air exchange in industrial buildings, warehouses, offices and residential spaces. Typical Applications Typical applications include local or general…
Overview
Overview Square exhaust fan for local or general air exchange in industrial buildings, warehouses, offices and residential spaces. Typical Applications Typical applications include local or general air exchange in industrial buildings, warehouses, offices and residential spaces. Selection Notes Confirm the installation layout, operating medium and required airflow duty against the relevant product catalogue before selection.
Technical Parameters
| Model(Nº) | Size | Power(W) | Voltage(V) | Rotation(r/min) | Volume(m³/h) | Noise dB(A) |
|---|---|---|---|---|---|---|
| FAD20-4 | 8 Inch | 25 | 220 | 1400 | 780 | 50 |
| FAD25-4 | 10 Inch | 30 | 220 | 1400 | 840 | 51 |
| FAD30-4 | 12 Inch | 40 | 220 | 1400 | 1080 | 51 |
| FAD35-4 | 14 Inch | 55 | 220 | 1400 | 2280 | 53 |
| FAD40-4 | 16 Inch | 145 | 220(380) | 1400 | 2880 | 54 |
| FAD(S)50-4 | 20 Inch | 350 | 220(380) | 1400 | 5700 | 56 |
Dimensions

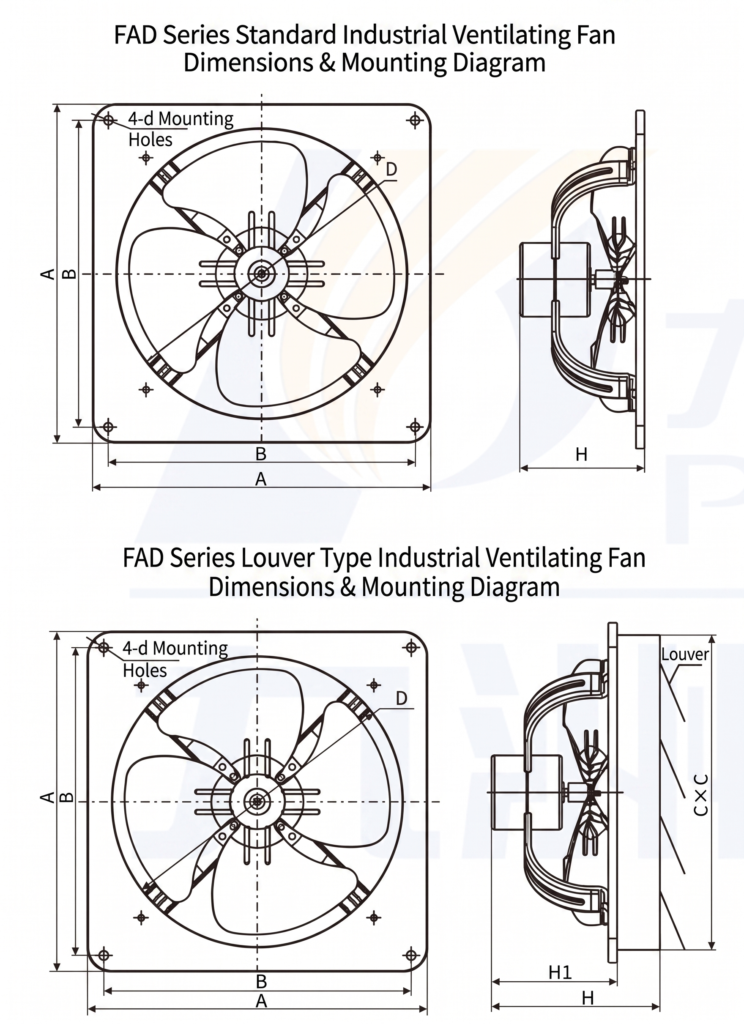

FAD Series General Type Industrial Exhaust Fan
| Model | D | A | B | H | 4-d | Unit Weight(kg) |
|---|---|---|---|---|---|---|
| FAD20-4 | Ø215 | 247 | 202 | 135 | 6 | 1.3 |
| FAD25-4 | Ø265 | 293 | 247 | 140 | 6 | 1.52 |
| FAD30-4 | Ø315 | 355 | 300 | 160 | 6 | 2.2 |
| FAD35-4 | Ø370 | 410 | 338 | 172 | 6 | 2.73 |
| FAD40-4 | Ø410 | 480 | 400 | 245 | 12 | 4.65 |
| FAD50-4 | Ø515 | 585 | 470 | 255 | 12 | 7.5 |
FAD Series Louver Type Industrial Exhaust Fan
| Model | D | A | B | H | H1 | C×C | 4-d | Unit Weight(kg) |
|---|---|---|---|---|---|---|---|---|
| FAD20-4 | Ø215 | 288 | 255 | 190 | 140 | 243 | 8 | 1.85 |
| FAD25-4 | Ø265 | 315 | 285 | 190 | 140 | 275 | 8 | 2.15 |
| FAD30-4 | Ø315 | 375 | 350 | 215 | 165 | 340 | 8 | 2.95 |
| FAD35-4 | Ø370 | 450 | 415 | 215 | 165 | 400 | 8 | 3.88 |
| FAD40-4 | Ø410 | 480 | 440 | 280 | 230 | 425 | 12 | 5.7 |
