POG type axial fan
Back to Products

Axial & General Ventilation Fans

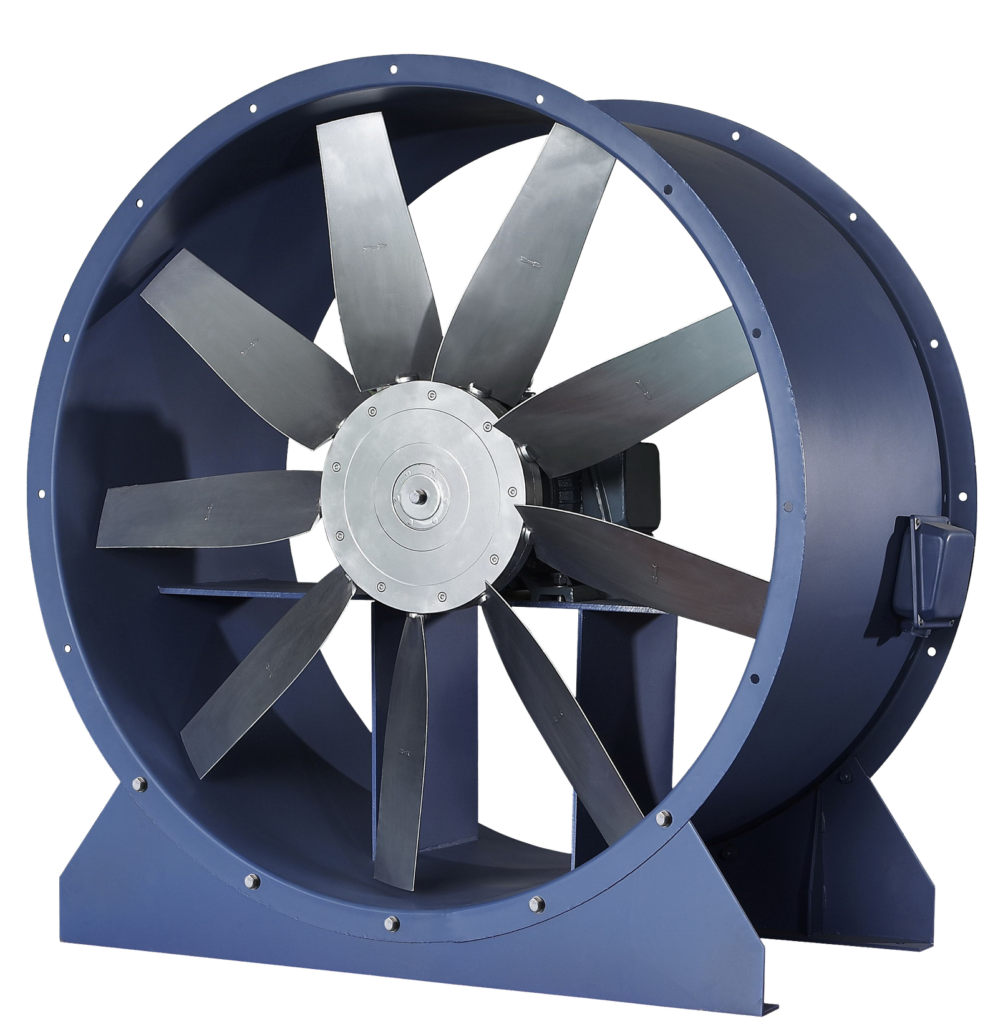

POG type axial fan

Overview High-air-volume axial fan for ventilation and air renewal in factories, warehouses, painting areas and drying spaces. Typical Applications Typical applications include ventilation and air renewal…

Category
Axial & General Ventilation Fans
Series
Axial & General Ventilation Fans
Request a Quote View All Products

Overview

OverviewHigh-air-volume axial fan for ventilation and air renewal in factories, warehouses, painting areas and drying spaces.Typical ApplicationsTypical applications include ventilation and air renewal in factories, warehouses, painting areas and drying spaces.Selection NotesConfirm the installation layout, operating medium and required airflow duty against the relevant product catalogue before selection.

Technical Parameters

Model(Nº) Power(kW) Rotation(r/min) Adjustable BladenAngle Volume(m³/h) Pressure(Pa)
3A 0.12 2800 20 2184~1811 114~157
3A 0.37 2800 35 3866~3261 179~211
3.5A 0.55 2800 27 4204~3392 224~285
3.5A 0.75 2800 30 4998~4094 321~356
3.5A 0.09 1400 30 2307~1818 77~107
3.5A 0.12 1400 35 2499~2047 80~112
4A 1.1 2800 25 6080~4960 285~398
4A 1.5 2800 35 7600~6150 305~428
4A 0.18 1400 32 3800~3075 77~107
4A 0.25 1400 35 4675~3900 80~112
5A 1.5 2800 18 9354~8023 242~321
5A 2.2 2800 25 11032~9400 337~410
5A 0.37 1400 28 6809~5495 103~129
5A 0.55 1400 30 8096~6631 147~163
6A 3 2900 17 15217~12125 283~537
6A 5.5 2900 21 18888~15673 432~729
6A 0.75 1450 27 10611~8338 140~193
6A 1.1 1450 32 12294~9455 187~222
6A 2.2 1450 33 22170~16939 239~295
7A 3 1450 38 23973~18777 294~322
7A 0.55 960 29 11821~8705 90~117
7A 0.75 960 33 13477~11345 118~131
8A 4 1450 24 24327~18162 295~404
8A 7.5 1450 37 36427~29916 503~532
8A 1.1 960 24 16409~13560 140~173
8A 1.5 960 29 18535~15244 169~197
9A 5.5 1450 24 39902~33582 296~422
9A 11 1450 33 48488~38655 543~620
9A 2.2 960 27 26795~18695 178~232
9A 3 960 33 31170~24568 232~265
10A 7.5 1450 23 40805~29579 312~528
10A 18.5 1450 35 61360~47436 638~712
10A 4 960 32 37375~30479 263~300
10A 5.5 960 35 40540~33861 297~323
11.2A 7.5 960 33 54117~45622 340~356
11.2A 11 960 38 57421~50499 364~384
12A 15 960 35 78463~63230 394~461
12A 18.5 960 40 86505~75764 451~488

Dimensions

Model(Nº) Motor Ø1 Ø2 Ø3 n-Ød L L1 L2 L3 H 4-Ød1 Weight(kg)
3A 63-2 0.12kW 310 330 360 3-Ø8 280 224 260 197 195 4-10×18 12
3A 71-2 0.37kW 310 330 360 3-Ø8 280 224 260 197 195 4-10×18 16
3.5A 63-4 0.09kW 360 380 410 4-Ø8 280 230 300 240 225 4-10×18 13
3.5A 63-4 0.12kW 360 380 410 4-Ø8 280 230 300 240 225 4-10×18 13
3.5A 71-2 0.55kW 360 380 410 4-Ø8 280 230 300 240 225 4-10×18 18
3.5A 71-2 0.75kW 360 380 410 4-Ø8 280 230 300 240 225 4-10×18 18
3.5A 90S-2 1.5kW 360 380 410 4-Ø8 350 289 300 240 225 4-10×18 29.5
4A 71-2 1.1kW 410 430 460 4-Ø8 280 239 350 286 250 4-10×18 19
4A 63-4 0.18kW 410 430 460 4-Ø8 300 239 350 286 250 4-10×18 13.5
4A 63-4 0.25kW 410 430 460 4-Ø8 300 239 350 286 250 4-10×18 13.5
4A 90S-2 1.5kW 410 430 460 4-Ø8 350 290 350 286 250 4-10×18 33.5
5A 90L-2 2.2kW 510 530 565 4-Ø8 300 240 450 386 310 4-10×18 38
5A 71-4 0.37kW 510 530 565 4-Ø8 300 240 450 386 310 4-10×18 22
5A 71-4 0.55kW 510 530 565 4-Ø8 300 240 450 386 310 4-10×18 22
6A 132S-2 5.5kW 610 650 680 6-Ø11 450 395 550 472 373 4-10×18 89
6A 100L-2 3kW 610 630 665 6-Ø8 370 303 550 472 373 4-10×18 52
6A 71-4 0.75kW 610 630 665 6-Ø8 370 303 550 472 373 4-10×18 36
6A 90S-4 1.1kW 610 630 665 6-Ø8 370 303 550 472 373 4-10×18 41.5
6A 100L-4 2.2kW 610 630 665 6-Ø8 370 303 550 472 373 4-10×18 59
7A 100L-4 3kW 710 735 770 8-Ø8 425 358 650 570 420 4-10×18 63
7A 71-6 0.55kW 710 735 770 8-Ø8 370 303 650 570 420 4-10×18 42
7A 90S-6 0.75kW 710 735 770 8-Ø8 370 303 650 570 420 4-10×18 45
7A 132M-4 7.5kW 710 735 770 8-Ø8 500 424 650 570 420 4-10×18 121
8A 112M-4 4kW 810 835 870 8-Ø8 425 349 750 650 462 4-14×28 87
8A 90L-6 1.1kW 810 835 870 8-Ø8 425 349 750 650 462 4-14×28 67
8A 100L-6 1.5kW 810 835 870 8-Ø8 425 349 750 650 462 4-14×28 68.5
8A 160M-4 11kW 810 835 870 8-Ø8 620 555 750 650 462 4-14×28 187
9A 132S-4 5.5kW 910 950 990 8-Ø11 500 435 850 750 525 4-14×28 125
9A 112M-6 2.2kW 910 950 990 8-Ø11 500 435 850 750 525 4-14×28 103
9A 132S-6 3kW 910 950 990 8-Ø11 500 435 850 750 525 4-14×28 119
9A 180M-4 18.5kW 910 950 990 8-Ø11 680 615 850 750 525 4-14×28 286
10A 132M-4 7.5kW 1010 1050 1090 8-Ø11 500 435 1000 900 575 4-14×28 158
10A 132M-6 4kW 1010 1050 1090 8-Ø11 500 435 1000 900 575 4-14×28 151
10A 132M-6 5.5kW 1010 1050 1090 8-Ø11 500 435 1000 900 575 4-14×28 161
11.2A 160M-6 7.5kW 1130 1180 1230 8-Ø11 680 610 1100 1000 645 4-14×28 220
11.2A 160L-6 11kW 1130 1180 1230 8-Ø11 680 610 1100 1000 645 4-14×28 239
12A 180L-6 15kW 1210 1260 1310 8-Ø11 750 673 1200 1100 680 4-16×28 305
12A 200L-6 18.5kW 1210 1260 1310 8-Ø11 750 673 1200 1100 680 4-16×28 355

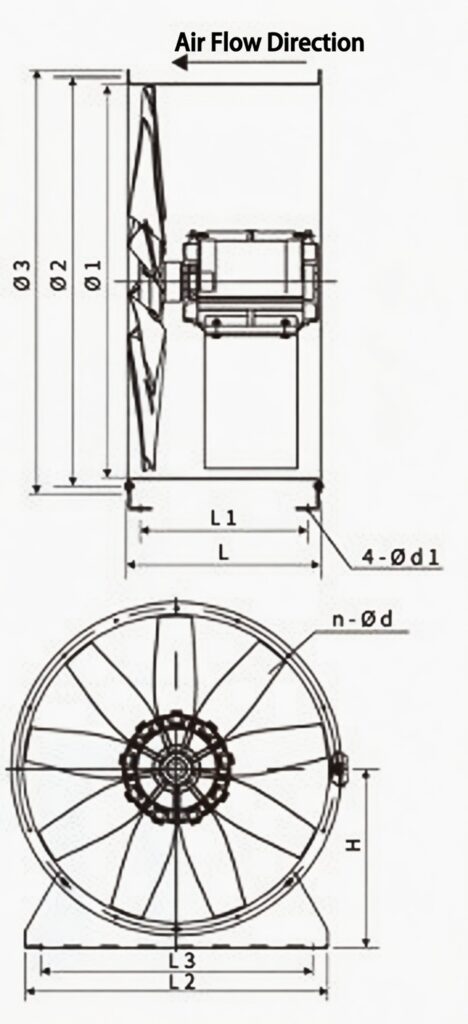

Technical Illustration

Technical illustration 1
