This Dubai logistics warehouse loading bay ventilation solution was prepared for an open-door logistics warehouse where outdoor heat entered through large loading bays during daily truck and forklift operations. The main problem was not a fully enclosed workshop that needed strong negative pressure exhaust. Instead, the warehouse needed better whole-space air circulation and direct airflow support for workers near the loading doors. POPULA recommended a practical combination of DFS industrial ceiling fans and EG axial fans or SF(G) axial fans to improve airflow organization without blocking the logistics route.
Dubai logistics warehouse loading bay ventilation solution application scenario

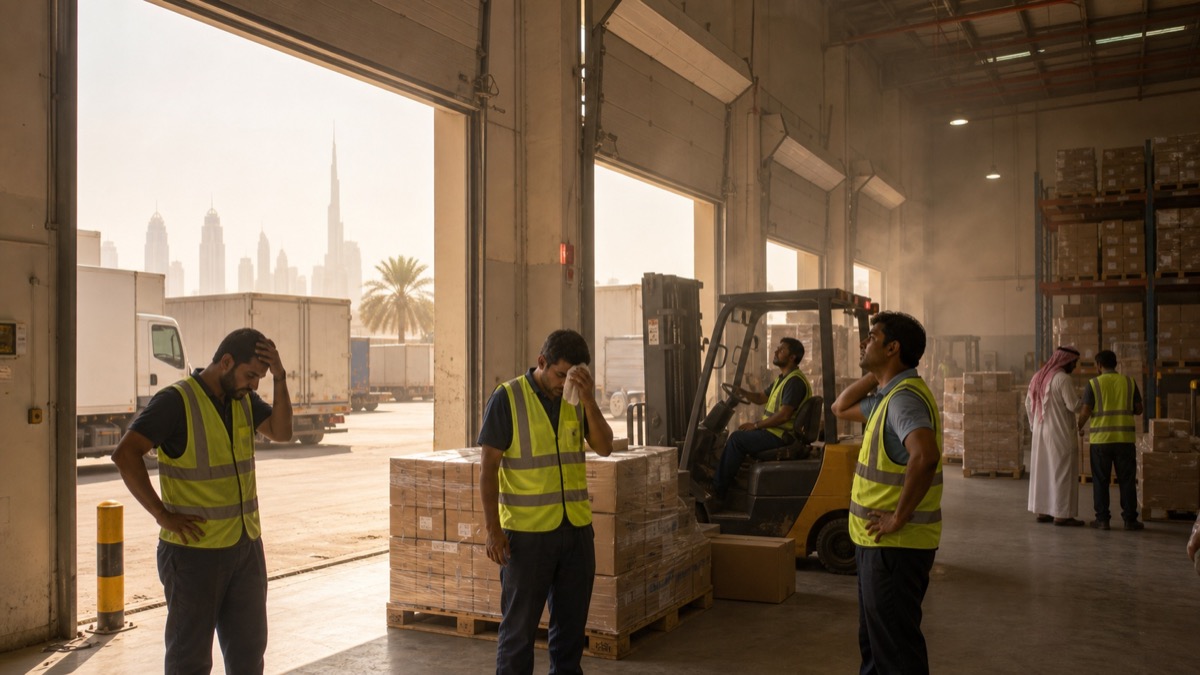

The project scenario was a logistics warehouse in Dubai, United Arab Emirates, with multiple loading doors, high ceilings, pallet storage areas, and busy forklift movement. During peak working hours, the loading doors remained open for trucks, containers, and pallet transfers. This made the indoor environment difficult to control with a simple exhaust-only method.
Because the opening area was large, a traditional negative-pressure solution was not the main recommendation for the loading bay itself. Hot air from outside would continue entering the building, and uncontrolled exhaust could not fully solve the worker comfort problem near the doors. The more practical goal was to make the air move through the large space and provide targeted airflow where workers stayed the longest.
The key site issues included slow air movement in the high-roof warehouse, heat gathering around the loading bay, workers needing direct wind sensation near the door area, and the need to keep forklift routes clear. The solution therefore had to be effective, simple to install, and friendly to daily logistics operations.
Why choose DFS industrial ceiling fans with EG or SF(G) axial fans
For this open-door warehouse, the product strategy was divided into two parallel layers. The first layer used DFS industrial ceiling fans to improve overall air circulation. Installed at high positions, DFS fans are suitable for large spaces such as logistics warehouses, industrial plants, waiting rooms, exhibition halls, and other high-ceiling areas. Their role is to move air across a wide area and reduce stagnant zones in the warehouse.
The second layer used EG axial fans or SF(G) axial fans for targeted airflow near the loading positions. These fans are more suitable for direct air delivery to specific work areas, especially where workers stand, check goods, operate pallet jacks, or wait near the loading doors. Compared with relying only on whole-space circulation, this direct airflow layer gives the door-side working area more immediate comfort support.
This is why the DFS ceiling fan and EG/SF(G) axial fan combination fits the site better than a single fan type. DFS improves the overall air movement of the warehouse, while EG or SF(G) axial fans provide point-based airflow for the people working at the open loading bay.
How POPULA arranged the airflow layout and solved the loading-bay problem

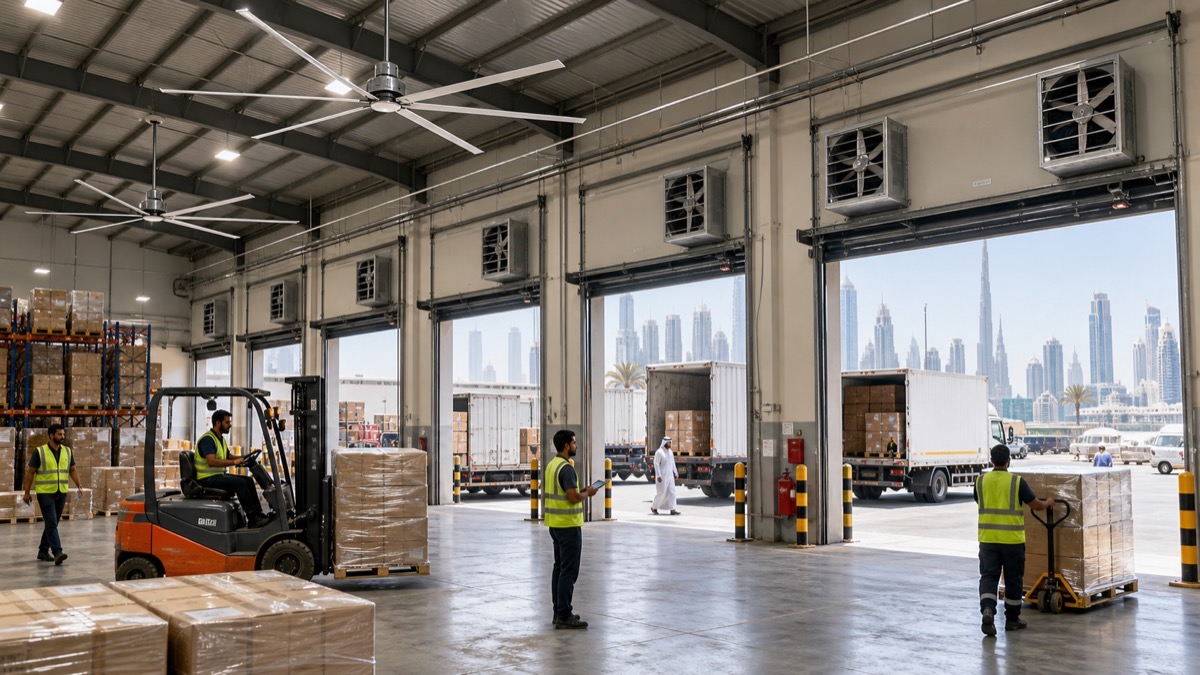

The airflow layout started with DFS industrial ceiling fans installed above the main warehouse and loading-bay zone. The fans were positioned to support large-space circulation, helping air move from high roof areas toward the occupied working zone. This reduced the feeling of still, trapped air across the warehouse floor and helped connect the door area with the inner storage aisles.
Near the loading doors, EG or SF(G) axial fans were arranged around the work positions rather than directly in the forklift path. Possible installation points included side columns, wall-adjacent positions, or protected zones beside the loading area. The airflow direction was planned to support workers without creating excessive direct wind on packaged goods or interfering with loading movement.
For auxiliary enclosed rooms, battery charging corners, or separate heat-collecting areas, JS series negative pressure fans or DWT-I roof fans could be considered as an additional exhaust layer. However, for the large open loading-bay doors in this project, the main solution remained DFS circulation plus EG/SF(G) targeted air delivery.
Actual value for the logistics warehouse
The main value of this solution was that it matched the real operating condition of the warehouse. Instead of treating the open loading bay like a sealed workshop, the design focused on airflow organization and worker comfort. This made the system more practical for a logistics site with frequent truck movement and large open doors.
The combined fan layout helped the project in several ways:
- DFS industrial ceiling fans improved overall air movement in the high-roof warehouse
- EG or SF(G) axial fans provided direct airflow for door-side workers
- The layout reduced stagnant air around loading and waiting positions
- Fan positions avoided major interference with forklifts, pallets, and truck operations
- The system allowed future exhaust additions for enclosed auxiliary areas if needed
For similar logistics warehouses, distribution centers, and loading-bay projects in hot-climate regions, POPULA can review building height, loading door size, worker positions, forklift routes, and power conditions before recommending a fan layout. With DFS industrial ceiling fans, EG axial fans, SF(G) axial fans, and optional exhaust products, POPULA fan solutions can support practical airflow planning for open-door warehouse environments.
