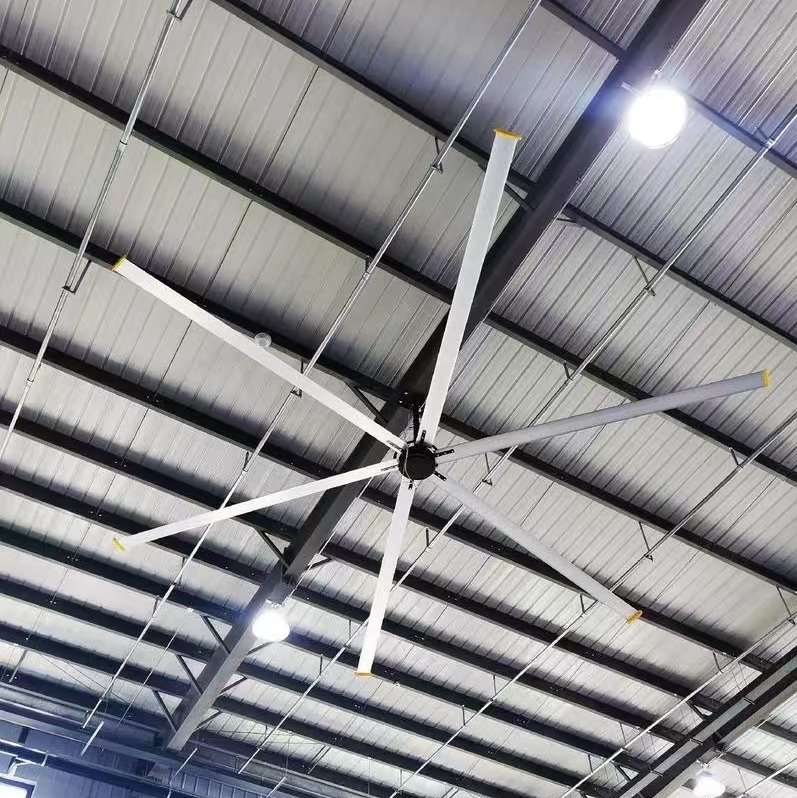

Overview Large industrial ceiling fan for wide-area air circulation in factories, warehouses, logistics facilities, exhibition halls and commercial spaces. Typical Applications Typical applications include wide-area air…
Overview
OverviewLarge industrial ceiling fan for wide-area air circulation in factories, warehouses, logistics facilities, exhibition halls and commercial spaces.Typical ApplicationsTypical applications include wide-area air circulation in factories, warehouses, logistics facilities, exhibition halls and commercial spaces.Selection NotesConfirm the installation layout, operating medium and required airflow duty against the relevant product catalogue before selection.
Technical Parameters
| Model(Nº) | Power(kW) | Voltage(V) | Maximum speed(RPM) | Volume(m³/min) | Diameter of fan blade(mm) | Number of fan blades(pcs) | Applicable area(m²) |
|---|---|---|---|---|---|---|---|
| DFS-2.3A | 0.25 | 220/380 | 110 | 4280 | 2300 | 5 | 165 |
| DFS-3.3A | 0.45 | 220/380 | 100 | 5920 | 3300 | 5 | 260 |
| DFS-4.3A | 0.55 | 220/380 | 90 | 7430 | 4300 | 5 | 310 |
| DFS-5.3A | 0.75 | 220/380 | 75 | 11400 | 5300 | 5 | 620 |
| DFS-6.3A | 1.1 | 220/380 | 60 | 13900 | 6300 | 6 | 760 |
| DFS-7.3A | 1.5 | 220/380 | 55 | 15300 | 7300 | 6 | 860 |
