Boiler Fans

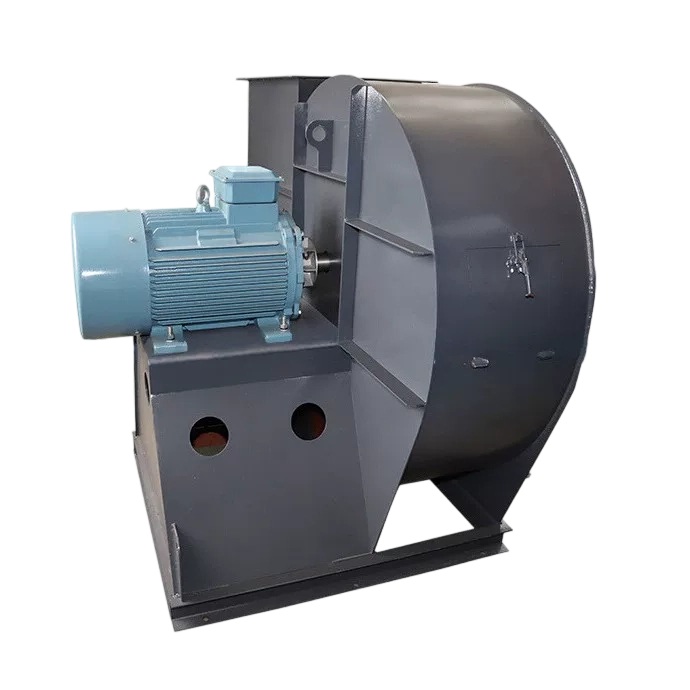

Overview Centrifugal fan for induced draft or forced ventilation on industrial boiler equipment, subject to the catalogue limits for medium and temperature. Typical Applications Typical applications…
Overview
OverviewCentrifugal fan for induced draft or forced ventilation on industrial boiler equipment, subject to the catalogue limits for medium and temperature.Typical ApplicationsTypical applications include induced draft or forced ventilation on industrial boiler equipment, subject to the catalogue limits for medium and temperature.Selection NotesConfirm the boiler capacity, service duty, medium temperature and applicable induced-draft or forced-draft requirements before selection.
Technical Parameters
| Model(Nº) | Power(kW) | Rotation(r/min) | Volume(m³/h) | Pressure(Pa) |
|---|---|---|---|---|
| 4A | 5.5 | 2900 | 3297~4396 | 2275~2334 |
| 4A | 7.5 | 2900 | 4945~5495 | 2294~2226 |
| 4.5A | 11 | 2900 | 4694~7824 | 2873~2714 |
| 5A | 15 | 2900 | 6439~7513 | 3550~3648 |
| 5A | 18.5 | 2900 | 8586~10733 | 3658~3481 |
| 5.6A | 4 | 1450 | 4523~7539 | 1116~1092 |
| 5.6A | 30 | 2900 | 9047~12063 | 4452~4579 |
| 5.6A | 37 | 2900 | 13571~15079 | 4551~4364 |
| 6.3A | 5.5 | 1450 | 6441~7514 | 1402~1441 |
| 6.3A | 7.5 | 1450 | 8588~10735 | 1451~1372 |
| 6.3A | 45 | 2900 | 12882~15029 | 5639~5786 |
| 6.3A | 55 | 2900 | 17176~19323 | 5805~5707 |
| 6.3A | 75 | 2900 | 21470 | 5521 |
| 7.1A | 11 | 1450 | 9219~12292 | 1784~1873 |
| 7.1A | 15 | 1450 | 13829~16902 | 1863~1794 |
| 7.1A | 18.5 | 1450 | 18439 | 1735 |
| 8A | 90 | 2970 | 18438~36878 | 6800~6613 |
| 8A | 22 | 1450 | 13189~19783 | 2275~2363 |
| 8A | 30 | 1450 | 21982~26378 | 2334~2206 |
| 9A | 37 | 1450 | 18778~25038 | 2873~3010 |
| 9A | 55 | 1450 | 28168~37557 | 2991~2785 |
| 10A | 55 | 1450 | 25760~30053 | 3550~3687 |
| 10A | 75 | 1450 | 34346~42933 | 3716~3648 |
| 10A | 90 | 1450 | 47226~51519 | 3569~3442 |
| 11.2A | 30 | 960 | 23960~31947 | 1951~2039 |
| 11.2A | 45 | 960 | 35941~47921 | 2030~1892 |
| 11.2A | 110 | 1450 | 36190~48254 | 4462~4658 |
| 11.2A | 132 | 1450 | 54285~60317 | 4462~4570 |
| 11.2A | 160 | 1450 | 66349~72381 | 4471~4324 |
| 12.5A | 22 | 730 | 25330~29550 | 1402~1461 |
| 12.5A | 30 | 730 | 33772~42215 | 1471~1441 |
| 12.5A | 37 | 730 | 46437~50659 | 1412~1363 |
| 12.5A | 55 | 960 | 33310~44413 | 2432~2540 |
| 12.5A | 75 | 960 | 49965~66620 | 2530~2353 |
| 12.5A | 200 | 1450 | 50312~67082 | 5560~5805 |
| 14A | 37 | 730 | 35586~41517 | 1765~1833 |
| 14A | 55 | 730 | 47448~59310 | 1843~1814 |
| 14A | 75 | 730 | 65241~71172 | 1775~1716 |
| 14A | 90 | 960 | 46798~54597 | 3049~3167 |
| 14A | 110 | 960 | 62397~70197 | 3187~3167 |
| 14A | 132 | 960 | 77997~93596 | 3128~2961 |
