Boiler Fans

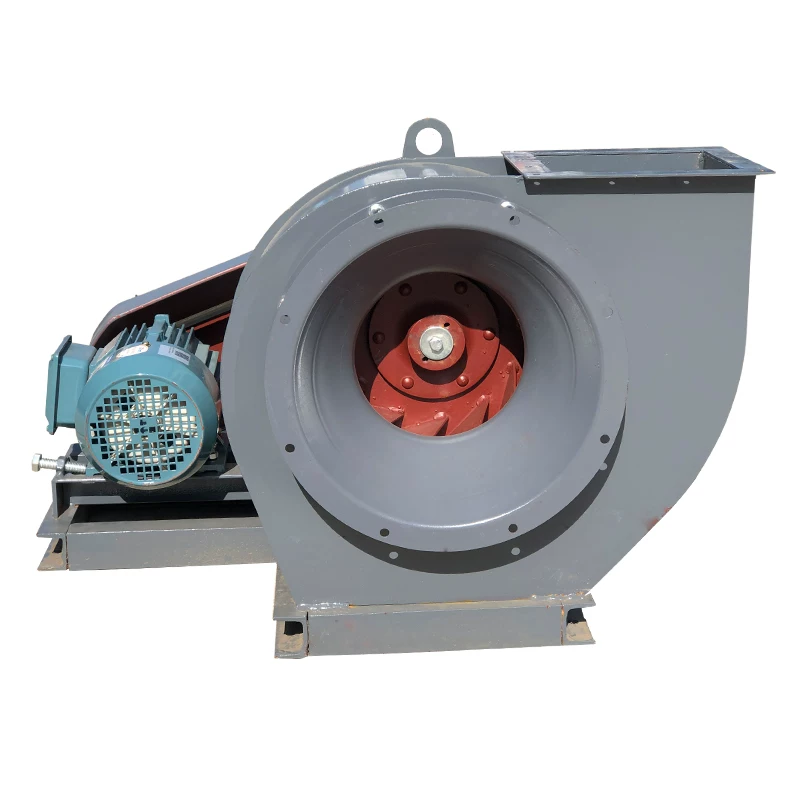

Overview Boiler induced-draft centrifugal fan for industrial and civil boiler systems. Typical Applications Typical applications include industrial and civil boiler systems. Selection Notes Confirm the boiler…
Overview
OverviewBoiler induced-draft centrifugal fan for industrial and civil boiler systems.Typical ApplicationsTypical applications include industrial and civil boiler systems.Selection NotesConfirm the boiler capacity, service duty, medium temperature and applicable induced-draft or forced-draft requirements before selection.
Technical Parameters
A series
| Model(Nº) | Power(kW) | Rotation(r/min) | Volume(m³/h) | Pressure(Pa) |
|---|---|---|---|---|
| 3.15A | 1.5 | 2800 | 1140~2150 | 865~590 |
| 4A | 3 | 2900 | 2417~4561 | 1481~1079 |
| 5A | 7.5 | 2900 | 4723~8909 | 2324~1687 |
| 5.6A | 15 | 2930 | 6634~12515 | 2926~2120 |
| 6A | 3 | 1450 | 4080~7697 | 876~638 |
| 6A | 22 | 2930 | 8245~15553 | 3575~2606 |
| 7A | 5.5 | 1450 | 6479~12223 | 1192~869 |
| 7A | 37 | 2950 | 12959~24445 | 4767~3475 |
| 8A | 11 | 1450 | 9672~18245 | 1557~1135 |
| 9A | 18.5 | 1480 | 14056~26515 | 2053~1496 |
| 10A | 37 | 1480 | 19281~31551 | 2697~2246 |
| 11A | 18.5 | 970 | 16647~31401 | 1290~940 |
| 11A | 55 | 1480 | 25663~48410 | 3050~2216 |
| 12A | 30 | 980 | 21612~40767 | 1535~1119 |
| 12A | 90 | 1480 | 33318~62850 | 3649~2638 |
| 12.4A | 30 | 980 | 23846~44982 | 1639~1195 |
| 12.4A | 110 | 1480 | 36762~69347 | 3874~2824 |
| 13A | 37 | 980 | 27477~51832 | 1802~1313 |
| 13A | 110 | 1480 | 42361~79908 | 4283~3121 |
| 14A | 45 | 980 | 34283~64671 | 2083~1519 |
| 14A | 160 | 1480 | 51783~97680 | 4753~3466 |
| 15A | 30 | 730 | 32065~60485 | 1383~1008 |
| 15A | 75 | 990 | 42167~79542 | 2392~1744 |
| 16A | 37 | 740 | 38915~73407 | 1573~1147 |
| 16A | 90 | 990 | 51175~96535 | 2721~1984 |
C series
| Model(Nº) | Power(kW) | Rotation(r/min) | Volume(m³/h) | Pressure(Pa) |
|---|---|---|---|---|
| 3.15C | 1.5 | 3250 | 1323~2496 | 1049~716 |
| 3.15C | 1.5 | 2990 | 1218~2297 | 883~608 |
| 3.15C | 1.5 | 2750 | 1120~2112 | 745~520 |
| 4C | 4 | 3300 | 2751~5190 | 1922~1393 |
| 4C | 3 | 2900 | 2417~4561 | 1481~1079 |
| 5C | 7.5 | 2900 | 4723~8909 | 2324~1687 |
| 5C | 5.5 | 2620 | 4267~8048 | 1893~1373 |
| 6C | 18.5 | 2850 | 8020~15129 | 3364~2452 |
| 6C | 15 | 2620 | 7372~13908 | 2844~2069 |
| 7C | 30 | 2580 | 11529~21747 | 3756~2746 |
| 7C | 22 | 2320 | 10367~19556 | 3040~2206 |
| 7C | 18.5 | 2200 | 9830~18545 | 2736~1991 |
| 7C | 15 | 2050 | 9159~17280 | 2373~1716 |
| 8C | 30 | 2020 | 13474~25417 | 3001~2187 |
| 8C | 22 | 1860 | 12407~23404 | 2550~1853 |
| 9C | 45 | 1900 | 18045~34039 | 3364~2452 |
| 9C | 37 | 1800 | 17095~32247 | 3020~2197 |
D series
| Model(Nº) | Power(kW) | Rotation(r/min) | Volume(m³/h) | Pressure(Pa) |
|---|---|---|---|---|
| 4D | 3 | 2870 | 2393~4514 | 1451~1059 |
| 5D | 7.5 | 2900 | 4723~8909 | 2324~1687 |
| 6D | 18.5 | 2930 | 8245~13492 | 3550~3168 |
| 6D | 22 | 2930 | 14523~15553 | 2903~2589 |
| 10D | 37 | 1480 | 19281~31551 | 2697~2246 |
| 11D | 55 | 1480 | 25663~48410 | 3050~2216 |
| 12D | 90 | 1480 | 54520~62850 | 3236~2638 |
| 12.4D | 110 | 1480 | 36762~69347 | 3874~2824 |
