Axial & General Ventilation Fans
Overview Wall-mounted fan for ventilation in workshops and commercial buildings. Typical Applications Typical applications include ventilation in workshops and commercial buildings. Selection Notes Confirm the installation…
Overview
OverviewWall-mounted fan for ventilation in workshops and commercial buildings.Typical ApplicationsTypical applications include ventilation in workshops and commercial buildings.Selection NotesConfirm the installation layout, operating medium and required airflow duty against the relevant product catalogue before selection.
Technical Parameters
| Model(Nº) | Power(kW) | Voltage(V) | Rotation(r/min) | Volume(m³/h) |
|---|---|---|---|---|
| FB-45 | 110 | 220 | 1400 | 7200 |
| FB-45 | 110 | 380 | 1400 | 8500 |
| FT-50 | 130 | 220 | 1400 | 8500 |
| FT-50 | 130 | 380 | 1400 | 12000 |
Dimensions
| Model(Nº) | Power(kW) | Voltage(V) | Rotation(r/min) | Volume(m³/h) | Pressure(Pa) |
|---|---|---|---|---|---|
| 2.5A | 0.09 | 220/380 | 1400 | 1300 | 26 |
| 3A | 0.12 | 220/380 | 1400 | 1800 | 30 |
| 3.5A | 0.18 | 220/380 | 1400 | 2880 | 48 |
| 4A | 0.25 | 220/380 | 1400 | 4370 | 84 |
| 4.5A | 0.37 | 220/380 | 1400 | 5300 | 88 |
| 5A | 0.37 | 220/380 | 1400 | 5760 | 88 |
| 5.6A | 0.55 | 220/380 | 1400 | 8350 | 110 |
| 6A | 1.1 | 220/380 | 1450 | 12294 | 187 |
| 7A | 2.2 | 220/380 | 1450 | 22170 | 239 |

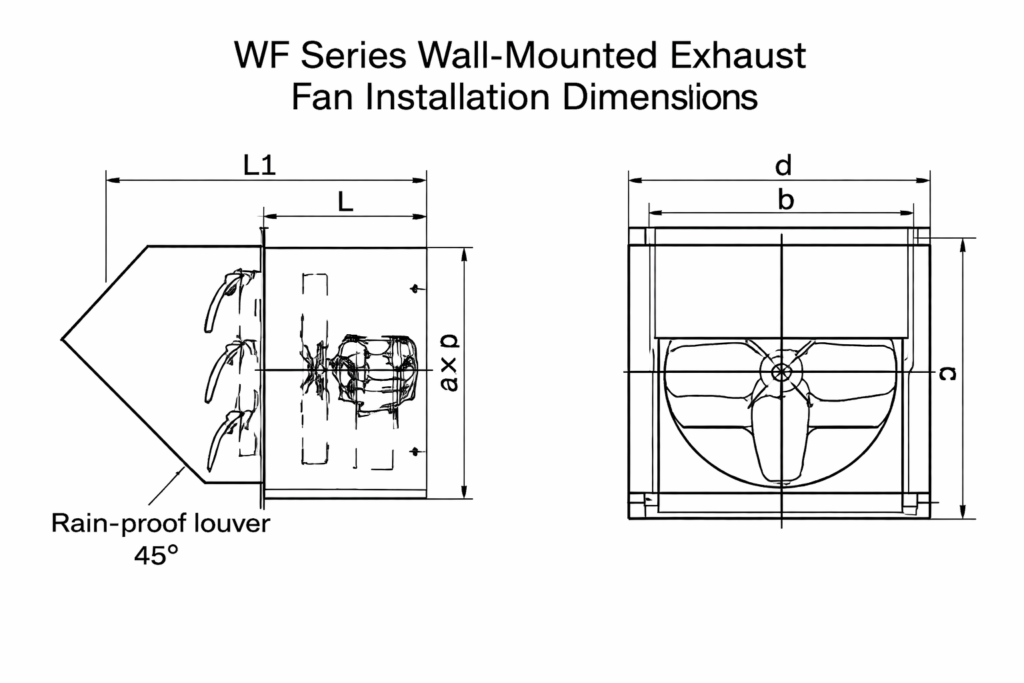

Technical Illustration
