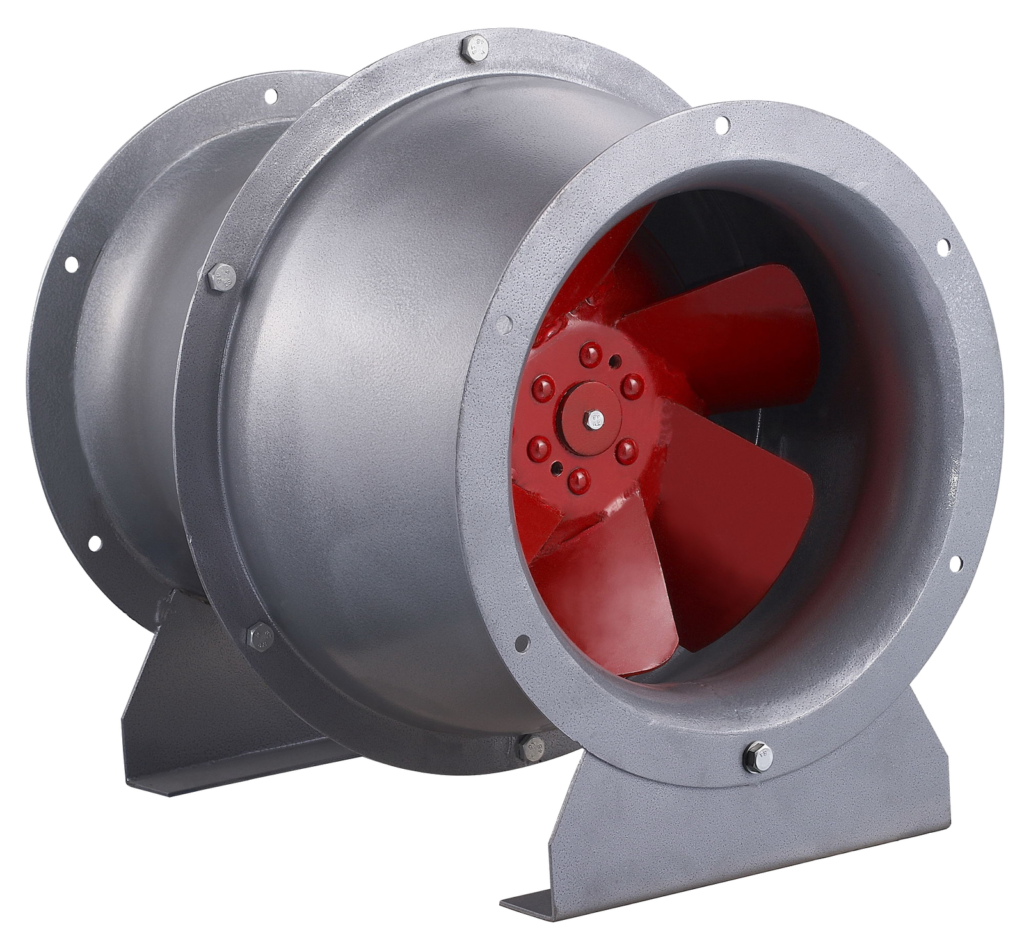

Overview Diagonal-flow duct fan that combines axial and centrifugal characteristics for compact duct installations and general building ventilation. Typical Applications Typical applications include compact duct installations…
Overview
OverviewDiagonal-flow duct fan that combines axial and centrifugal characteristics for compact duct installations and general building ventilation.Typical ApplicationsTypical applications include compact duct installations and general building ventilation.Selection NotesConfirm the mounting position, duct connection, airflow direction and system resistance before selection.
Technical Parameters
| Model(Nº) | Power(kW) | Rotation(r/min) | Volume(m³/h) | Pressure(Pa) | Staticpressure(Pa) | Noise dB(A) |
|---|---|---|---|---|---|---|
| 3.0F | 0.25 | 1400 | 864~2559 | 179~125 | 148~77 | ≤64 |
| 3.5S | 0.18 | 910 | 908~2725 | 107~75 | 99~55 | ≤60 |
| 3.5F | 0.37 | 1400 | 1372~4116 | 243~170 | 234~120 | ≤67 |
| 4.0S | 0.25 | 910 | 1836~3642 | 151~89 | 142~49 | ≤67 |
| 4.0F | 0.75 | 1400 | 2825~5603 | 359~211 | 336~118 | ≤78 |
| 4.5S | 0.37 | 910 | 2383~4506 | 186~141 | 176~102 | ≤68 |
| 4.5F | 1.1 | 1400 | 3664~6932 | 441~332 | 417~242 | ≤82 |
| 5.0S | 0.75 | 910 | 3416~7257 | 226~143 | 212~79 | ≤71 |
| 5.0F | 2.2 | 1420 | 5338~11339 | 552~350 | 518~192 | ≤84 |
| 6.0S | 1.5 | 960 | 7332~13677 | 332~246 | 300~122 | ≤79 |
| 6.0F | 5.5 | 1450 | 11075~20660 | 758~561 | 685~277 | ≤90 |
| 7.0S | 3 | 960 | 9232~18309 | 440~333 | 413~225 | ≤81 |
| 8.0S | 7.5 | 960 | 19645~32524 | 637~476 | 564~276 | ≤85 |
