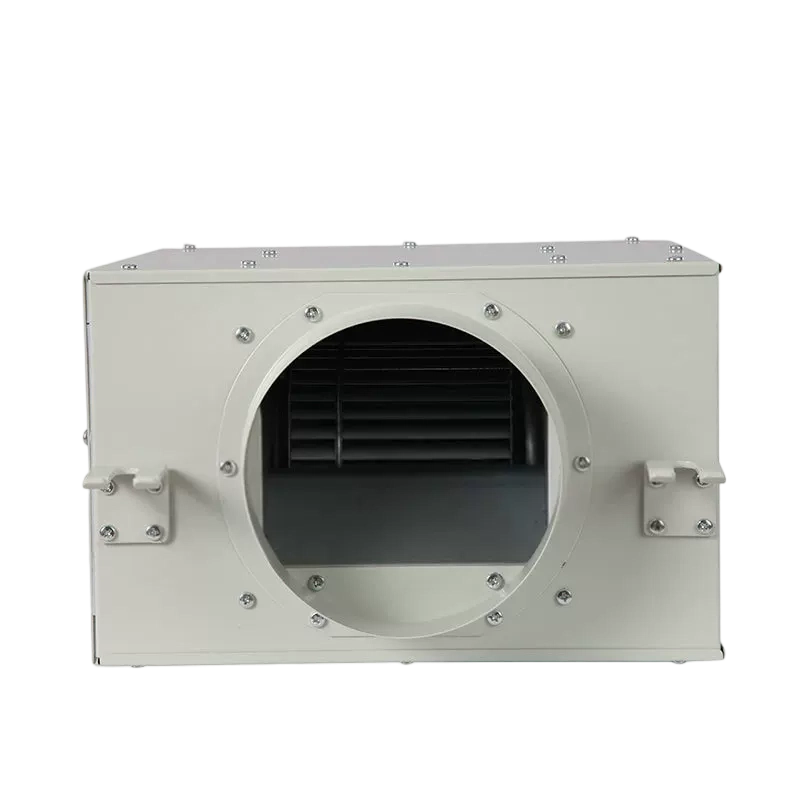

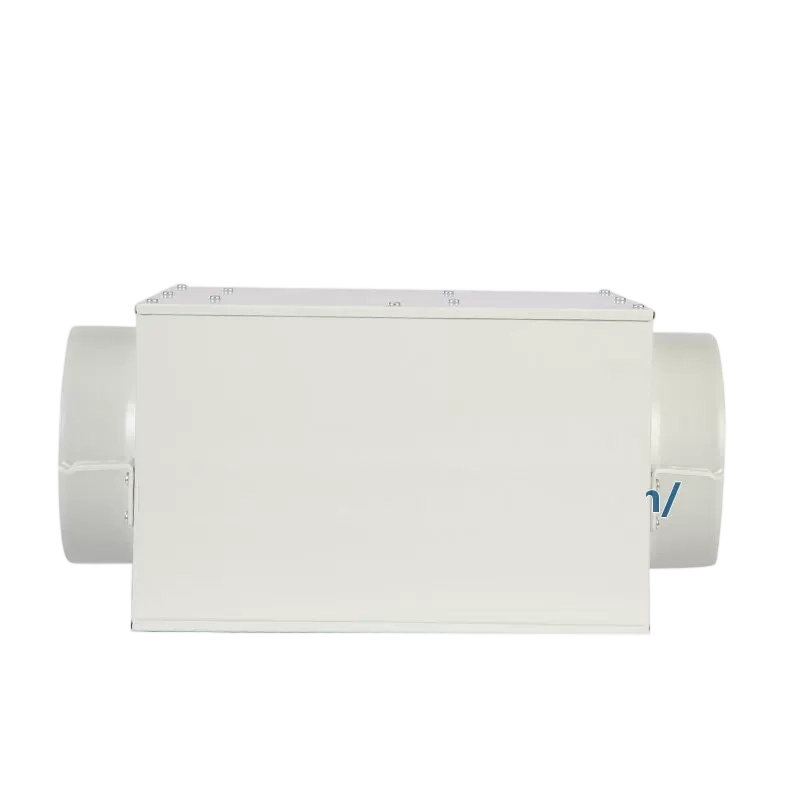

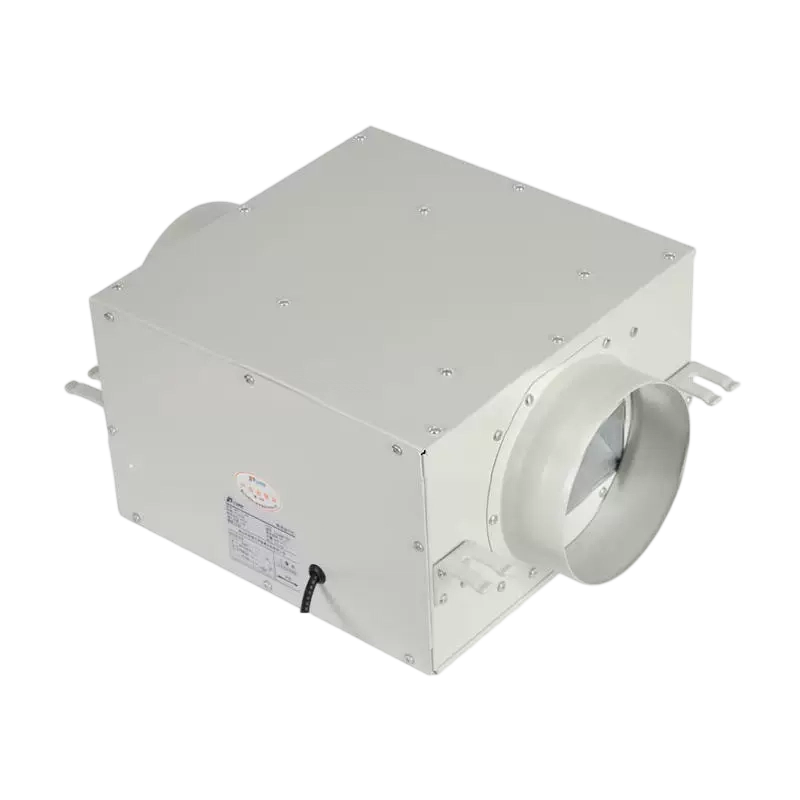

Overview Low-noise duct supply fan for offices, shops, hotels and other noise-sensitive air-supply applications. Typical Applications Typical applications include offices, shops, hotels and other noise-sensitive air-supply…
Overview
OverviewLow-noise duct supply fan for offices, shops, hotels and other noise-sensitive air-supply applications.Typical ApplicationsTypical applications include offices, shops, hotels and other noise-sensitive air-supply applications.Selection NotesConfirm the mounting position, duct connection, airflow direction and system resistance before selection.
Technical Parameters
| Model(Nº) | Voltage(V) | Power(W) High | Power(W) Low | Rotation(r/min) High | Rotation(r/min) Low | Volume(m³/h) High | Volume(m³/h) Low | Static Pressure(Pa) High | Static Pressure(Pa) Low | Noise dB(A) High | Noise dB(A) Low |
|---|---|---|---|---|---|---|---|---|---|---|---|
| JYF1.0L-100 | 220 | 17 | / | 1320 | / | 116 | / | 84 | / | 18 | / |
| JYF1.0H-100 | 220 | 36 | / | 2100 | / | 230 | / | 165 | / | 21 | / |
| JYF1.2-150 | 220 | 45 | / | 1320 | / | 368 | / | 136 | / | 27 | / |
| JYF1.5-150 | 220 | 90 | / | 1380 | / | 528 | / | 182 | / | 32 | / |
| JYF1.8-200 | 220 | 135 | 90 | 1400 | 1220 | 780 | 680 | 245 | 186 | 34 | 31 |
| JYF2.0-200 | 220 | 175 | 115 | 1400 | 1220 | 950 | 830 | 285 | 216 | 36 | 32 |
| JYF2.3-200 | 220 | 230 | 155 | 1400 | 1220 | 1220 | 1060 | 390 | 298 | 41 | 38 |
| JYF2.5L-250 | 220 | 250 | 180 | 1050 | 940 | 1720 | 1540 | 340 | 275 | 42 | 39 |
| YF2.5H-250 | 220 | 400 | 260 | 1420 | 1230 | 2150 | 1865 | 490 | 370 | 45 | 42 |
