Overview

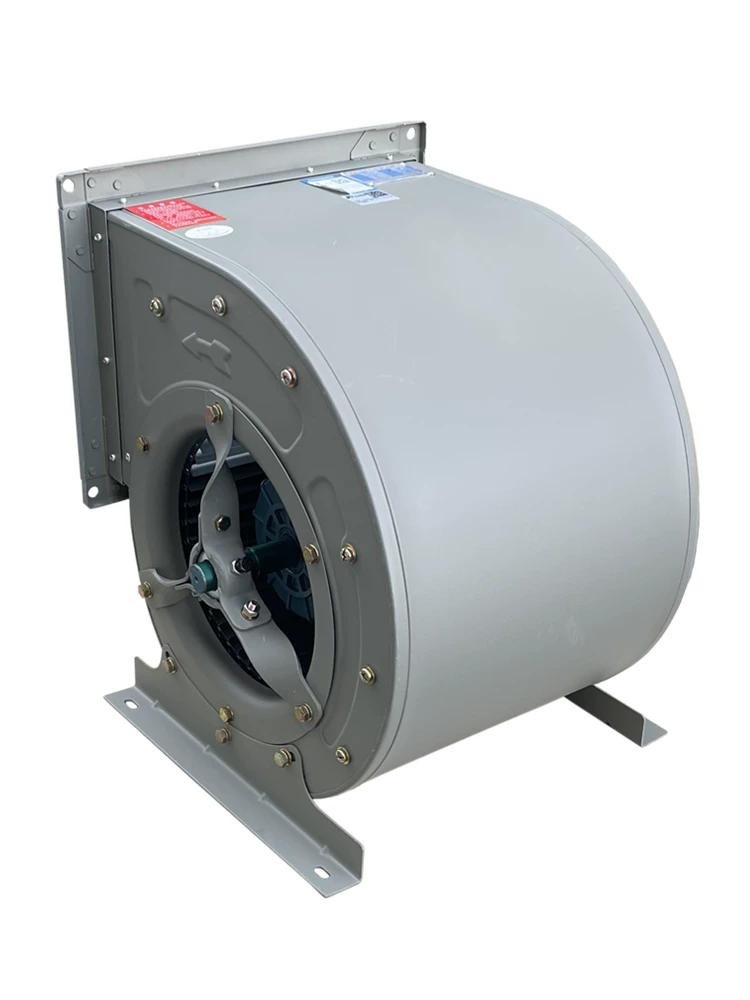

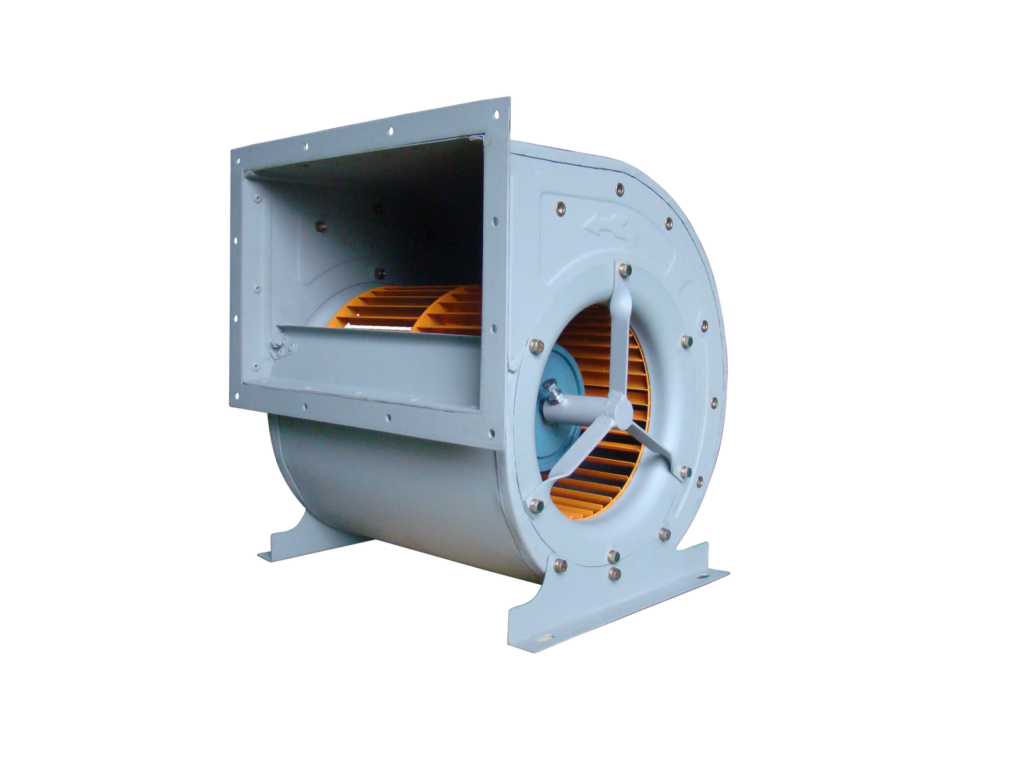

OverviewCentrifugal fan for air-conditioning systems in factories, hotels, large shopping facilities and office buildings.Typical ApplicationsTypical applications include air-conditioning systems in factories, hotels, large shopping facilities and office buildings.Selection NotesConfirm the installation layout, operating medium and required airflow duty against the relevant product catalogue before selection.

Technical Parameters

220V fan series

Model(Nº)	Power(kW)	Voltage(V)	Type	Volume(m³/h)	Pressure(Pa)	Staticpressure(Pa)
2A	0.22	220	High	1044~2314	207~177	192~106
2A	0.22	220	Medium	919~2036	160~137	149~82
2A	0.22	220	Low	836~1851	133~113	123~68
2A	0.10	220	High	710~1573	96~98	89~49
2A	0.10	220	Medium	668~1481	85~72	79~43
2A	0.10	220	Low	627~1388	75~64	69~38
2.25A	0.25	220	High	1110~2393	119~99	110~57
2.25A	0.25	220	Medium	1045~2252	106~87	98~50
2.25A	0.25	220	Low	914~1971	81~67	75~38
2.25A	0.55	220	High	1763~3800	300~249	278~143
2.25A	0.55	220	Medium	1502~3237	218~180	201~104
2.25A	0.55	220	Low	1306~2680	165~136	152~78
2.5A	0.37	220	High	1178~2680	159~163	148~107
2.5A	0.37	220	Medium	1109~2522	141~144	131~95
2.5A	0.37	220	Low	1040~2365	124~127	116~83
2.5A	0.75	220	High	1377~3941	344~352	321~231
2.5A	0.75	220	Medium	1594~3626	291~298	272~196
2.5A	0.75	220	Low	1386~3153	220~226	205~148

380V fan series

Model(Nº)	Power(kW)	Voltage(V)	Volume(m³/h)	Pressure(Pa)	Staticpressure(Pa)
2.0A	0.18-4P	380	852~1532	227~208	217~176
2.0A	0.25-4P	380	1066~2348	251~245	213~182
2.0A	0.32-4P	380	1568~3010	266~245	219~145
2.0A	0.12-6P	380	931~1759	110~102	92~60
2.0A	0.18-6P	380	1350~2501	114~91	94~40
2.25A	0.32-4P	380	1304~2090	327~320	312~282
2.25A	0.45-4P	380	2159~3426	320~301	260~209
2.25A	0.55-4P	380	2387~3976	305~254	243~151
2.25A	0.18-6P	380	1642~2548	160~147	137~92
2.25A	0.25-6P	380	1905~3107	142~110	107~50
2.5A	0.55-4P	380	1373~2577	449~470	433~427
2.5A	0.8-4P	380	2265~4302	455~502	415~380
2.5A	0.25-6P	380	1576~2770	220~250	200~198
2.8A	1.1-4P	380	2463~4598	398~452	367~344
2.8A	1.5-4P	380	3504~5866	500~422	438~258
2.8A	0.37-6P	380	2363~3863	241~231	213~156
2.8A	0.55-6P	380	2925~4450	270~194	226~127
3.0A	1.5-4P	380	3071~5520	682~750	642~649
3.0A	0.55-6P	380	2033~4225	298~336	285~274
3.15A	1.8-4P	380	3041~5565	744~836	711~741
3.15A	2.2-4P	380	4343~6820	820~839	749~699
3.15A	0.8-6P	380	2875~5408	359~353	328~265
3.55A	3.0-4P	380	4087~8165	952~979	915~847
3.55A	4.0-4P	380	7424~10913	976~938	852~703
3.55A	0.8-6P	380	2803~5620	407~451	388~407
3.55A	1.5-6P	380	4002~8633	459~418	418~271
3.55A	0.55-8P	380	3301~5646	257~248	230~185
4.0A	1.5-6P	380	3080~6380	552~605	539~555
4.0A	1.8-6P	380	5088~7526	576~656	538~587
4.0A	2.2-6P	380	6842~9130	632~665	568~550
4.0A	1.1-8P	380	4812~6847	355~374	319~309
4.5A	4.0-6P	380	8437~13617	805~868	744~708
4.5A	5.5-6P	380	11750~18520	841~869	722~539
4.5A	7.5-6P	380	13710~21500	867~881	705~483
4.5A	2.2-8P	380	9033~13350	462~502	410~309
5.0A	6.0-6P	380	11441~20500	887~950	822~812
5.0A	7.5-6P	380	13845~23433	938~974	841~762
5.0A	4.0-8P	380	11883~18349	593~625	494~412
