Centrifugal Fans
Overview Centrifugal dust fan for extracting and conveying air containing wood chips, sand dust, fibre and similar particles. Typical Applications Typical applications include extracting and conveying…
Overview

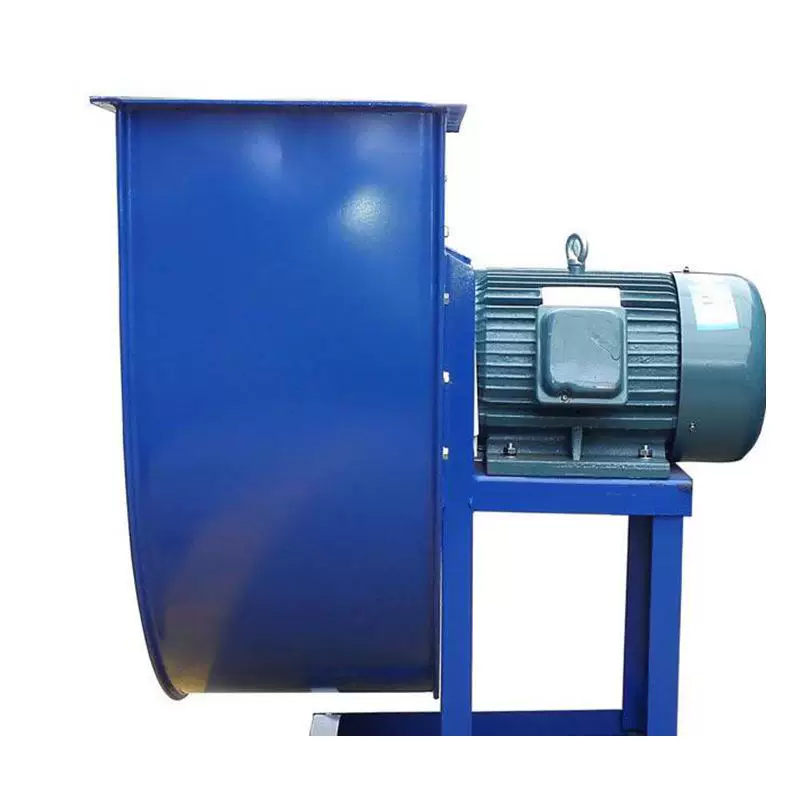

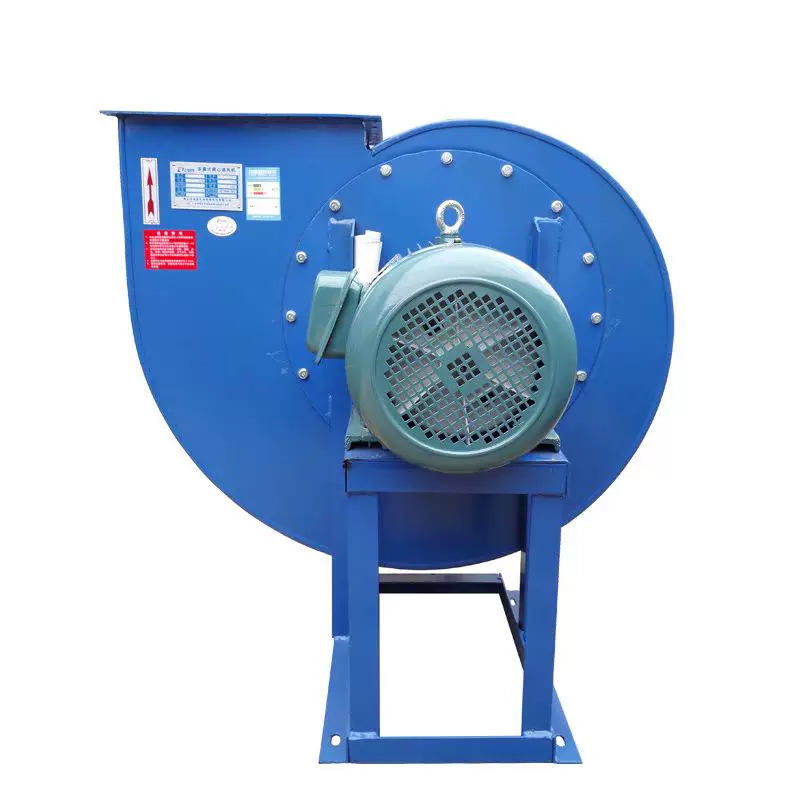

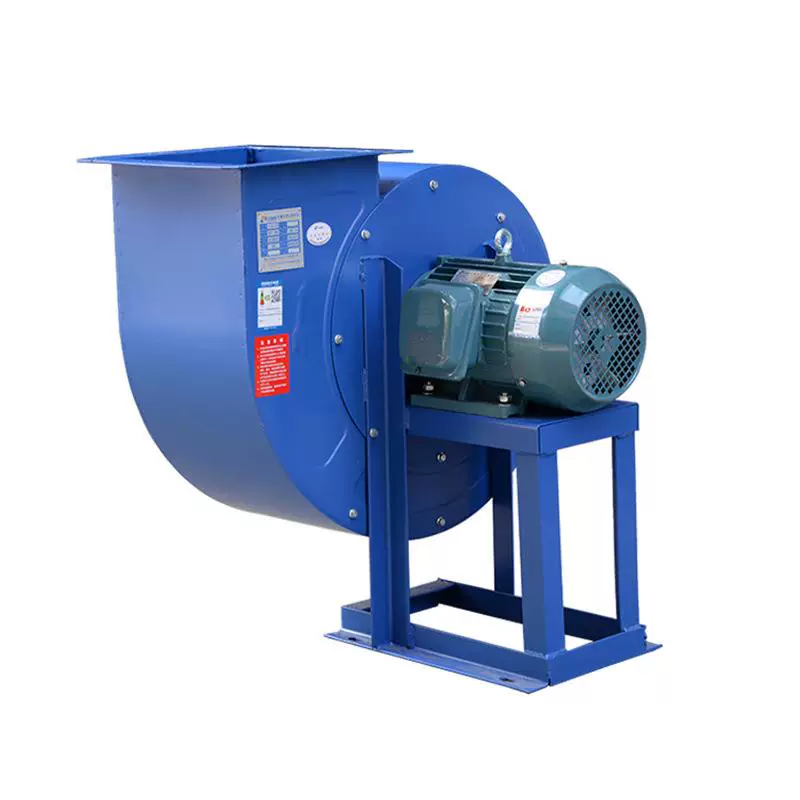

OverviewCentrifugal dust fan for extracting and conveying air containing wood chips, sand dust, fibre and similar particles.Typical ApplicationsTypical applications include extracting and conveying air containing wood chips, sand dust, fibre and similar particles.Selection NotesConfirm the installation layout, operating medium and required airflow duty against the relevant product catalogue before selection.
Technical Parameters
| Model(Nº) | Power(kW) | Rotation(r/min) | Volume(m³/h) | Pressure(Pa) | Staticpressure(Pa) |
|---|---|---|---|---|---|
| CFJ-3.6A | 2.2 | 2800 | 2724~5543 | 1990~840 | 1898~480 |
| CFJ-3.6A | 0.55 | 1400 | 1362~2772 | 498~210 | 475~132 |
| CFJ-4.0A | 4 | 2900 | 4048~6865 | 2448~1075 | 2317~737 |
| CFJ-4.0A | 1.1 | 1450 | 2024~3800 | 612~310 | 580~198 |
| CFJ-4.5A | 7.5 | 2900 | 6846~11535 | 3095~1073 | 2857~500 |
| CFJ-4.5A | 1.1 | 1450 | 3423~5770 | 775~290 | 715~150 |
| CFJ-5.0A | 11 | 2900 | 7260~15227 | 3943~1332 | 3733~510 |
| CFJ-5.0A | 2.2 | 1450 | 3630~7615 | 990~350 | 935~180 |
| CFJ-5.6A | 18.5 | 2900 | 10362~21800 | 4864~1200 | 4644~480 |
| CFJ-5.6A | 2.2 | 1450 | 5181~10200 | 1216~520 | 1161~430 |
