Centrifugal Fans
Overview Multi-wing centrifugal fan for continuous ventilation in hotels, shopping areas, theatres, basements and similar spaces. Typical Applications Typical applications include continuous ventilation in hotels, shopping…
Overview

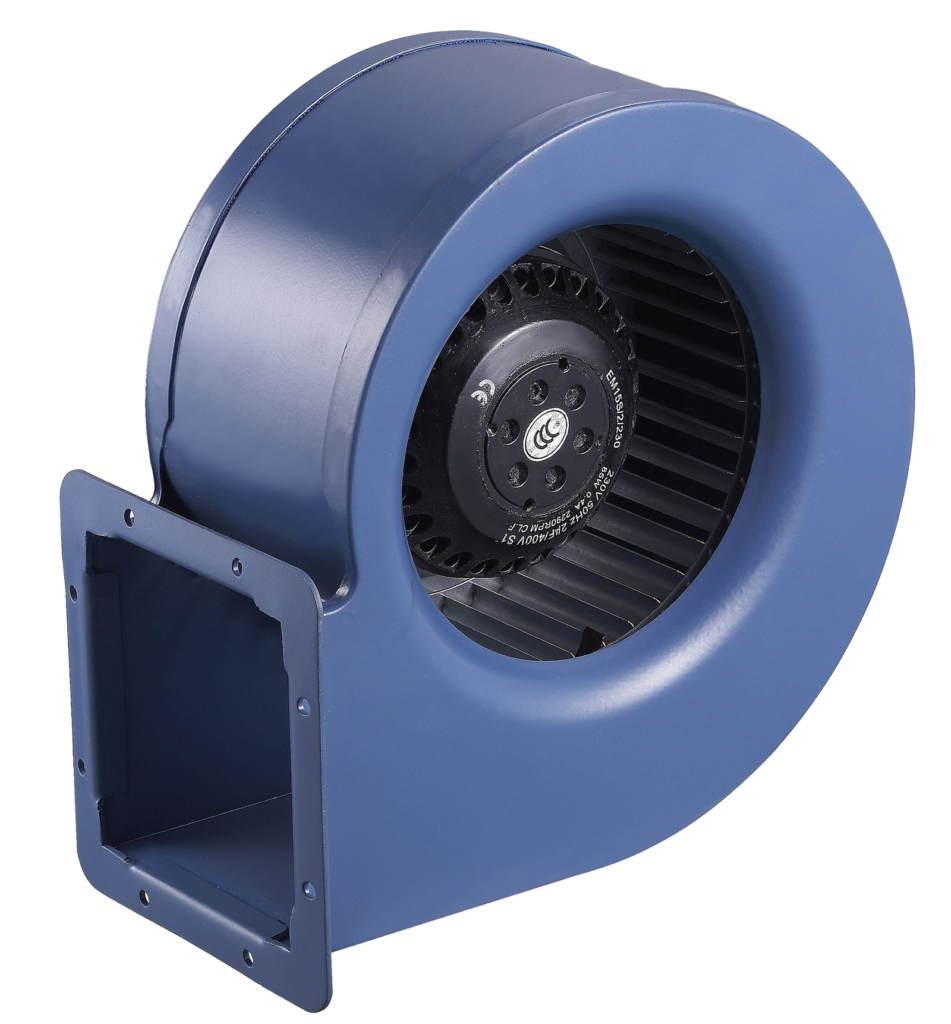

OverviewMulti-wing centrifugal fan for continuous ventilation in hotels, shopping areas, theatres, basements and similar spaces.Typical ApplicationsTypical applications include continuous ventilation in hotels, shopping areas, theatres, basements and similar spaces.Selection NotesConfirm the installation layout, operating medium and required airflow duty against the relevant product catalogue before selection.
Technical Parameters
| Model(NP) | Power(kW) | Voltage(V) | Rotation(r/min) | Volume(m³/h) | Pressure(Pa) | Noise dB(A) |
|---|---|---|---|---|---|---|
| 1.3A | 0.18 | 220/380 | 2800 | 405 | 450 | ≤75 |
| 1.6A | 0.25 | 220/380 | 2800 | 504 | 860 | ≤75 |
| 1.6A | 0.37 | 220/380 | 2800 | 660 | 850 | ≤76 |
| 2.0A | 0.55 | 220/380 | 2800 | 860 | 1020 | ≤76 |
| 2.0A | 0.75 | 220/380 | 2800 | 1200 | 1210 | ≤80 |
| 2.15A | 1.5 | 220/380 | 2800 | 1900~2500 | 1286~988 | ≤82 |
| 2.25A | 2.2 | 220/380 | 2800 | 1940~2626 | 1564~1536 | ≤85 |
Overview Double-suction centrifugal fan for indoor ventilation in factories, warehouses and larger buildings. Typical Applications Typical applications include indoor ventilation in factories, warehouses and larger buildings.…
View Product Details
Overview Low-noise multi-wing centrifugal fan for hotels, restaurants, malls, basements and general air-conditioning or ventilation systems. Typical Applications Typical applications include hotels, restaurants, malls, basements and…
View Product Details
Overview Multi-wing centrifugal fan for general building ventilation and air-conditioning support. It is intended for non-corrosive, non-explosive air. Typical Applications Typical applications include general building ventilation…
