Centrifugal Fans
Overview Centrifugal fan for dust extraction from air containing dust, wood chips and fibre, with additional use in general ventilation. Typical Applications Typical applications include dust…
Overview
OverviewCentrifugal fan for dust extraction from air containing dust, wood chips and fibre, with additional use in general ventilation.Typical ApplicationsTypical applications include dust extraction from air containing dust, wood chips and fibre, with additional use in general ventilation.Selection NotesConfirm the installation layout, operating medium and required airflow duty against the relevant product catalogue before selection.
Technical Parameters
C6-46 (Type A) Direct Driven Fan
| Model(Nº) | Power(kW) | Rotation(r/min) | Volume(m³/h) | Pressure(Pa) |
|---|---|---|---|---|
| 3A | 3 | 2900 | 1183~2891 | 1452~1205 |
| 4A | 2.2 | 1420 | 1404~3420 | 676~568 |
| 5A | 5.5 | 1450 | 2733~6660 | 1117~931 |
| 6A | 7.5 | 1450 | 4725~11552 | 1607~1343 |
| 6A | 3 | 960 | 3130~7045 | 706~598 |
| Model(Nº) | Power(kW) | Rotation(r/min) | Volume(m³/h) | Pressure(Pa) |
|---|---|---|---|---|
| 8C | 18.5 | 1085 | 16975~20415 | 1480~1333 |
| 8C | 15 | 1085 | 8375~15255 | 1607~1539 |
| 8C | 15 | 1015 | 14288~19124 | 1353~1166 |
| 8C | 11 | 1015 | 7840~12676 | 1401~1382 |
| 8C | 11 | 905 | 12750~17070 | 1068~922 |
| 8C | 7.5 | 905 | 6990~11310 | 1117~1098 |
| 8C | 7.5 | 864 | 10790~13540 | 1000~941 |
| 8C | 5.5 | 864 | 6655~9415 | 1020 |
| 8C | 7.5 | 796 | 11230~15040 | 833~715 |
| 8C | 5.5 | 796 | 6150~9960 | 862~853 |
| 8C | 5.5 | 725 | 7910~13685 | 715~598 |
| 8C | 3 | 725 | 5600~6755 | 715~725 |
| 8C | 4 | 625 | 9186~12300 | 559~480 |
| 8C | 3 | 625 | 5034~8148 | 579~569 |
| 10C | 37 | 1000 | 26900~36050 | 2068~1803 |
| 10C | 30 | 1000 | 20300~24000 | 2156~2136 |
| 10C | 30 | 900 | 21830~34450 | 1735~1460 |
| 10C | 22 | 900 | 12300~18300 | 1754~1745 |
| 10C | 22 | 800 | 21540~28850 | 1323~1156 |
| 10C | 18.5 | 800 | 10920~19200 | 1382~1369 |
| 10C | 18.5 | 710 | 21000~25000 | 1000~911 |
| 10C | 11 | 710 | 9000~19000 | 1098~1039 |
| 10C | 11 | 630 | 8610~22700 | 862~715 |
| 10C | 7.5 | 560 | 7650~20200 | 676~569 |
| 12C | 55 | 768 | 44600~48770 | 1607~1509 |
| 12C | 37 | 768 | 32330~40500 | 1784~1675 |
| 12C | 30 | 768 | 20000~28220 | 1823~1813 |
| 12C | 37 | 720 | 34220~45800 | 1529~1323 |
| 12C | 30 | 720 | 18780~30360 | 1597~1560 |
| 12C | 30 | 670 | 31830~42600 | 1323~1147 |
| 12C | 22 | 670 | 17470~28240 | 1382~1353 |
| 12C | 22 | 628 | 23100~30860 | 1215~1116 |
| 12C | 15 | 628 | 16340~19725 | 1215~1225 |
| 12C | 22 | 582 | 30680~36900 | 951~862 |
| 12C | 15 | 582 | 15130~24460 | 1029~1019 |
| 12C | 15 | 530 | 25220~33770 | 833~715 |
| 12C | 11 | 530 | 13820~22370 | 862~853 |
| 12C | 11 | 483 | 22950~25540 | 686~557 |
| 12C | 7.5 | 483 | 12590~20360 | 715~705 |
| 12C | 7.5 | 435 | 18360~23040 | 559~540 |
| 12C | 5.5 | 435 | 11340~16020 | 588~579 |

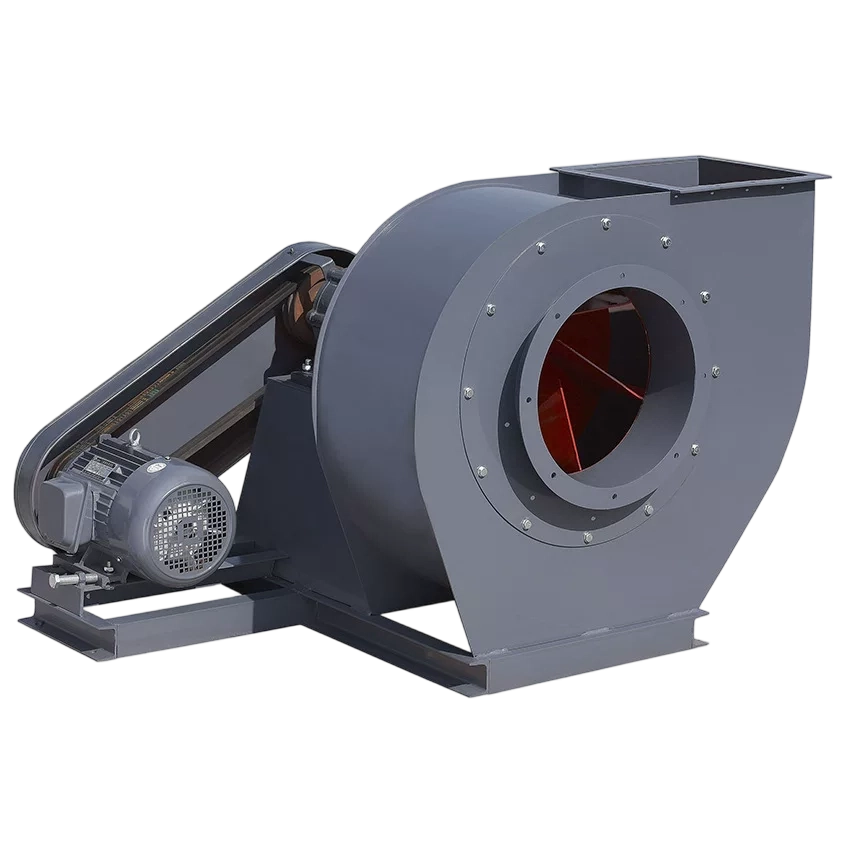

C6-46 (Type C) Belt Driven Fan
| Model(Nº) | Power(kW) | Rotation(r/min) | Volume(m³/h) | Pressure(Pa) |
|---|---|---|---|---|
| 4C | 5.5 | 2320 | 2240~5460 | 1735~1441 |
| 4C | 4 | 2030 | 1962~4790 | 1333~1107 |
| 4C | 3 | 1810 | 1747~4260 | 1058~882 |
| 4C | 2.2 | 1665 | 1608~3918 | 892~745 |
| 4C | 1.5 | 1520 | 1468~3582 | 745~617 |
| 4C | 1.1 | 1305 | 1260~3080 | 549~461 |
| 5C | 7.5 | 1740 | 3280~8005 | 1627~1333 |
| 5C | 5.5 | 1620 | 3054~7450 | 1401~1156 |
| 5C | 4 | 1390 | 2620~6400 | 1029~853 |
| 5C | 3 | 1275 | 2404~5860 | 862~715 |
| 5C | 2.2 | 1160 | 2183~5340 | 715~598 |
| 5C | 2.2 | 1004 | 4378~4781 | 510~480 |
| 5C | 1.5 | 1004 | 1960~3975 | 579~529 |
| 6C | 7.5 | 1350 | 8022~10740 | 1343~1156 |
| 6C | 5.5 | 1350 | 4398~7116 | 1400~1372 |
| 6C | 7.5 | 1255 | 9120~9920 | 1068~1000 |
| 6C | 5.5 | 1255 | 4080~8282 | 1205~1117 |
| 6C | 5.5 | 1160 | 6988~9219 | 990~853 |
| 6C | 4 | 1160 | 3780~6111 | 1029~1020 |
| 6C | 4 | 1060 | 6294~8427 | 823~715 |
| 6C | 3 | 1060 | 3450~5583 | 862~853 |
| 6C | 3 | 965 | 5729~7670 | 686~588 |
| 6C | 2.2 | 965 | 3141~5082 | 715~705 |
| 6C | 2.2 | 870 | 2836~6910 | 579~480 |
