Axial Fan Series

SF(B) axial fan

Category: Axial Fan Series Description Description SF(B) axial fan is a high-performance ventilation solution manufactured by POPULA, a professional 100% direct source manufacturer. Engineered for the…

Category
Axial Fan Series
Series
Axial Fan Series

Overview

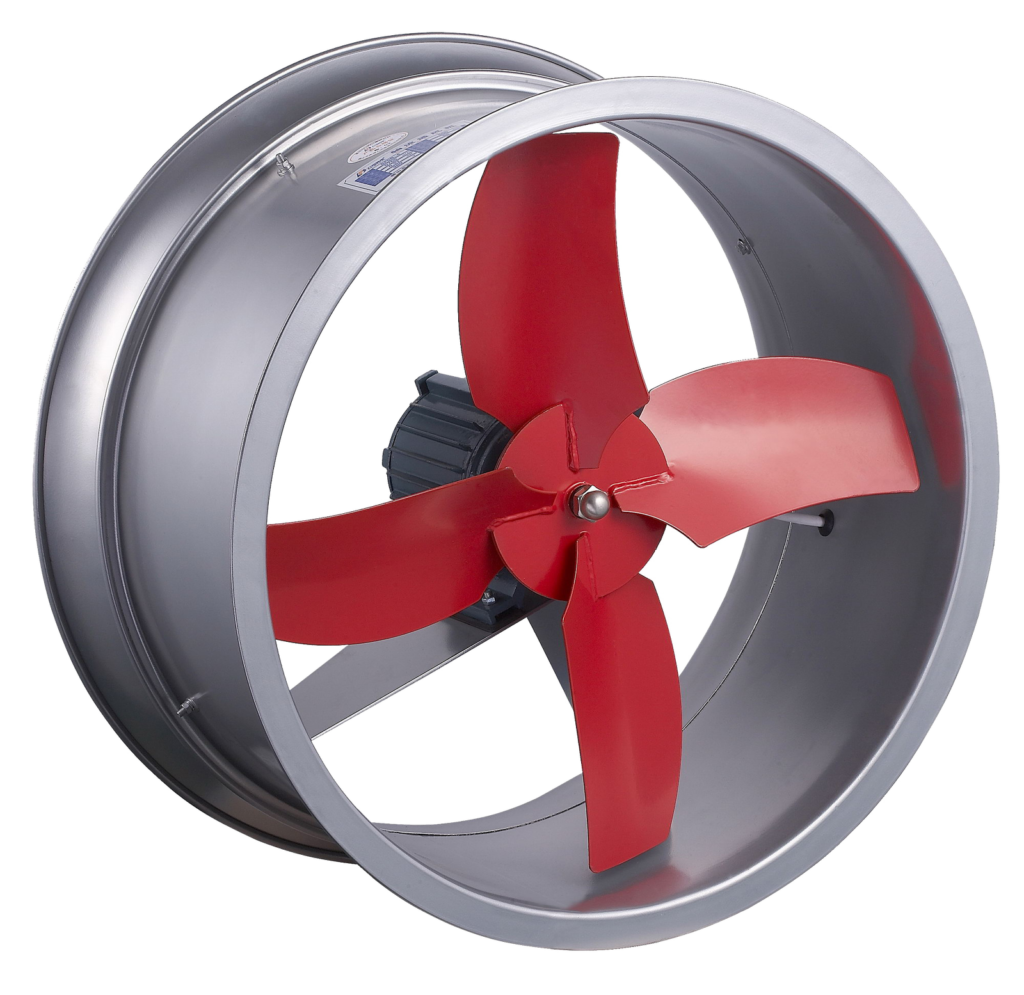

SF(B) axial fan is a high-performance ventilation solution manufactured by POPULA, a professional 100% direct source manufacturer. Engineered for the B2B global market, this series provides a factory-direct solution for efficient air movement in commercial and industrial environments, balancing superior airflow with an aesthetically refined design. Advanced Aerodynamics of the SF(B) axial fan Sourcing the SF(B) axial fan directly from our manufacturing facility ensures you receive a product optimized for both durability and quiet operation. The SF(B) series is distinguished by its unique twisted blade geometry and specialized casing, making it a premier choice for facility managers who prioritize performance and ease of maintenance. Special Twisted Blade Design: The SF(B) axial fan features precision-engineered twisted blades that maximize air volume while significantly reducing operational noise compared to standard axial fans. Flange Flanging Casing: Built with a reinforced flange flanging casing, this fan offers enhanced structural integrity and a secure mounting interface for various installation environments. Advanced Surface Treatment: Utilizing an industry-leading painting process, the fan maintains a smooth, high-gloss, and beautiful finish that resists wear and professionalizes any workspace. Easy Maintenance Engineering: Designed with a rational structure that allows for straightforward access and simplified cleaning, ensuring a long and stable service life. Versatile Application: An ideal air transport solution for workshop storage, warehouses, and places of recreation where consistent fresh air is essential. To ensure optimal safety and performance, the SF(B) axial fan is designed for use with non-flammable, non-explosive, and non-corrosive gases, with a maximum operating temperature of 50°C. Trust POPULA for professional technical support and competitive wholesale pricing for all your industrial axial ventilation requirements.

Technical Parameters

Model(Nº) Power(kW) Voltage(V) Rotation(r/min) Volume(m³/h) Pressure(Pa) Noise dB(A)
2B 0.06 220 1400 900 25 ≤58
2.5B 0.09 220/380 1400 1300 26 ≤59
3B 0.12 220/380 1400 1800 30 ≤61
3.5B 0.18 220/380 1400 2880 55 ≤63
4B 0.25 220/380 1400 4370 84 ≤70
5B 0.18 380 910 3894 45 ≤68
5B 0.37 220/380 1400 5760 100 ≤73
5.6B 0.25 380 910 5470 50 ≤71
5.6B 0.37 380 1400 8092 110 ≤79
6B 0.55 220/380 1400 8660 122 ≤80
6B 0.37 380 910 5760 65 ≤73
7B 1.1 380 1400 14643 126 ≤83
7B 0.75 380 910 9146 85 ≤78

Dimensions

Model Ø1 Ø2 Ø3 Ø4 L L1 N-Ød Weight(kg)
SF-2B 210 230 260 – – 220 – – 3-Ø8 7
SF-2.5B 260 280 310 310 220 – – 3-Ø8 8
SF-3B 310 330 360 370 220 – – 3-Ø8 9
SF-3.5B 360 380 410 420 230 – – 4-Ø8 11
SF-4B 410 430 460 485 230 – – 4-Ø8 12
SF-5B 510 530 565 585 290 225 4-Ø8 19
SF-5.6B 565 585 620 630 290 225 4-Ø8 20
SF-6B 610 630 665 695 290 225 6-Ø8 22
SF-7B 710 735 770 780 350 – – 8-Ø8 43
SF-7B 710 735 770 780 350 – – 8-Ø8 40

Technical Illustration

Technical illustration 1
