High-Pressure & Material Conveying Fans
Overview Centrifugal material-conveying fan for pneumatic transport of light materials such as wood chips and fibre. Typical Applications Typical applications include pneumatic transport of light materials…
Overview

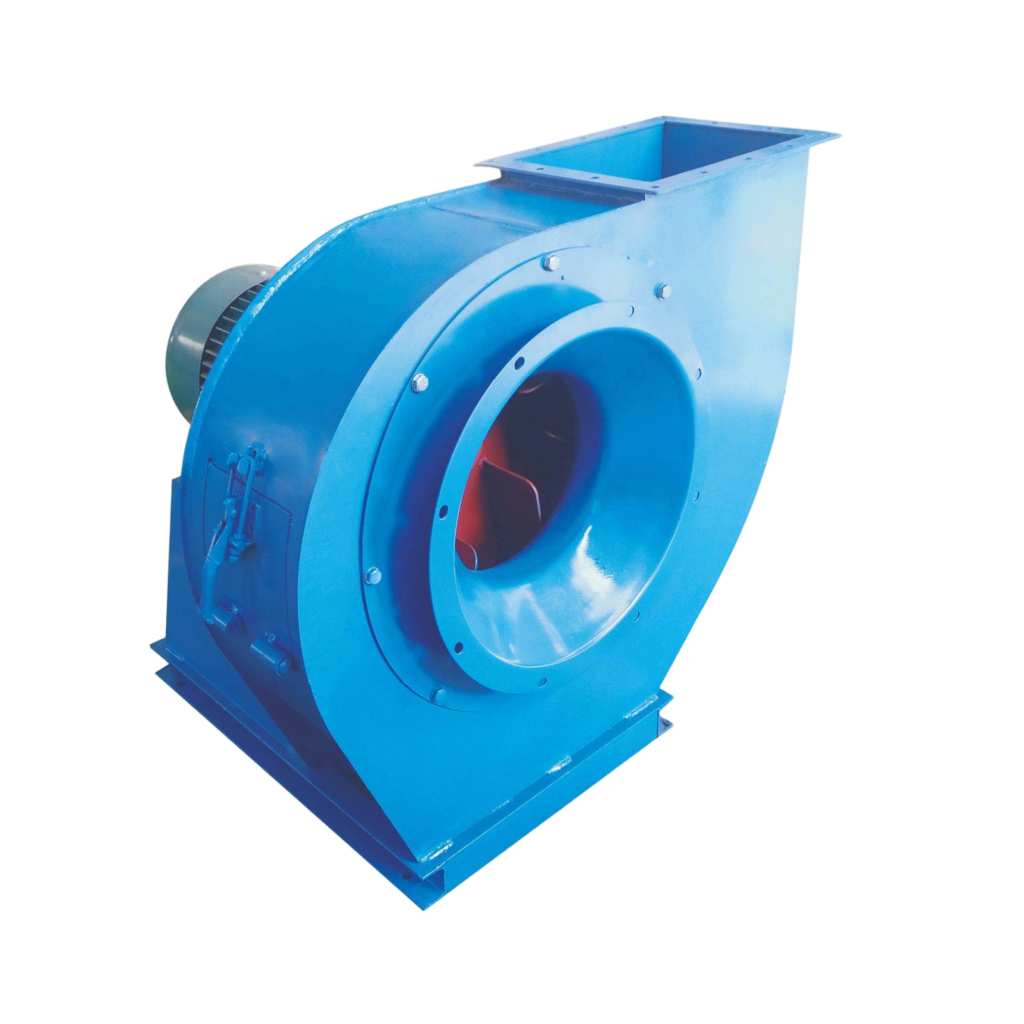

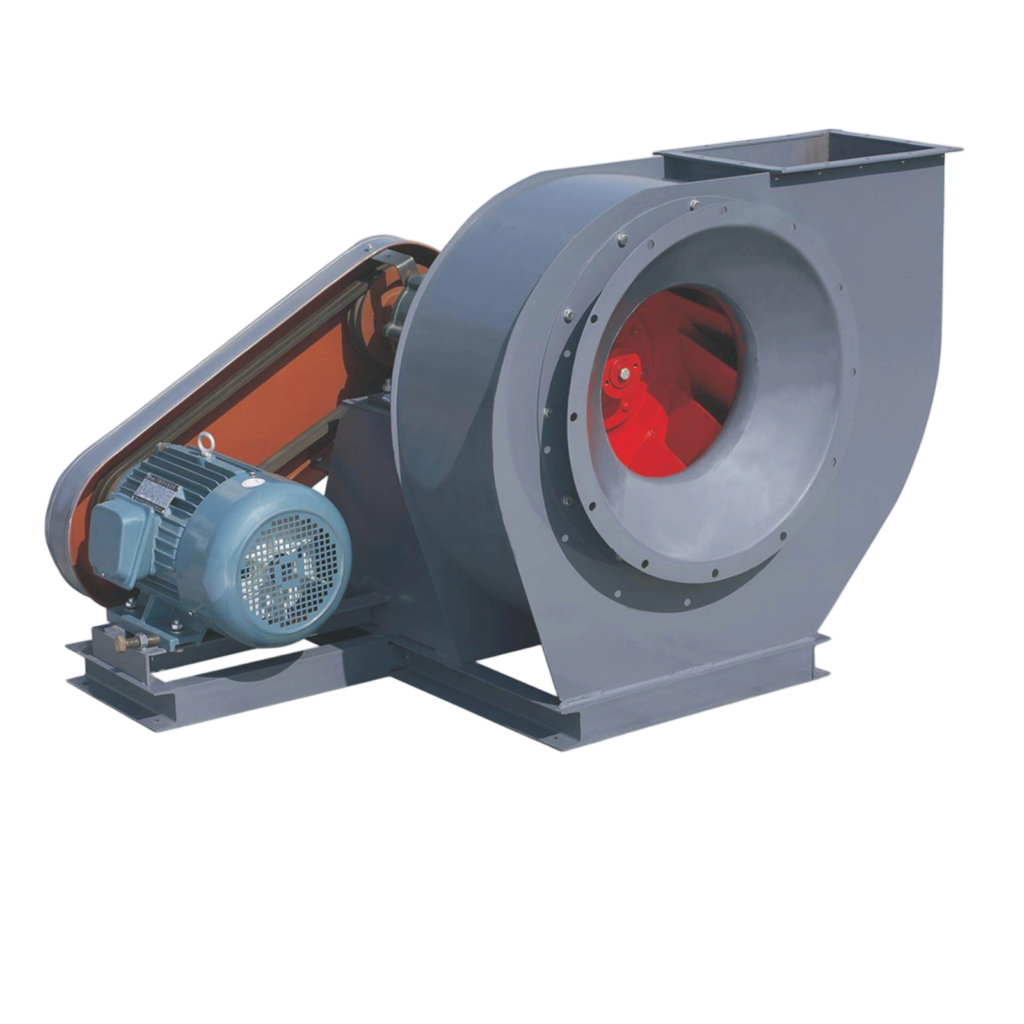

Overview Centrifugal material-conveying fan for pneumatic transport of light materials such as wood chips and fibre. Typical Applications Typical applications include pneumatic transport of light materials such as wood chips and fibre. Selection Notes Confirm the required pressure, operating medium and material or dust characteristics before selection.
Technical Parameters
| Model(Nº) | Power(kW) | Rotation(r/min) | Volume(m³/h) | Pressure(Pa) | Noise dB(A) |
|---|---|---|---|---|---|
| 4A | 5.5 | 2900 | 2980~7588 | 2436~1300 | ≤88 |
| 4.5A | 11 | 2900 | 4548~11313 | 3079~1527 | ≤96 |
| 5A | 15 | 2900 | 4681~12353 | 4019~2832 | ≤97 |
| 6C | 18.5 | 2450 | 5317~18453 | 4041~1630 | ≤99 |
| 6C | 15 | 2200 | 4774~16570 | 3336~1391 | ≤97 |
| 6C | 11 | 1900 | 4123~14310 | 2590~1139 | ≤94 |
| 6C | 7.5 | 1700 | 3689~12804 | 2153~1098 | ≤92 |
| 7C | 30 | 2200 | 7200~19800 | 4191~2815 | ≤101 |
| 7C | 22 | 2000 | 6545~18000 | 3533~2396 | ≤99 |
| 7C | 18.5 | 1800 | 5891~16200 | 2937~2016 | ≤97 |
| 7C | 15 | 1600 | 5236~14400 | 2405~1677 | ≤95 |
| 8C | 30 | 1800 | 8550~23400 | 3737~1869 | ≤100 |
| 8C | 22 | 1600 | 7600~20800 | 3037~1561 | ≤98 |
| 8C | 15 | 1450 | 6887~18850 | 2566~1353 | ≤96 |
| 8C | 11 | 1200 | 5700~15600 | 1883~1053 | ≤93 |
| 9C | 30 | 1450 | 9300~25800 | 2976~1549 | ≤99 |
| 9C | 18.5 | 1250 | 8017~22241 | 2178~1151 | ≤95 |
| 9C | 11 | 1000 | 6413~17793 | 1370~736 | ≤91 |
| 10C | 45 | 1450 | 13200~36900 | 3612~1917 | ≤103 |
| 10C | 30 | 1250 | 11379~31810 | 2736~1476 | ≤99 |
| 10C | 22 | 1120 | 10195~28502 | 2236~1224 | ≤97 |
