HTFC Centrifugal fire exhaust fan

Overview Cabinet centrifugal smoke-exhaust fan for ventilation and smoke removal in high-rise buildings, malls, basements and similar spaces. Typical Applications Typical applications include ventilation and smoke…

Category
Fire Smoke Exhaust Fans
Series
Fire Smoke Exhaust Fans
Request a Quote View All Products

Overview

OverviewCabinet centrifugal smoke-exhaust fan for ventilation and smoke removal in high-rise buildings, malls, basements and similar spaces.Typical ApplicationsTypical applications include ventilation and smoke removal in high-rise buildings, malls, basements and similar spaces.Selection NotesConfirm the smoke-exhaust duty, temperature rating and local fire-safety requirements before selection.

Technical Parameters

HTFC-I Single speed series

Model(No.) Power(kW) Rotation(r/min) Volume(m³/h) Pressure(Pa) Staticpressure(Pa)
HTFC-I-9-III 0.55 900 1328~3171 218~209 198~154
HTFC-I-9-II 0.75 1000 1476~3524 269~259 245~190
HTFC-I-9-I 1.1 1200 2346~4670 378~361 343~223
HTFC-I-9 1.5 1400 2736~5448 514~491 457~304
HTFC-I-9 2.2 1630 3398~6317 565~370 510~339
HTFC-I-10-III 0.75 900 2422~3905 215~151 190~101
HTFC-I-10-II 1.1 1000 2691~4339 256~186 234~108
HTFC-I-10-I 1.5 1200 3299~5207 381~265 338~155
HTFC-I-10 2.2 1400 3768~6075 520~365 460~211
HTFC-I-10 3 1630 3937~7919 709~600 635~515
HTFC-I-12-III 1.1 800 3221~6025 251~195 224~106
HTFC-I-12-II 1.5 900 2623~6778 315~247 285~135
HTFC-I-12-I 2.2 1120 4288~8021 488~407 414~367
HTFC-I-12 3 1250 5033~9414 610~475 549~260
HTFC-I-12 4 1430 5579~10633 809~660 730~596
HTFC-I-15-III 1.5 700 4934~8676 242~200 211~103
HTFC-I-15-II 2.2 820 5780~10164 332~273 288~160
HTFC-I-15-I 3 930 6526~10977 455~337 400~295
HTFC-I-15 4 1130 6815~11658 670~607 588~434
HTFC-I-15 5.5 1250 7330~12422 920~835 820~665
HTFC-I-18-III 2.2 600 6854~12375 283~203 240~109
HTFC-I-18-II 3 720 8150~14507 393~242 332~149
HTFC-I-18-I 4 820 9404~16738 441~272 440~200
HTFC-I-18 5.5 1000 10355~17056 752~385 687~218
HTFC-I-18 7.5 1100 10745~18766 920~550 840~330
HTFC-I-20-III 3 560 7343~15390 289~216 272~140
HTFC-I-20-II 4 610 8412~17628 378~283 356~184
HTFC-I-20-I 5.5 720 9613~20146 495~370 465~240
HTFC-I-20 7.5 850 10815~22737 758~645 633~356
HTFC-I-20 11 950 12563~28454 938~787 801~426
HTFC-I-22-III 4 550 11528~22666 335~218 307~110
HTFC-I-22-II 5.5 650 13624~26787 467~305 428~153
HTFC-I-22-I 7.5 720 16831~29672 607~373 525~187
HTFC-I-22 11 880 18706~33021 802~475 787~276
HTFC-I-22 15 950 19707~35983 1005~708 953~455
HTFC-I-25-IV 5.5 520 17107~27831 345~243 307~170
HTFC-I-25-III 7.5 650 19081~31042 430~303 383~215
HTFC-I-25-II 11 720 21713~35324 680~518 606~358
HTFC-I-25-I 15 760 22473~37205 840~671 763~502
HTFC-I-25 18.5 800 23656~42377 921~650 846~407
HTFC-I-25 22 860 27012~46720 1142~758 1047~480
HTFC-I-28-IV 7.5 500 21203~33778 393~355 351~275
HTFC-I-28-III 11 560 24321~38745 523~468 462~366
HTFC-I-28-II 15 650 27439~43712 625~590 588~460
HTFC-I-28-I 18.5 720 30557~48680 825~590 729~578
HTFC-I-28 22 800 33675~53647 990~897 886~702
HTFC-I-28 30 900 37417~57608 1224~1108 1094~866
HTFC-I-30-IV 11 500 24938~35334 494~426 450~360
HTFC-I-30-III 15 560 27931~39574 620~535 564~450
HTFC-I-30-II 18.5 600 29926~48202 723~614 647~516
HTFC-I-30-I 22 680 32420~52219 835~720 760~605
HTFC-I-30 30 750 33601~63015 1177~825 1107~691
HTFC-I-30 37 820 35129~66906 1425~986 1387~765
HTFC-I-33-V 11 400 30006~46447 366~303 318~208
HTFC-I-33-IV 15 450 34397~53244 481~398 418~273
HTFC-I-33-III 18.5 500 36592~56642 545~451 473~309
HTFC-I-33-II 22 550 38788~60041 612~506 532~347
HTFC-I-33-I 30 600 43179~66838 760~628 660~430
HTFC-I-33 37 650 47716~73562 927~766 804~525
HTFC-I-33 45 700 51533~79770 1084~896 940~638
HTFC-I-36-V 15 350 31926~52079 360~286 317~217
HTFC-I-36-IV 18.5 400 36487~59519 468~374 414~283
HTFC-I-36-III 22 450 41048~66959 593~474 524~359
HTFC-I-36-II 30 500 45608~74399 732~585 647~443
HTFC-I-36-I 37 550 50169~81839 886~707 783~536
HTFC-I-36 45 600 54730~89278 1054~842 932~638
HTFC-I-36 55 650 57801~100902 1289~815 1129~442
HTFC-I-40-V 30 430 52453~93220 663~438 572~378
HTFC-I-40-IV 37 480 58552~104060 827~546 747~493
HTFC-I-40-III 45 520 63431~112731 970~641 877~579
HTFC-I-40-II 55 580 70750~125738 1207~797 1091~720
HTFC-I-40-I 75 620 75629~134410 1379~910 1247~822
HTFC-I-40 90 680 82948~147417 1659~1096 1500~990
HTFC-I-44-V 37 400 75176~120135 809~460 796~447
HTFC-I-44-IV 45 430 80814~129146 935~532 920~517
HTFC-I-44-III 55 480 90211~144163 1165~663 1146~644
HTFC-I-44-II 75 530 99608~159180 1420~808 1397~785
HTFC-I-44-I 90 560 105246~168190 1585~902 1560~876
HTFC-I-44 110 600 112764~180203 1820~1035 1791~1005

HTFC- IlDouble speed series

Model Power(kW) Rotation(r/min) Volume(m³/h) Pressure(Pa) Static pressure(Pa)
HTFC-II-12-I 2.5/0.9 1050 4227~7908 430~335 387~183
HTFC-II-12-I 2.5/0.9 700 2818~5271 191~149 172~100
HTFC-II-12 3.2/1.1 1250 5033~9414 610~475 549~260
HTFC-II-12 3.2/1.1 830 3355~6276 271~211 243~116
HTFC-II-15-I 4.7/1.5 1050 7613~13386 574~473 501~245
HTFC-II-15-I 4.7/1.5 700 5075~8924 256~210 222~109
HTFC-II-15 6.7/2.2 1250 8811~15493 770~635 670~328
HTFC-II-15 6.7/2.2 830 5871~10329 342~281 298~146
HTFC-II-18-I 6.7/2.2 900 10259~18260 615~441 524~236
HTFC-II-18-I 6.7/2.2 600 6840~12173 274~196 233~105
HTFC-II-18 9.5/3.1 1050 11969~21303 838~600 714~321
HTFC-II-18 9.5/3.1 700 7979~14202 372~268 317~143
HTFC-II-20-I 6.7/2.2 800 10681~22385 610~456 574~295
HTFC-II-20-I 6.7/2.2 530 7121~14923 272~202 255~131
HTFC-II-20 9.5/3.1 900 12017~25183 773~578 727~374
HTFC-II-20 9.5/3.1 600 8011~16789 344~257 323~166
HTFC-II-20 12/4 950 12736~26692 865~646 814~419
HTFC-II-20 12/4 650 8651~20071 402~257 378~128
HTFC-II-22-I 9.5/3.1 800 16768~32969 708~460 649~231
HTFC-II-22-I 9.5/3.1 530 11179~21979 315~205 288~103
HTFC-II-22 12/4 900 18864~37090 895~582 820~292
HTFC-II-22 12/4 600 12576~24727 398~259 365~130
HTFC-II-22 15.5/5.1 950 18907~39167 1057~611 908~308
HTFC-II-22 15.5/5.1 630 13643~26827 470~306 429~154
HTFC-II-25-I 15.5/5.1 720 23687~38535 661~467 590~329
HTFC-II-25-I 15.5/5.1 480 15791~25689 294~207 262~146
HTFC-II-25 18/6.2 830 27305~44422 879~620 783~437
HTFC-II-25 18/6.2 550 18203~29614 390~275 347~194
HTFC-II-25-II 24/8.5 870 29554~46085 1088~768 1001~480
HTFC-II-25-II 24/8.5 570 19659~31983 456~321 407~226
HTFC-II-28-II 18/6.2 660 30680~49448 666~506 578~265
HTFC-II-28-II 18/6.2 440 20453~32965 296~225 257~118
HTFC-II-28-I 24/8.5 720 33934~52527 814~674 707~461
HTFC-II-28-I 24/8.5 480 22623~35018 362~300 314~205
HTFC-II-28 33/11 800 38582~59723 1053~871 914~597
HTFC-II-28 33/11 530 25722~39815 468~387 406~265
HTFC-II-30-II 24/8.5 650 35196~60535 840~589 750~390
HTFC-II-30-II 24/8.5 430 23464~40357 373~262 333~173
HTFC-II-30-I 33/11 720 38986~68055 1030~665 920~435
HTFC-II-30-I 33/11 480 25991~44703 458~321 408~212
HTFC-II-30 38/13 820 44805~73089 1407~785 1325~765
HTFC-II-30 38/13 540 29870~48726 549~381 517~267
HTFC-II-33-I 33/11 640 51305~72502 883~735 742~506
HTFC-II-33-I 33/11 425 34303~48335 392~328 330~225
HTFC-II-33 38/13 700 56115~79299 1056~883 887~605
HTFC-II-33 38/13 465 37410~52866 469~393 394~269
HTFC-II-36-I 38/13 540 50169~81839 886~707 783~536
HTFC-II-36-I 38/13 360 33640~54875 402~309 354~242
HTFC-II-36 47/16 600 54730~89299 1054~883 932~605
HTFC-II-36 47/16 400 36487~59519 468~374 414~283

Technical Illustration

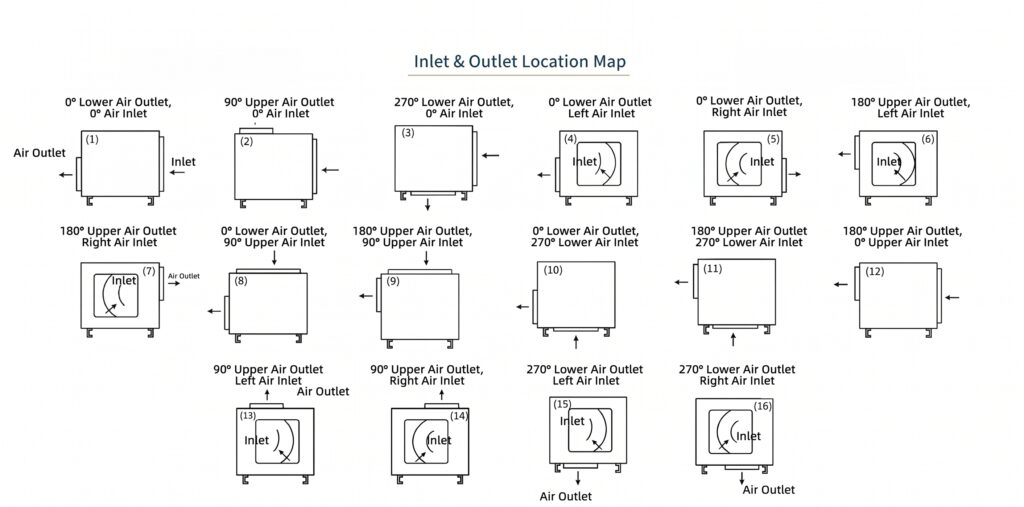

Technical illustration 1
