CZ middle pressure centrifugal fan

Overview Medium-pressure centrifugal fan for industrial ventilation and equipment support in factories, mines, machinery and plastics processing. Typical Applications Typical applications include industrial ventilation and equipment…

Category
Centrifugal Fans
Series
Centrifugal Fans
Request a Quote View All Products

Overview

OverviewMedium-pressure centrifugal fan for industrial ventilation and equipment support in factories, mines, machinery and plastics processing.Typical ApplicationsTypical applications include industrial ventilation and equipment support in factories, mines, machinery and plastics processing.Selection NotesConfirm the installation layout, operating medium and required airflow duty against the relevant product catalogue before selection.

Technical Parameters

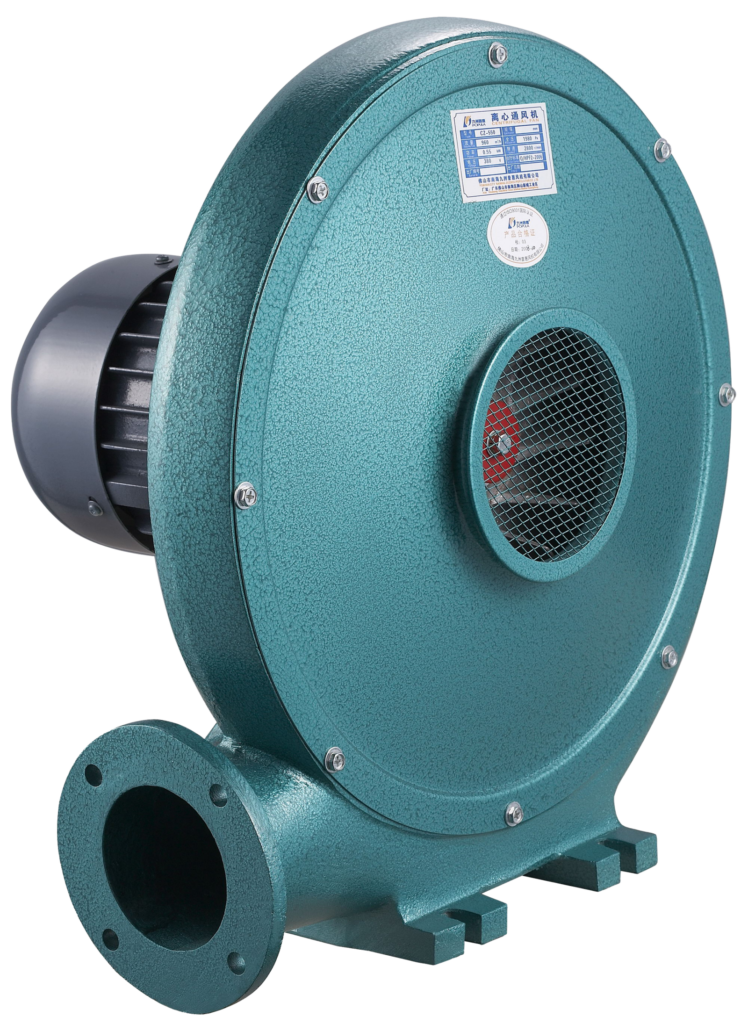

CZ Series

Model(Nº) Power(kW) Voltage(V) Rotation(r/min) Volume(m³/h) Pressure(Pa)
180W 0.18 220/380 2800 107~362 939~743
250W 0.25 220/380 2800 174~389 943~679
370W 0.37 220/380 2800 351~629 1696~1373
550W 0.55 220/380 2800 201~650 1746~1295
750W 0.75 0.75 2800 413~969 1790~1173
900W 0.9 220/380 2800 742~1045 1820~1584

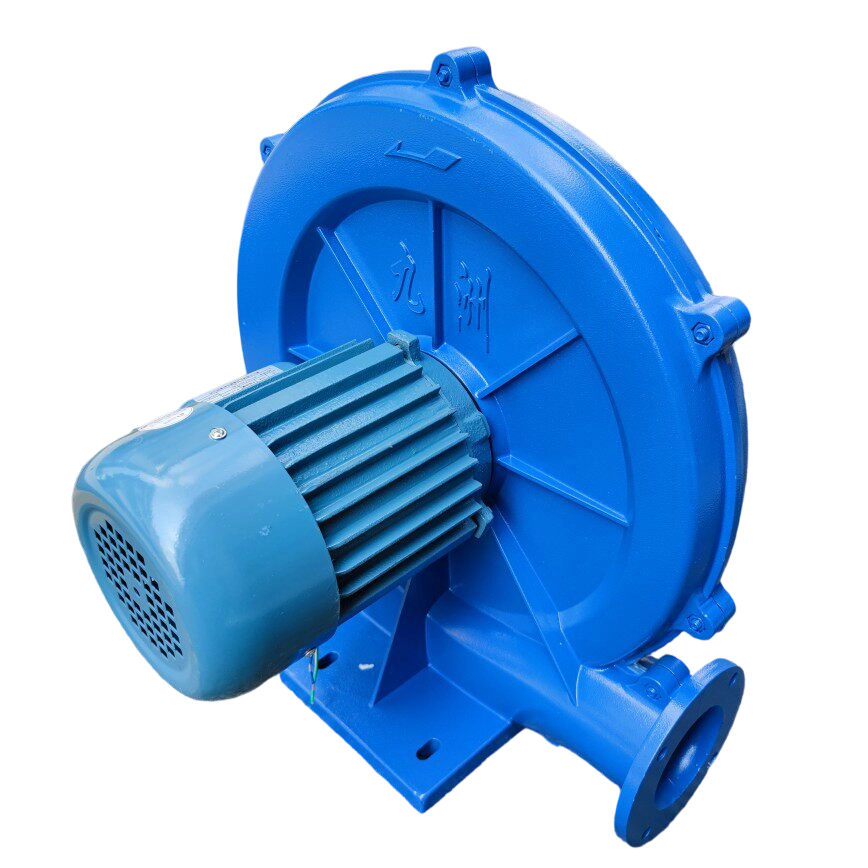

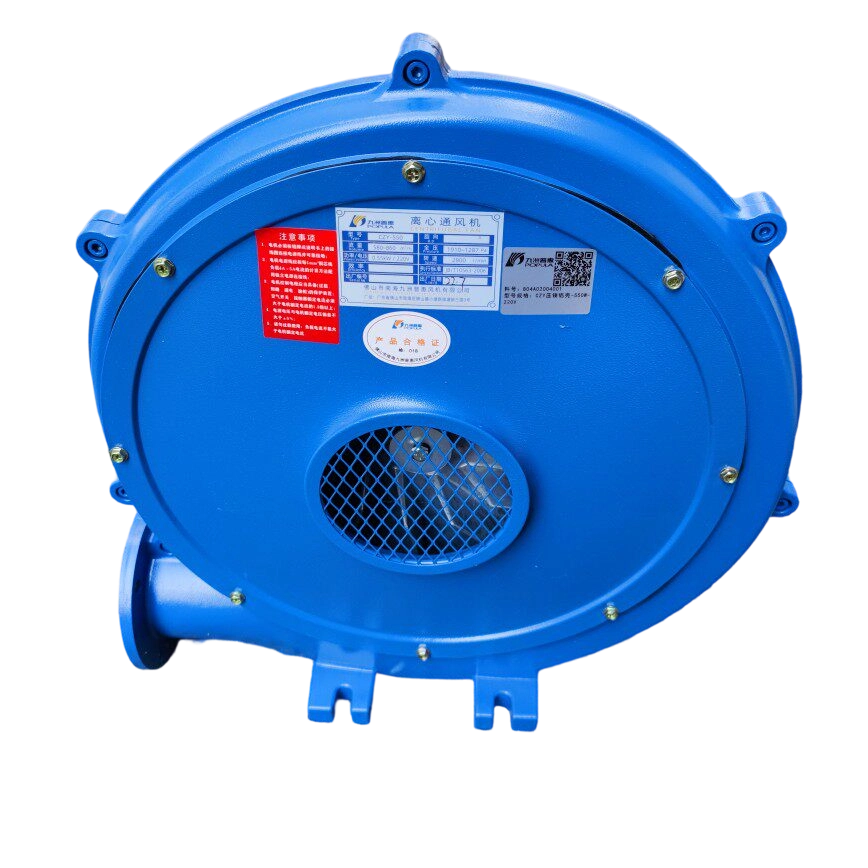

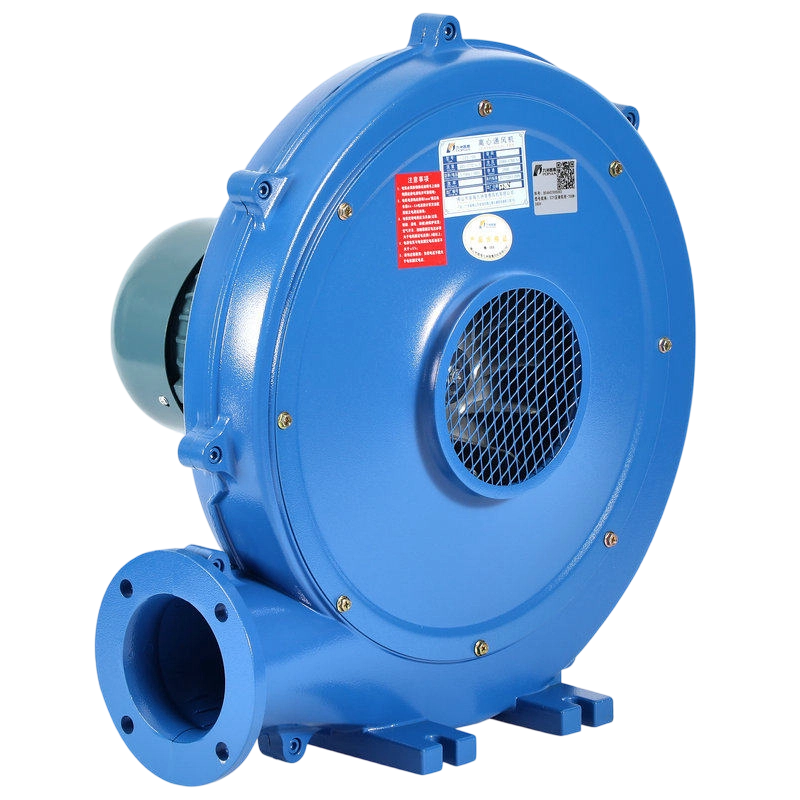

CZY Series

Model(Nº) Power(kW) Voltage(V) Rotation(r/min) Volume(m³/h) Pressure(Pa)
CZY-180 0.18 220/380 2800 115~390 940~721
CZY-250 0.25 220/380 2800 165~410 1044~743
CZY-370 0.37 220/380 2800 342~630 1748~1295
CZY-550 0.55 220/380 2800 580~860 1910~1287
CZY-750 0.75 220/380 2800 685~1170 2080~1760
CZY-900 0.9 220/380 2800 821~1320 2140~1967
CZY-1100 1.1 220/380 2800 742~1404 2180~1870
CZY-I-1500 1.5 220 2900 870~1750 2210~1475
CZY-I-1500 1.5 380 2900 870~1750 2210~1475
CZY-II-1500 1.5 220 2900 870~1750 2210~1475
CZY-II-1500 1.5 380 2900 870~1750 2210~1475
CZY-I-2200 2.2 220 2900 1020~1790 2330~1580
CZY-I-2200 2.2 380 2900 1020~1790 2330~1580
CZY-II-2200 2.2 220 2900 1020~1790 2330~1580
CZY-II-2200 2.2 380 2900 1020~1790 2330~1580
CZY-I-3000 3 380 2900 1500~2480 2830~1995
CZY-II-3000 3 380 2900 1500~2480 2830~1995
CZY-I-4000 4 380 2900 1600~3028 3545~2995
CZY-II-4000 4 380 2900 1600~3028 3545~2995

Dimensions

CZY Type Medium Pressure Ventilator Dimension Chart

Dimension CZY-180 CZY-250 CZY-370 CZY-550 CZY-750 CZY-900 CZY-1100
L1 267.5 282.5 286 306 342 (Single-phase)/322 (Three-phase) 342 342
L2 56.5 56.5 71 71 81 81 81
L3 79 79 116 116 132 132 132
L4 90 90 135 135 152 152 152
L5 15 15 20 20 20 20 20
L6 135 135 185 185 220 220 220
L7 162 162 205 205 225 225 225
L8 350 350 440 440 470 470 470
H1 130 130 162 162 160 160 160
H2 185 185 232 232 240 240 240
H3 368 368 457 457 475 475 475
H4 115 115 170 170 182 182 182
H5 70 70 115 115 131 131 131
H6 12 12 12 12 12 12 12
H7 — — 115 115 131 131 131
D1 Ø10 Ø10 Ø10 Ø10 Ø12 Ø12 Ø12
D2 Ø110 Ø110 Ø130 Ø130 Ø150 150 150
D3 Ø93 Ø93 Ø110 Ø110 Ø125 125 125
D4 Ø65 Ø65 Ø75 Ø75 Ø95 95 95
D5 Ø55 Ø55 Ø65 Ø65 Ø85 85 85
D6 Ø100 Ø100 Ø110 Ø110 Ø130 130 130
R R5 R5 R5 R5 R6 R6 R6
A×B 20×10 20×10 20×10 20×10 24×12 24×12 24×12

CZY-I Type Medium Pressure Ventilator Dimension Chart

Dimension CZY-I-1500 CZY-I-2200 CZY-I-3000 CZY-I-4000
L1 443 478 515 520
L2 172 172 175 175
L3 145 145 159 159
L4 60 60 64 64
L5 232 232 252 252
L6 117.5 117.5 120 120
L7 60 60 63 63
L8 565 565 596 596
L9 276 276 280 280
L10 191 191 201 201
L11 30 30 28 28
H1 548 548 573 573
H2 300 300 308 308
H3 95 95 108 108
H4 235 235 240 240
H5 135 135 170 170
H6 162 162 170 170
H7 18 18 20 20
D1 Ø130 Ø130 Ø150 Ø150
D2 Ø136 Ø136 Ø160 Ø160
D3 Ø115 Ø115 Ø130 Ø130
D4 Ø121 Ø121 Ø136 Ø136
D5 Ø180 Ø180 Ø190 Ø190
D6 Ø13 Ø13 — —
A×B — — 20×40 20×40

CZY-11 Type Medium Pressure Ventilator Dimension Chart

Dimension CZY-II-1500 CZY-II-2200 CZY-II-3000 CZY-II-4000
L1 510 545 598 603
L2 172 172 175 175
L3 216 216 242 242
L4 131 131 147 147
L5 105 105 119 119
L6 232 232 252 252
L7 117.5 117.5 120 120
L8 60 60 63 63
L9 565 565 596 596
L10 276 276 280 280
L11 191 191 201 201
L12 30 30 28 28
H1 548 548 573 573
H2 300 300 308 308
H3 95 95 108 108
H4 235 235 240 240
H5 135 135 170 170
H6 162 162 170 170
H7 18 18 20 20
D1 Ø120 Ø120 Ø150 Ø150
D2 Ø115 Ø115 Ø130 Ø130
D3 Ø121 Ø121 Ø136 Ø136
D4 Ø180 Ø180 Ø190 Ø190
D5 Ø13 Ø13 — —
A×B — — 20×40 20×40

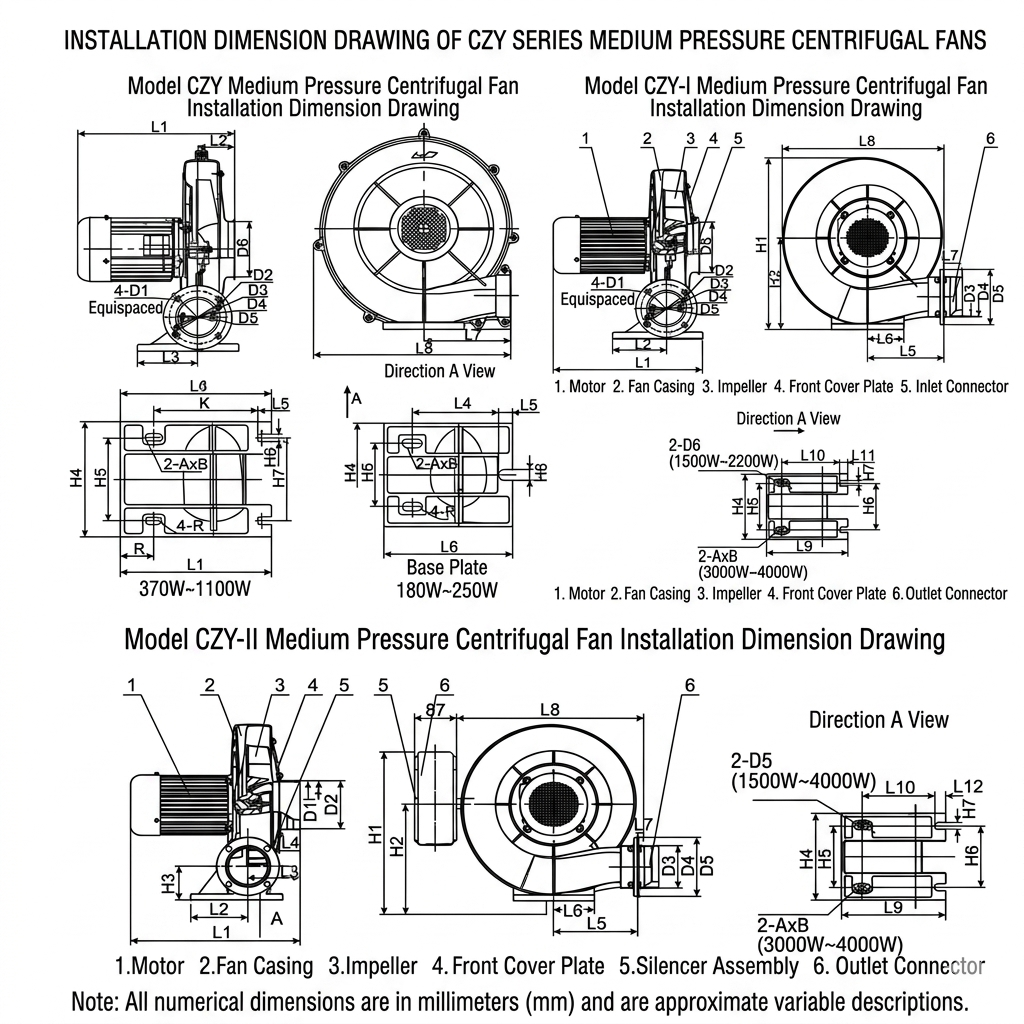

Technical Illustration
