Centrifugal Fans
Overview Backward-curved centrifugal fan for ventilation in factories, warehouses and general buildings, and for transporting non-corrosive gas. Typical Applications Typical applications include ventilation in factories, warehouses…
Overview

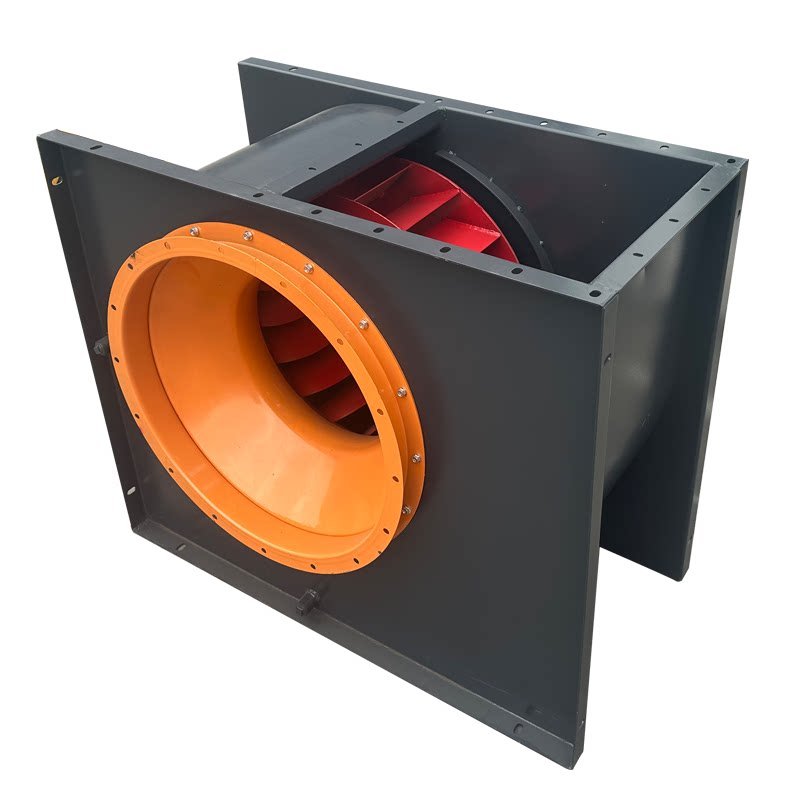

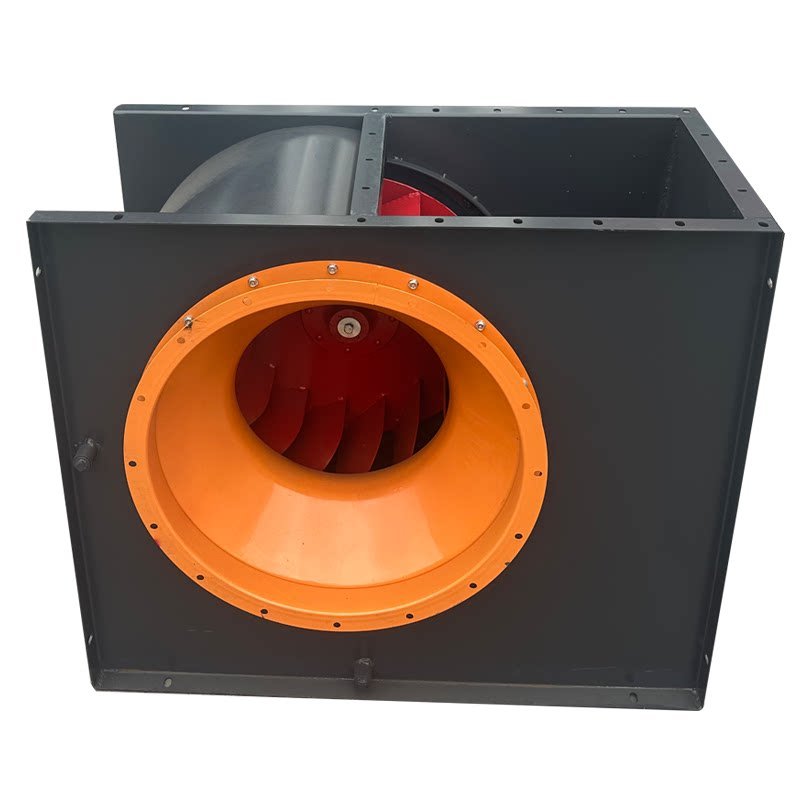

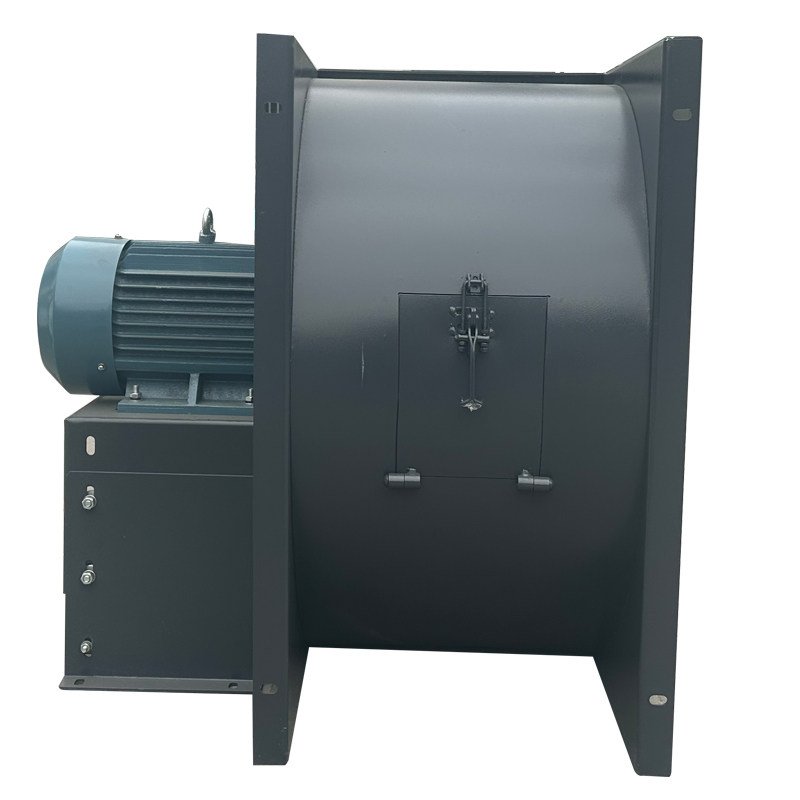

Overview Backward-curved centrifugal fan for ventilation in factories, warehouses and general buildings, and for transporting non-corrosive gas. Typical Applications Typical applications include ventilation in factories, warehouses and general buildings, and for transporting non-corrosive gas. Selection Notes Confirm the installation layout, operating medium and required airflow duty against the relevant product catalogue before selection.
Technical Parameters
| Model(No) | Power(kW) | Voltage(V) | Rotation(r/min) | Volume(m³/h) | Pressure(Pa) | Static pressure(Pa) |
|---|---|---|---|---|---|---|
| 4A | 1.5 | 380 | 1450 | 2879~5758 | 533~346 | 502~221 |
| 4.5A | 2.2 | 380 | 1450 | 4099~8189 | 675~438 | 635~280 |
| 5A | 3 | 380 | 1450 | 5623~11246 | 833~540 | 784~346 |
| 5.6A | 5.5 | 380 | 1450 | 7900~15800 | 1045~678 | 984~433 |
| 6A | 7.5 | 380 | 1450 | 9717~19433 | 1200~778 | 1130~498 |
| 6.3A | 11 | 380 | 1450 | 11248~22496 | 1323~858 | 1245~549 |
| 7.1A | 18.5 | 380 | 1470 | 16323~32645 | 1726~1120 | 1626~717 |
| 8A | 22 | 380 | 1470 | 19521~38465 | 1843~1196 | 1758~863 |
Overview Multi-wing centrifugal fan for continuous ventilation in hotels, shopping areas, theatres, basements and similar spaces. Typical Applications Typical applications include continuous ventilation in hotels, shopping…
View Product Details
Overview Multi-wing centrifugal fan for general ventilation in factories, hotels, shopping areas and civil buildings. Typical Applications Typical applications include general ventilation in factories, hotels, shopping…
View Product Details
Overview Centrifugal fan for carton machinery and papermaking, supporting process air supply and exhaust duties. Typical Applications Typical applications include carton machinery and papermaking, supporting process…
View Product Details
