Overview Air-purification box fan with staged filtration for offices, public buildings and general ventilation or air-conditioning systems. Typical Applications Typical applications include offices, public buildings and…
Overview

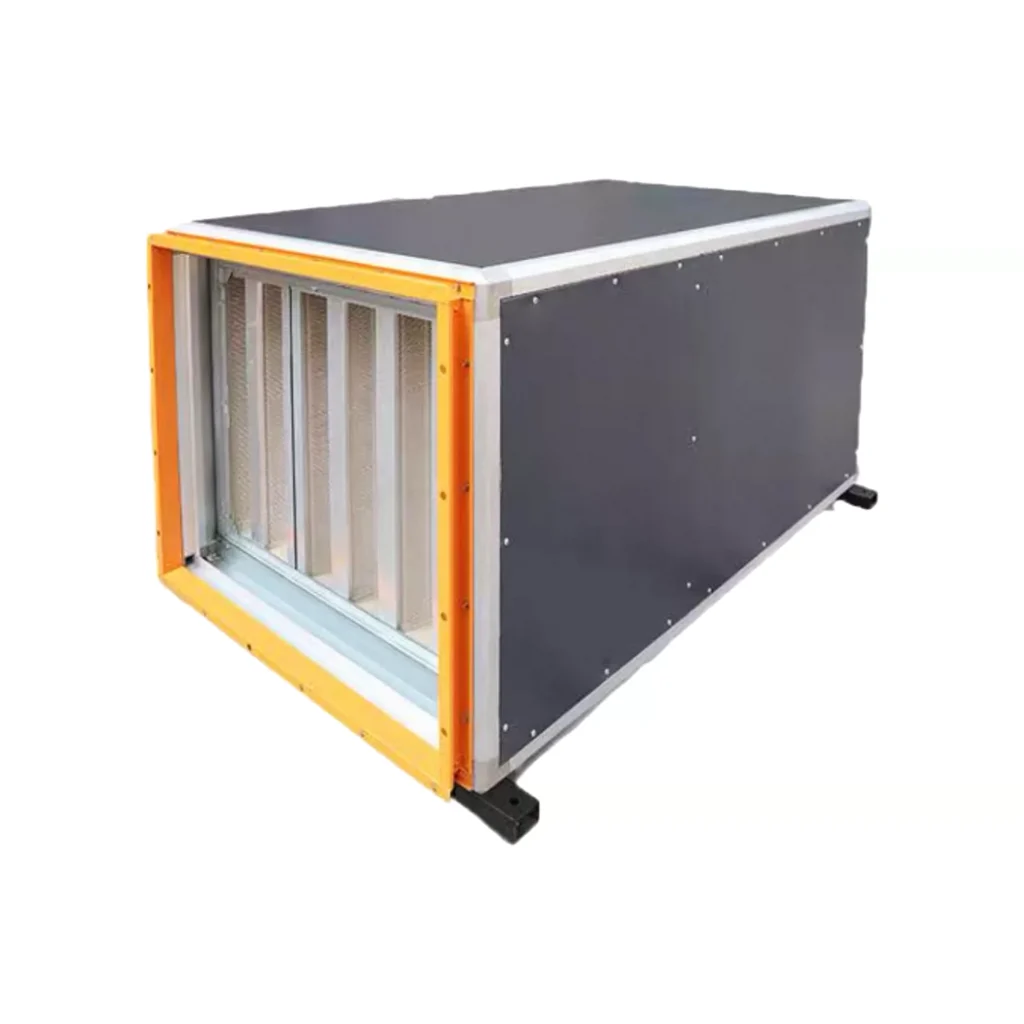

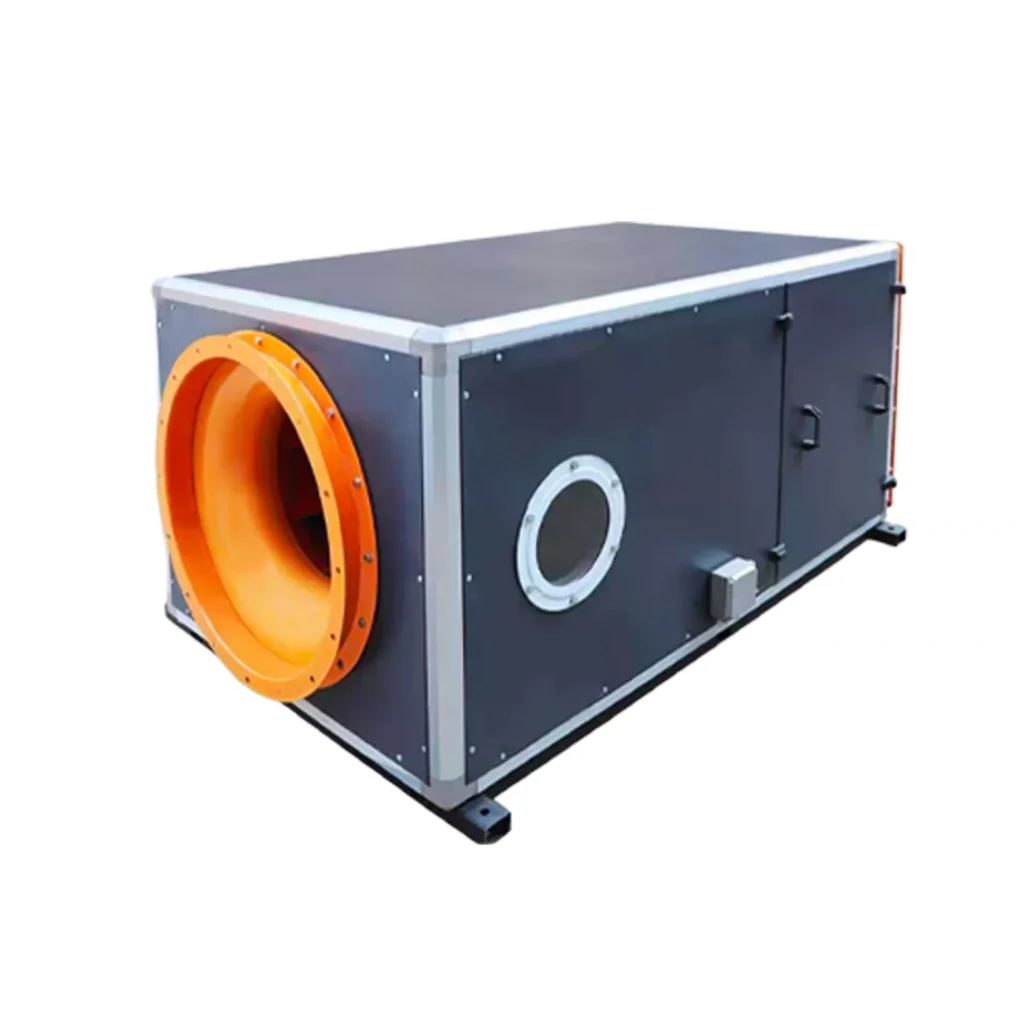

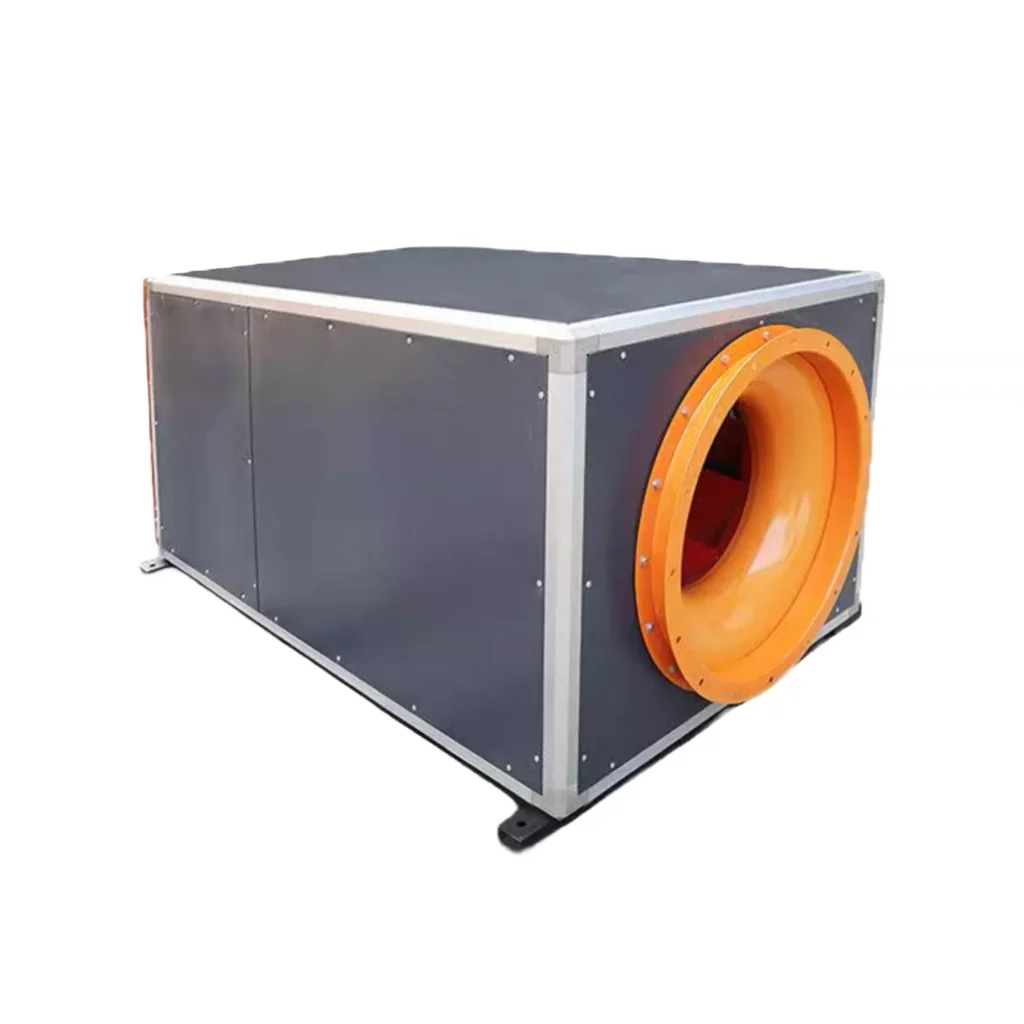

OverviewAir-purification box fan with staged filtration for offices, public buildings and general ventilation or air-conditioning systems.Typical ApplicationsTypical applications include offices, public buildings and general ventilation or air-conditioning systems.Selection NotesConfirm the installation layout, operating medium and required airflow duty against the relevant product catalogue before selection.
Technical Parameters
| Model(Nº) | Power(kW) | Voltage(V) | Rotation(r/min) | Volume(m³/h) | Pressure(Pa) | Static pressure(Pa) | Volume of filter box L×W×H | Efficiency of purification and filtration (0.5um) % |
|---|---|---|---|---|---|---|---|---|
| 3.6A | 2.2 | 380 | 2900 | 1650~2845 | 987~559 | 965~512 | 595×485×50/50/300 | 99.9 |
| 4.0A | 4 | 380 | 2900 | 1978~4540 | 1120~668 | 1074~641 | 595×485×50/50/300 | 99.9 |
| 4.5A | 5.5 | 380 | 2900 | 2543~6353 | 1338~718 | 1285~689 | 595×485×50/50/300 | 99.9 |
| 5.0A | 3 | 380 | 1450 | 2991~4731 | 482~174 | 474~165 | 940×660×50/50/300 | 99.9 |
| 5.6A | 4 | 380 | 1450 | 3552~5975 | 565~188 | 549~184 | 940×660×50/50/300 | 99.9 |
| 6.0A | 5.5 | 380 | 1450 | 4783~8680 | 696~270 | 695~267 | 1100×820×50/50/300 | 99.9 |
| 7.0A | 7.5 | 380 | 1450 | 7578~11311 | 818~360 | 807~355 | 1200×980×50/50/300 | 99.9 |
| 8.0A | 15 | 380 | 1450 | 9624~17285 | 1132~540 | 1097~485 | 1200×980×50/50/300 | 99.9 |
