High-Pressure & Material Conveying Fans

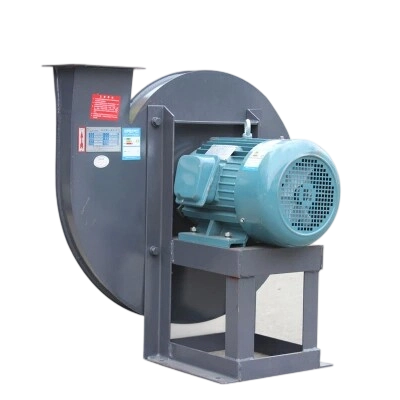

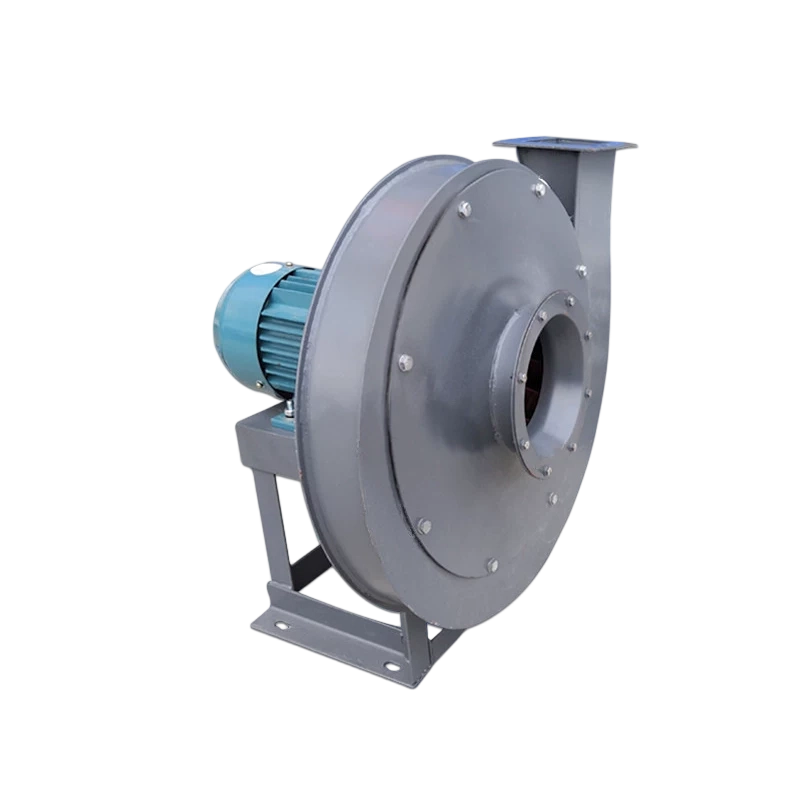

Overview High-pressure centrifugal fan for forced ventilation in forging, glass, ceramics, electroplating, battery, radio and chemical applications. Typical Applications Typical applications include forced ventilation in forging,…
Overview
OverviewHigh-pressure centrifugal fan for forced ventilation in forging, glass, ceramics, electroplating, battery, radio and chemical applications.Typical ApplicationsTypical applications include forced ventilation in forging, glass, ceramics, electroplating, battery, radio and chemical applications.Selection NotesConfirm the required pressure, operating medium and material or dust characteristics before selection.
Technical Parameters
A series
| Model(Nº) | Power(kW) | Rotation(r/min) | Volume(m³/h) | Pressure(Pa) |
|---|---|---|---|---|
| 3.5A | 1.5 | 2800 | 552~847 | 2745~2744 |
| 4A | 2.2 | 2800 | 824~1264 | 3584~3597 |
| 4A | 3 | 2900 | 1410~1704 | 3507~3253 |
| 4.5A | 4 | 2900 | 1174~2062 | 4603~4447 |
| 4.5A | 5.5 | 2900 | 2281~2504 | 4297~4112 |
| 5A | 7.5 | 2900 | 1610~2844 | 5697~5517 |
| 5A | 11 | 2930 | 3166~3488 | 5323~5080 |
| 5.6A | 11 | 2930 | 2262~3619 | 7182~7109 |
| 5.6A | 18.5 | 2930 | 3996~4901 | 6954~6400 |
| 6.3A | 18.5 | 2930 | 3220~5153 | 9149~9055 |
| 6.3A | 30 | 2950 | 5690~6978 | 8857~8148 |
| 7.1A | 7.5 | 1450 | 2305~4994 | 2872~2561 |
| 7.1A | 37 | 2950 | 4610~7376 | 11717~11596 |
| 7.1A | 55 | 2970 | 8144~9988 | 11340~10426 |
| 8A | 11 | 1450 | 3297~6484 | 3646~3407 |
| 8A | 15 | 1450 | 5275~7144 | 3584~3231 |
| 9A | 18.5 | 1450 | 4695~7511 | 4597~4551 |
| 9A | 22 | 1450 | 8294~10171 | 4453~4101 |
| 10A | 30 | 1470 | 6440~12450 | 5840~5495 |
| 10A | 37 | 1480 | 13952~15455 | 5244~4958 |
| 11.2A | 18.5 | 960 | 5990~11580 | 3182~2996 |
| 11.2A | 22 | 970 | 12978~14375 | 2860~2705 |
| 11.2A | 55 | 1480 | 9047~15380 | 7364~7236 |
| 11.2A | 75 | 1480 | 17491~21713 | 6927~6246 |
| 12.5A | 30 | 960 | 8327~19985 | 3975~3377 |
| 12.5A | 75 | 1480 | 12577~18447 | 9229~9310 |
| 12.5A | 90 | 1480 | 15512~24316 | 9390~8678 |
| 12.5A | 110 | 1480 | 21381~30186 | 9068~7822 |
| 14A | 75 | 990 | 19888~28078 | 4917~4249 |
D series
| Model(Nº) | Power(kW) | Rotation(r/min) | Volume(m³/h) | Pressure(Pa) |
|---|---|---|---|---|
| 7.1D | 37 | 2950 | 4610~7376 | 11717~11596 |
| 7.1D | 55 | 2970 | 8144~9988 | 11340~10426 |
| 8D | 75 | 2970 | 6594~11649 | 15034~14546 |
| 8D | 110 | 2980 | 12968~14287 | 14021~13362 |
| 8D | 7.5 | 1450 | 3297~4616 | 3620~3647 |
| 8D | 15 | 1450 | 5275~7144 | 3584~3231 |
| 9D | 15 | 1450 | 4695~7511 | 4597~4551 |
| 9D | 22 | 1450 | 8294~10171 | 4453~4101 |
| 10D | 30 | 1470 | 6440~12450 | 5840~5495 |
| 10D | 37 | 1480 | 13952~15455 | 5244~4958 |
| 11.2D | 75 | 1480 | 17491~21713 | 6927~6246 |
| 11.2D | 15 | 970 | 5990~11580 | 3182~2996 |
| 11.2D | 22 | 970 | 12978~14375 | 2860~2705 |
| 12.5D | 75 | 1480 | 12577~18447 | 9229~9310 |
| 12.5D | 110 | 1480 | 21381~30186 | 9068~7822 |
| 14D | 220 | 1490 | 30040~42409 | 11464~9878 |
| 14D | 75 | 990 | 19888~28078 | 4917~4249 |
| 16D | 400 | 1490 | 57150~63305 | 13808~13035 |
| 16D | 110 | 990 | 29687~41912 | 6456~5575 |
Technical Illustration
